Description

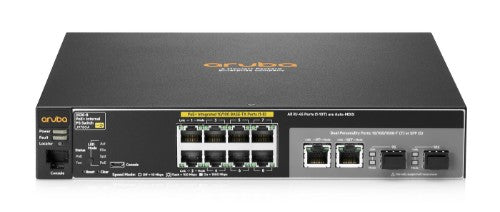

Aruba 2530 8 PoE+ Switch, Refurbished
Features
Cost-Effective, Reliable and Secure Access Layer Switches
- The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
- Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
- Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.
- Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
- Delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
Security and Quality of Service (QoS)
- The Aruba 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
- Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
- Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
- Defend your IPv6 network with DHCPv6 Protection.
Simple Deployment and Management
- The Aruba 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports.
- Quiet operation with fanless and variable speed fan models.
- Flexible deployment with wall, table, and rack mounting options.
- Zero touch provisioning (ZTP) provides quick and painless deployment at locations with few or no technical resources.
Single View of the Network
- The Aruba 2530 Switch Series supports ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Airwave Network Management software to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- Aruba Central cloud-based management platform offers simple, secure, and cost effective way to manage switches.
- Supports both cloud-based Central and on-premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure.
Description
The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified security and management tools such as Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.Features
Cost-Effective, Reliable and Secure Access Layer Switches
- The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.
- Fully managed switches deliver full Layer 2 capabilities with optional PoE+, 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, and IPv6 host support.
- Right size deployment with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks.
- Power savings with fanless models, Energy Efficient Ethernet (IEEE 802.3az), and ability to disable LEDs and enable port low power mode.
- Delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
Security and Quality of Service (QoS)
- The Aruba 2530 Switch Series supports flexible authentication methods including Local MAC, 802.1X, and MAC and Web for greater policy-driven application security.
- Advanced denial of service (DOS) protection, such as DHCP Protection, Dynamic ARP protection, and Dynamic IP lockdown, enhance security. Flexible traffic controls include ACLs and QoS.
- Traffic prioritization with IEEE 802.1p allows real-time traffic classification with support for eight priority levels mapped to either two or four queues using weighted deficit round robin (WDRR) or strict priority (SP).
- Defend your IPv6 network with DHCPv6 Protection.
Simple Deployment and Management
- The Aruba 2530 Switch Series supports a choice of management interfaces with Web GUI, command-line interface (CLI), and SNMP with either console or micro USB ports.
- Quiet operation with fanless and variable speed fan models.
- Flexible deployment with wall, table, and rack mounting options.
- Zero touch provisioning (ZTP) provides quick and painless deployment at locations with few or no technical resources.
Single View of the Network
- The Aruba 2530 Switch Series supports ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Airwave Network Management software to provide common platform for Zero-Touch Provisioning management, and monitoring for wired and wireless network devices.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
- Aruba Central cloud-based management platform offers simple, secure, and cost effective way to manage switches.
- Supports both cloud-based Central and on-premise AirWave with the same hardware ensuring change of management platform without ripping and replacing switching infrastructure.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Cloud-managed | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 512 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Half duplex | Yes |
| Data transmission | |
| Jumbo frames | 9220 |
| Throughput | 4.1 Mpps |
| Latency (10-100 Mbps) | 1.3 µs |
| Latency (1 Gbps) | 1.3 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 5.6 Gbit/s |
| Jumbo frames support | Yes |
| Number of VLANs | 512 |
| Security | |
| Authentication | MAC-based authentication, Web-based authentication |
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS, TACACS+ |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Processor frequency | 800 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Packet buffer memory | 1.5 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 76.7 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 67 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 29 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 512 |
| Weight & dimensions | |
| Width | 254 mm |
| Depth | 159.5 mm |
| Height | 44.5 mm |
| Weight | 910 g |
| Technical details | |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
