Description
FiberLert Detector, 850 - 1625 nm, SM, MM, UPC, APC, -30 - 3 dBm, 2xAAA, -10 °C - 50 °C, ≤ 3000 Altitude, m 1.6 x 2.5 x 16.8 cm, 59g

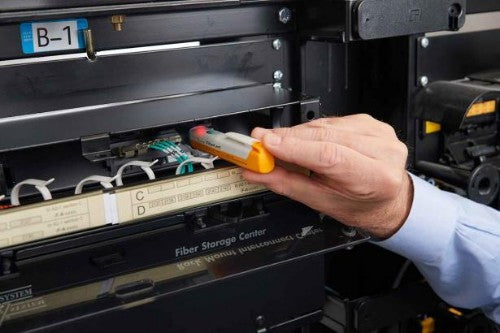

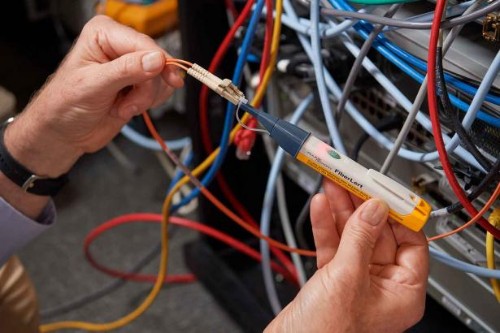

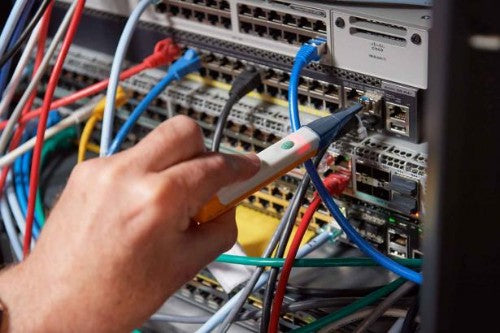

Just place in front of the fiber end face or port and a light and tone indicate an active fiber (850 nm to 1625 nm) - no setup or interpretation required.
This pocket-sized tool tests:
- Single-mode
- Multimode
- UPC and APC patch cords
- Ports with a non-contact / non-contaminating detector
The LightBeat™ feature flashes the LED, indicating a powered-on condition and good battery and a timer shuts FiberLert™ Detector off after five minutes of inactivity to extend battery life (2xAAA, included). Rugged design includes a convenient pocket clip and is backed by a two-year warranty.
Key Features
- Detects optical power in SM and MM fiber (850 to 1625 nm)
- No setup or interpretation – light and sound indicate signal
- “Non-contact” detector reduces risk of contamination and damage
- Suitable for ports and patch cords, SM, MM, UPC and APC
- LightBeat feature indicates operation and battery status
Description
Quickly check fiber activity, polarity, and connectivityJust place in front of the fiber end face or port and a light and tone indicate an active fiber (850 nm to 1625 nm) - no setup or interpretation required.
This pocket-sized tool tests:
- Single-mode
- Multimode
- UPC and APC patch cords
- Ports with a non-contact / non-contaminating detector
The LightBeat™ feature flashes the LED, indicating a powered-on condition and good battery and a timer shuts FiberLert™ Detector off after five minutes of inactivity to extend battery life (2xAAA, included). Rugged design includes a convenient pocket clip and is backed by a two-year warranty.
Specifications
| Features | |
|---|---|
| Product type | Optical power meter |
| Supported connectors | LC |
| Easy to use | Yes |
| Auto shut-off delay time | Yes |
| Wavelength range | 850 - 1625 nm |
| Power range | -30 - 3 dBm |
| Built-in display | No |
| Fiber mode structure | Multi-mode, Single-mode |
| LED indicators | Yes |
| Product colour | Blue, White, Yellow |
| Power | |
| Battery type | AAA |
| Battery technology | Alkaline |
| Number of batteries supported | 2 |
| Certificates | |
| Compliance certificates | Federal Communications Commission (FCC), KCC |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 16 mm |
| Depth | 168 mm |
| Height | 25 mm |
| Weight | 59 g |
| Packaging content | |
| Manual | Yes |
| Batteries included | Yes |
| Technical details | |
| Product type | Optical power meter |
| Supported connectors | LC |
| Easy to use | Yes |
| Auto shut-off delay time | Yes |
| Wavelength range | 850 - 1625 nm |
| Power range | -30 - 3 dBm |
| Built-in display | No |
| Fiber mode structure | Multi-mode, Single-mode |
| LED indicators | Yes |
| Product colour | Blue, White, Yellow |
| Compliance certificates | Federal Communications Commission (FCC), KCC |
| Logistics data | |
| Country of origin | United Kingdom |
