VDSL, g.fast , 10/100/1000 Mbps, 106MHz and 212MHz, 1,5Gbit/s
Description

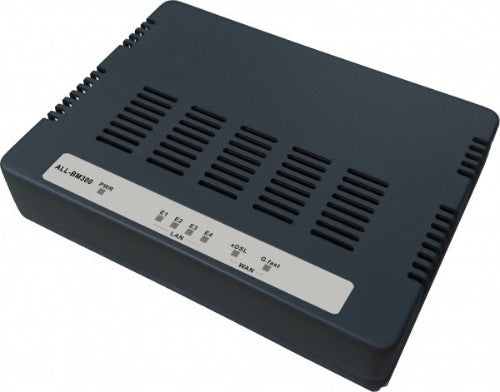

The ALLNET ALL-BM300 is a multi VDSL2 & G.fast Bridge Modem, which allows you to access the VDSL2
Internet in a fast and easy way. The modem is simply connected to a broadband router, firewall PC or MAC, no
further settings are necessary (for VLAN settings a VLAN ID can be configured in the web interface). Only your
router/firewall/PC etc. needs to be connected to the LAN port/connection.
It is ITU-T compliant and complies with the G.9700/9701 standard and supports the G.fast 106/212 double wave
profile. The bandwidth is up to 1 Gbps symmetrical data transmission and is perfectly suited for FTTpd/FTTN
applications. The ALL-BM300 is a cost-effective solution that provides end users with high-speed Internet access
over existing copper wire infrastructure. ALL-BM300 is also backward compatible with VDSL2 Super-Vectoring
Profile 35b and VDSL2 Profile 17A.
Specifications
| Modem |
|---|
| Product colour |
Black |
| VDSL2 |
Yes |
| VDSL |
Yes |
| Modem speed |
100000 Kbit/s |
| Interface |
ISP |
| Modem type |
point-to-point modem |
| Antenna type |
Internal |
| Data transmission |
|---|
| Supported data transfer rates |
10/100 / 1000 |
| Network |
|---|
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| MAC address filtering |
Yes |
| Compliance industry standards |
ITU-T G993.2 VDSL2, ITU-T G998.4 G.INP, ITU-T G.9700 / G.9701 G.fast |
| Protocols |
|---|
| Supported network protocols |
HTTP / HTTPS |
| Ports & interfaces |
|---|
| USB ports quantity |
2 |
| Modem (RJ-11) ports |
2 |
| Ethernet LAN (RJ-45) ports |
4 |
| DC-in jack |
Yes |
| Cabling technology |
10/100 |
| Features |
|---|
| Switch type |
Managed |
| Firewall security |
IPv6 |
| Compatibility |
CE, FCC, RoHS Compliant |
| Bandwidth |
1 GHz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Power |
|---|
| DC input voltage |
12 V |
| Power supply type |
DC |
| Indication |
|---|
| LED indicators |
Link |
| Weight & dimensions |
|---|
| Width |
146 mm |
| Weight |
400 g |
| Height |
40 mm |
| Depth |
196 mm |
| Technical details |
|---|
| Width |
146 mm |
| Switch type |
Managed |
| Supported network protocols |
HTTP / HTTPS |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Height |
40 mm |
| Firewall security |
IPv6 |
| Depth |
196 mm |
| Compatibility |
CE, FCC, RoHS Compliant |
| Cabling technology |
10/100 |
| Bandwidth |
1 GHz |
| Packaging content |
|---|
| Quick start guide |
Yes |
