Description

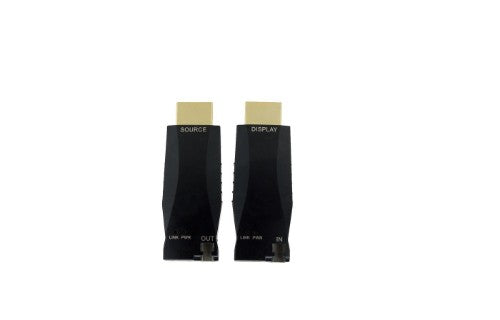

True 4K Fiber Extender dongle 300m

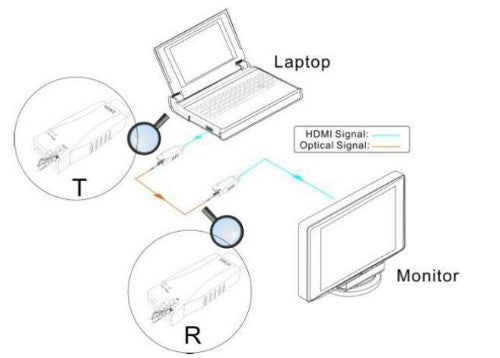

Typical installation:
4K fiber extender dongles HDMI 1:1
Single-mode fiber: HDMI signal without HDCP ≤ 2000m
Single-mode fiber: HDMI signal with HDCP ≤ 300m
Multi-mode fiber: ≤ 300m
It can be installed in building with existing fibernetwork
Long distance 4K transmission to e.g. outdoor digital signage
Function:
4K@60Hz signal expention
HDCP1.4
In box:
2 x HDMI fiber dongles
2 x USB power cables
1 x 0,5m fiber cable for test
Key Features
- 4K HDCP1.4 10.2G 4K@60Hz 4:2:0
- Multimode fiber up to 300m
- Singlemode fiber up to 300m (2km without HDCP)
Description
HDMI over fiber dongle kitTypical installation:
4K fiber extender dongles HDMI 1:1
Single-mode fiber: HDMI signal without HDCP ≤ 2000m
Single-mode fiber: HDMI signal with HDCP ≤ 300m
Multi-mode fiber: ≤ 300m
It can be installed in building with existing fibernetwork
Long distance 4K transmission to e.g. outdoor digital signage
Function:
4K@60Hz signal expention
HDCP1.4
In box:
2 x HDMI fiber dongles
2 x USB power cables
1 x 0,5m fiber cable for test
Specifications
| Features | |
|---|---|
| HDCP | Yes |
| Plug and Play | Yes |
| HDCP & EDID bypass | Yes |
| Audio formats supported | DTS, PCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Fiber |
| Maximum transfer distance | 300 m |
| Supported video modes | 2160p |
| Product colour | Black |
| Fiber optic connector | LC |
| Fiber mode structure | Multi-mode, Single-mode |
| HDCP pass-through | Yes |
| HDCP version | 1.4 |
| Technical details | |
| HDCP | Yes |
| Plug and Play | Yes |
| HDCP & EDID bypass | Yes |
| Audio formats supported | DTS, PCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Fiber |
| Maximum transfer distance | 300 m |
| Video out | 1 |
| Video in | 1 |
| Supported video modes | 2160p |
| Product colour | Black |
| Connectivity technology | Wired |
| Audio support | Yes |
| Quantity per pack | 2 pc(s) |
| Ports & interfaces | |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.3 |
| Video out | 1 |
| Video in | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Fiber optic connector | LC |
| Fiber ports quantity | 2 |
| Power | |
| Output current | 1 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Operating voltage | 5 V |
| Power source type | AC |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Receiver weight | 10 g |
| Transmitter weight | 10 g |
| Width | 130 mm |
| Transmitter dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Receiver dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Height | 2 mm |
| Depth | 84 mm |
| Weight | 26 g |
| Package weight | 200 g |
| Dimensions (WxDxH) | 120 x 80 x 55 mm |
| Packaging data | |
| Package weight | 200 g |
| Quantity per pack | 2 pc(s) |
| Packaging content | |
| Cables included | DC |
| AC adapter included | No |
| Packaging content | 1 x transmitter 1 x receiver 2 x USB-A power cable 1 x Instruction manual |
| Manual | Yes |
