Description

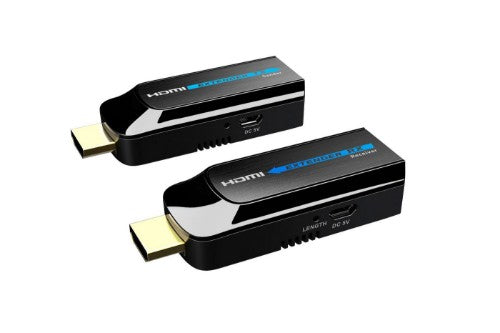

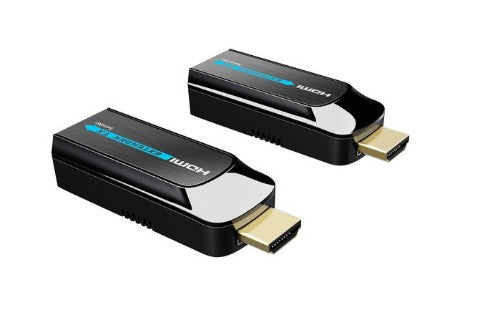

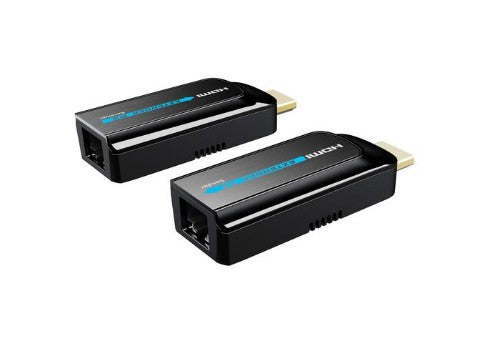

HDMI over CATx extender 50m
Typical installation:
It can be installed anywhere to extend HDMI signal up to 50m using CAT6a CAT cable
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 50m 1080P@60Hz
Key features:
Super cost-effective HDMI extender over CAT cable
USB power cables included in the package
Key Features
- Supports Full HD resolution 1080P@60 Hz
- Maximum transmission distance 50m
- PoC from transmitter to receiver
- USB power cables included in the package
Description
Ultra cost efficient HDMI extention dongles using CAT6a cable up to 50m extention. Support power over network cable (PoC) from transmitter to receiverTypical installation:
It can be installed anywhere to extend HDMI signal up to 50m using CAT6a CAT cable
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 50m 1080P@60Hz
Key features:
Super cost-effective HDMI extender over CAT cable
USB power cables included in the package
Specifications
| Features | |
|---|---|
| Material | ABS |
| HDCP & EDID bypass | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter & transceiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6a |
| Maximum transfer distance | 50 m |
| Supported video modes | 1080p |
| Product colour | Black |
| HDCP pass-through | Yes |
| HDCP version | 1.2 |
| Technical details | |
| Material | ABS |
| HDCP & EDID bypass | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV transmitter & transceiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6a |
| Maximum transfer distance | 50 m |
| Video out | 1 |
| Video in | 1 |
| Supported video modes | 1080p |
| Product colour | Black |
| Connectivity technology | Wired |
| Audio support | Yes |
| Quantity per pack | 2 pc(s) |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| Video out | 1 |
| Video in | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Fiber ports quantity | 2 |
| Power | |
| Power consumption (transmitter) (max) | 3 W |
| Power consumption (receiver) (max) | 3 W |
| Power consumption (transmitter) (max) | 3 mA |
| Output current | 1 A |
| Operating voltage (transmitter) | 5 V |
| Operating voltage (receiver) | 5 V |
| External power adapter | No |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Receiver weight | 10 g |
| Transmitter weight | 10 g |
| Width | 96.8 mm |
| Transmitter dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Receiver dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Package depth | 119 mm |
| Height | 23.7 mm |
| Depth | 94 mm |
| Package width | 153 mm |
| Package height | 80 mm |
| Weight | 318 g |
| Package weight | 320 g |
| Package dimensions (WxDxH) | 120 x 80 x 60 mm |
| Dimensions (WxDxH) | 71.35 x 25.9 x 11.05 mm |
| Packaging data | |
| Package depth | 119 mm |
| Package width | 153 mm |
| Package height | 80 mm |
| Package weight | 320 g |
| Package dimensions (WxDxH) | 120 x 80 x 60 mm |
| Quantity per pack | 2 pc(s) |
| Packaging content | |
| Cables included | USB |
| AC adapter included | No |
| Packaging content | 1 x Transmitter HDMI dongle 1 x Receiver HDMI dongle 2 x USB charge cable 1 x manual |
| Manual | Yes |
