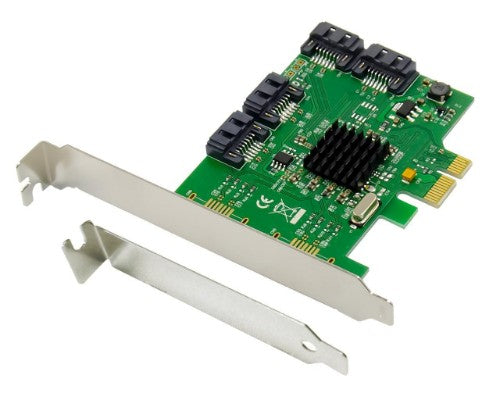

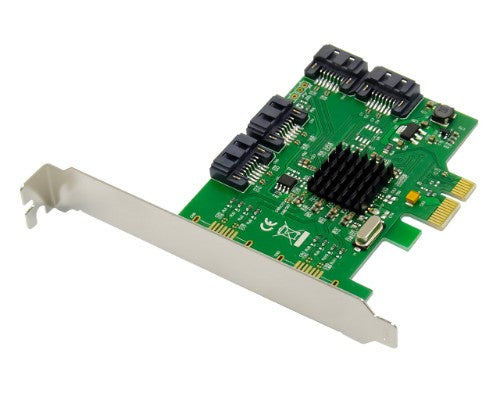

Dawicontrol DC-614E RAID BLISTER, Serial ATA, Serial ATA II, Serial ATA III, PCI Express, 0, 1, 10, JBOD, SPAN, 6 Gbit/s, Low Profile PCIe, Marvell 88SE9215
Description
Dawicontrol DC-614E RAID BLISTER. Supported storage drive interfaces: Serial ATA, Serial ATA II, Serial ATA III, Host interface: PCI Express. RAID levels: 0, 1, 10, JBOD, SPAN, Data transfer rate: 6 Gbit/s, Form factor: Low Profile PCIe. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 7, Windows 7 x64,..., Linux operating systems supported: Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14,..., Server operating systems supported: Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows.... Maximum supported storage capacity: 512 TB
Specifications
| Ports & interfaces |
|---|
| Supported storage drive interfaces |
Serial ATA, Serial ATA II, Serial ATA III |
| Host interface |
PCI Express |
| PCI Express slots version |
2.0 |
| Internal SATA ports quantity |
4 |
| Performance |
|---|
| RAID levels |
0, 1, 10, JBOD, SPAN |
| SSD support |
Yes |
| Chipset |
Marvell 88SE9215 |
| S.M.A.R.T. support |
Yes |
| RAID Level Migration |
Yes |
| Form factor |
Low Profile PCIe |
| Data transfer rate |
6 Gbit/s |
| Channels quantity |
4 channels |
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Maximum supported storage capacity |
512 TB |
| JBOD function |
Yes |
| Data transmission |
|---|
| Data transfer rate |
6 Gbit/s |
| Technical details |
|---|
| RAID levels |
0, 1, 10, JBOD, SPAN |
| SSD support |
Yes |
| Chipset |
Marvell 88SE9215 |
| S.M.A.R.T. support |
Yes |
| RAID Level Migration |
Yes |
| Form factor |
Low Profile PCIe |
| Channels quantity |
4 channels |
| Hot-Plug support |
Yes |
| Hot-swap |
Yes |
| Warranty period |
5 year(s) |
| Compliance certificates |
CE, RoHS, WEEE |
| Design |
|---|
| Form factor |
Low Profile PCIe |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Certification |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| System requirements |
|---|
| Server operating systems supported |
Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016, Windows Server 2016 x64, Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported |
Windows 10, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP Professional x64 |
| Linux operating systems supported |
Linux Kernel 5.10, Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15, Linux Kernel 5.19, Linux Kernel 5.4, Linux Kernel 5.8, Linux Kernel 5.9, Linux Kernel 6.2, Linux Kernel 6.5 |
| Packaging content |
|---|
| Manual |
Yes |
| Drivers included |
Yes |
| Other features |
|---|
| Manual |
Yes |
| Drivers included |
Yes |
| Hot-Plug support |
Yes |
| Maximum supported storage capacity |
512 TB |
