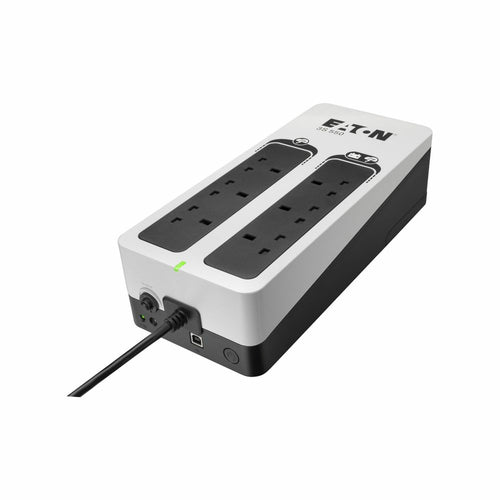

550 VA, 330W, Input : UK, Outputs :(3) UK, (3) UK surge only, USB Communication, Tower
Description
Eaton 3S Gen2 - UPS - BS (3) UK (3) UK surge only tower - AC 220/230/240 V - 330 Watt - 550 VA - 1-phase - 5 Ah - USB - output connectors: 6 - United Kingdom - black / white
Specifications
| Power |
|---|
| Output power |
330 W |
| Input operation voltage (min) |
184 V |
| Input operation voltage (max) |
264 V |
| Output operation voltage (min) |
184 V |
| Output operation voltage (max) |
264 V |
| Efficiency |
98% |
| Ports & interfaces |
|---|
| Cable length |
1.5 m |
| USB port |
Yes |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
BS 1363 |
| Performance |
|---|
| Number of output phases |
1 |
| LED indicators |
Yes |
| Noise level |
25 dB |
| Features |
|---|
| Number of output phases |
1 |
| Output power |
330 W |
| Input operation voltage (min) |
184 V |
| Input operation voltage (max) |
264 V |
| Output operation voltage (min) |
184 V |
| Output operation voltage (max) |
264 V |
| Efficiency |
98% |
| Noise level |
25 dB |
| Input frequency |
46/70 Hz |
| Auto shut-off |
Yes |
| Battery |
|---|
| Battery voltage |
12 V |
| Battery capacity |
5 Ah |
| Design |
|---|
| Form factor |
Tower |
| LED indicators |
Yes |
| Product colour |
Black, White |
| Certification |
IEC/EN 62040-1
EAC
IEC/EN 62040-2
CE |
| Cable length |
1.5 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 85% |
| Operating altitude |
0 - 2000 m |
| Weight & dimensions |
|---|
| Weight |
3.2 kg |
| Width |
325 mm |
| Height |
140 mm |
| Depth |
86 mm |
| Packaging data |
|---|
| Quick installation guide |
Yes |
| Manual |
Yes |
| Certificates |
|---|
| Certification |
IEC/EN 62040-1
EAC
IEC/EN 62040-2
CE |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Manual |
Yes |
