Description
1280x720, 50/60 fps, 1/2.8, CMOS, PoE, IP51, 380 g
Key Features
- Autofocus and WDR; Built-in analytics; Built-in cybersecurity features; PTZ with 5x optical zoom, 12x digital zoom; Zipstream with H.264/H.265
Description

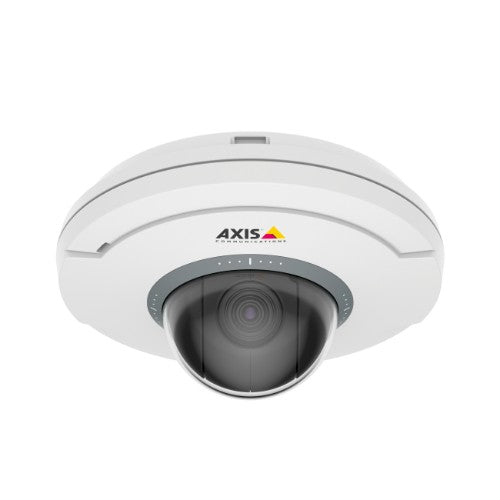

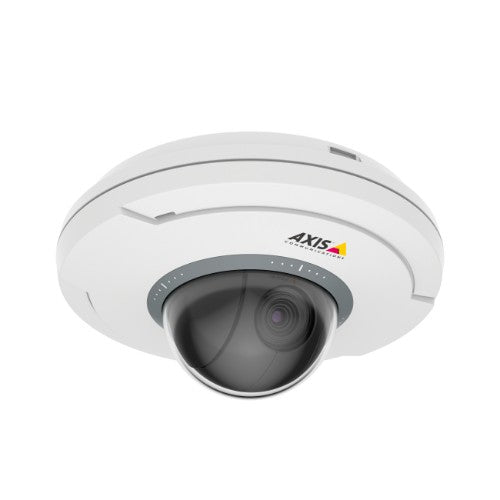

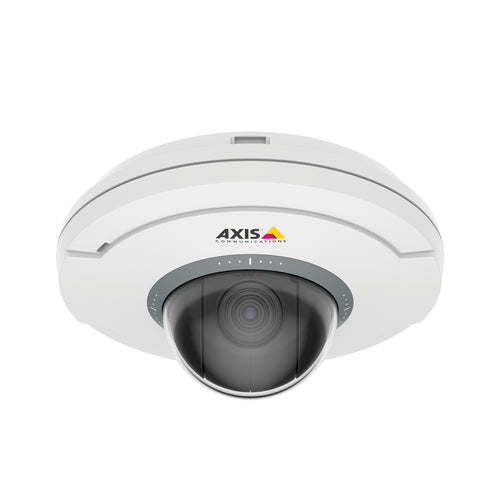

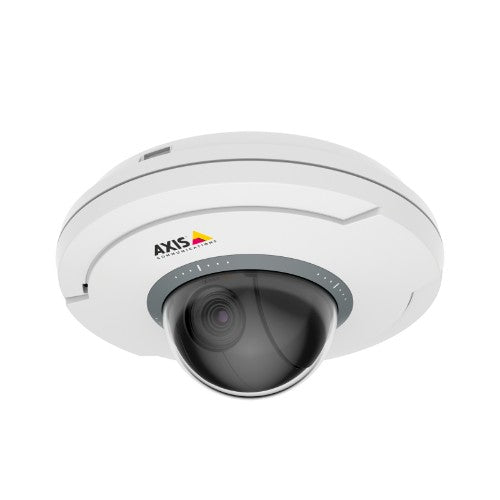

AXIS M5074 is a discreet, palm-sized PTZ camera designed to fit in anywhere. It delivers sharp, detailed video in HDTV 720p/1MP resolution. Thanks to PTZ functionality with 5x optical zoom and 12x digital zoom you can benefit from sweeping overviews and zoom in to get the details. Featuring a built-in microphone, this plug & play solution also includes analytics such as scream detection to alert you whenever a scream is detected in the camera's proximity. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system.Specifications
| Performance | |
|---|---|
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Processor model | ARTPEC-7 |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor |
| Day/night mode | Yes |
| Certification | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 IEC/EN 60529 IP51 NIST SP500-267 |
| Design | |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP51 |
| Housing material | Polyvinyl chloride (PVC) |
| Camera | |
| Minimum illumination | 0.1 lx |
| Tilt angle range | 0 - 90° |
| Tilt speed | 100 °/sec |
| Pan range | -179 - 179° |
| Pan speed | 100 °/sec |
| Camera shutter speed | 1/17000 - 2 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Auto focus | Yes |
| Zoom capability | Yes |
| Optical zoom | 5x |
| Digital zoom | 12x |
| Focal length range | 2.2 - 11.0 mm |
| Video | |
| Privacy masking | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Bit rate | Configurable bit rate |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 1280 x 720 pixels |
| Video formats supported | M-JPEG |
| Supported video modes | 720p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 1 MP |
| Video recording | Yes |
| Audio | |
| Built-in microphone | Yes |
| Audio system | 1-way |
| Audio formats supported | AAC-LC, ADPCM, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Network | |
| Bluetooth | No |
| Networking standards | IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| Video motion detection | Yes |
| Security algorithms | EAP-TLS, HTTPS, SNMP |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 9.3 W |
| Power consumption (typical) | 4.2 W |
| Certificates | |
| Certification | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 IEC/EN 60529 IP51 NIST SP500-267 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Length | 63 mm |
| Diameter | 13 cm |
| Weight | 380 g |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Other features | |
| Video compression formats | H.264, H.265 |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
