Description

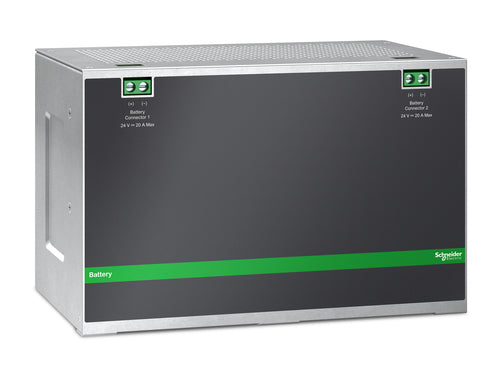

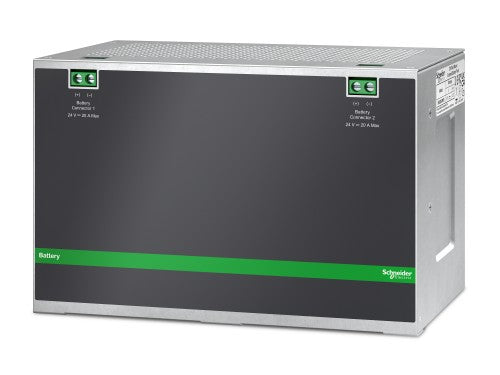

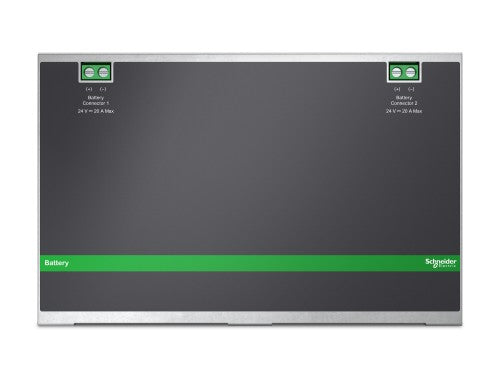

XB005XPDR External Battery Pack, DIN-Rail mounting
Standard configuration

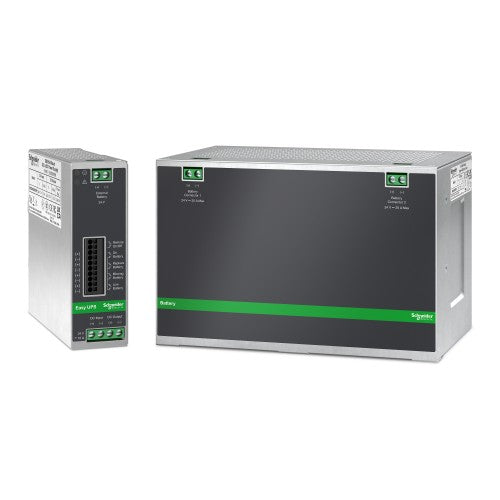

The BVS240XDPDR & BVS480XDPDR DIN-Rail Power Modules must both be equipped with at least one XB005XPDR to function as a full-fledged DIN-Rail 24V DC Uninterruptible Power Supply.

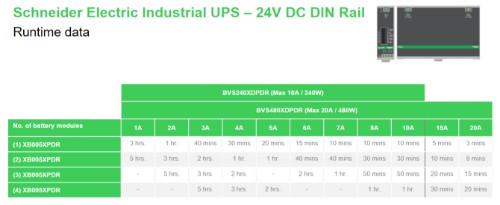

Extend runtime
By connecting two, three or max four XB005XPDR external battery packs to the associated BVS DIN-Rail Power Module instead of one, you can easily increase the number of minutes that the DIN-Rail
emergency power supply can independently supply backup power. A runtime of 30 minutes at 480 watt load is even possible.
Description
XB005XPDR External Battery Pack, DIN-Rail mountingStandard configuration
The BVS240XDPDR & BVS480XDPDR DIN-Rail Power Modules must both be equipped with at least one XB005XPDR to function as a full-fledged DIN-Rail 24V DC Uninterruptible Power Supply.
Extend runtime
By connecting two, three or max four XB005XPDR external battery packs to the associated BVS DIN-Rail Power Module instead of one, you can easily increase the number of minutes that the DIN-Rail
emergency power supply can independently supply backup power. A runtime of 30 minutes at 480 watt load is even possible.
Specifications
| Features | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 4.5 Ah |
| Battery voltage | 24 V |
| Product colour | Grey |
| Technical details | |
| Harmonized System (HS) code | 85044090 |
| Total carbon footprint (kg of CO2e) | 21.98 |
| Weight & dimensions | |
| Weight | 4.5 kg |
| Width | 192 mm |
| Height | 129 mm |
| Depth | 119 mm |
| Logistics data | |
| Harmonized System (HS) code | 85044090 |
