Description
1D/2D, 1280×800, 19 x 14 x 7.9 cm, 318 g
Ultra-rugged with new balanced ergonomics!
The PowerScan family of bar code readers are the ultimate industrial
handheld scanners designed and constructed to withstand the
toughest environmental conditions. The PowerScan PD9630 imagers
have an ultra-rugged design, an ergonomic shape with well-balanced
weight to reduce operator stress during daily activities and an intuitive
aiming system, allowing the highest first-pass reading rate while
reducing unnatural wrist movement.
Three optic options to fulfill any customer need
The PowerScan PD9630 area imagers are available in three different
optics, to satisfy any customer need. The Standard Range optic is
ideal for most of the applications requiring barcode reading at intuitive
distance; the High Performance optic adds the capability to decode
high density barcodes together with an increased depth of field on
standard 1D/2D codes; the Document Capture model is thought for
Wide Angle code reading and Document Capture applications.
The best feedback to the operator
The PD9630 area imagers also feature Datalogic’s exclusive 3 Green
Lights (3GL™) for superior good-read feedback together with a loud
beeper and vibration. The ‘Green Spot’ technology directly on the
code and dual Good Read LEDs increase visibility at any angle. All
models have multi-interface capabilities featuring the most popular
interfaces: RS-232, USB and offer an optional Ethernet for standard or
industrial uses.
Datalogic’s Motionix™ motion-sensing technology detects the natural
actions of the operator to automatically switch the scanner into the
desired scanning mode (handheld or presentation scanning).
Key Features
- Snappy omnidirectional reading from contact to over 2.0 m / 6.5 ft
- Datalogic’s new instinctive ‘frame’ aimer
- Water and Particulate Sealing Rating: IP65 and IP67
- 10 million trigger hits
- White light illumination
- Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good-read feedback
- Datalogic’s Motionix™ motion-sensing technology
- Ergonomic shape provides hours of tireless data collection for the user
- Supports 1D, stacked and 2D codes, postal codes and image capture
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Description

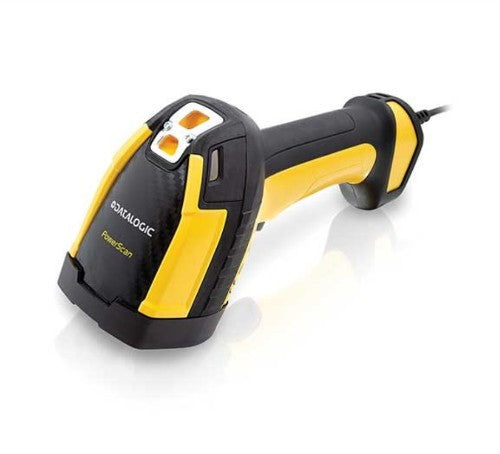

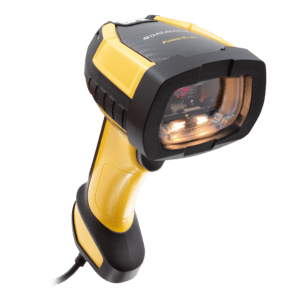

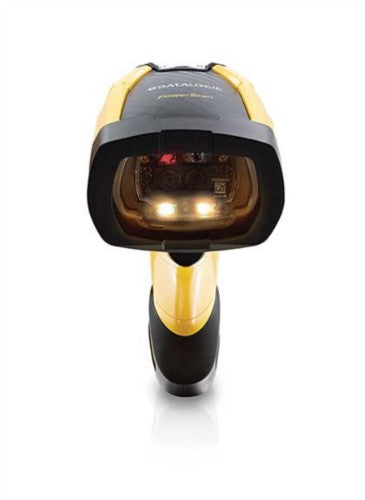

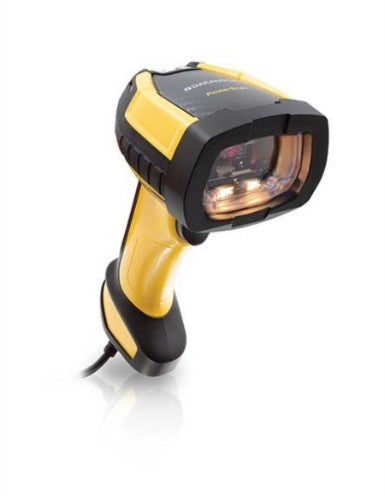

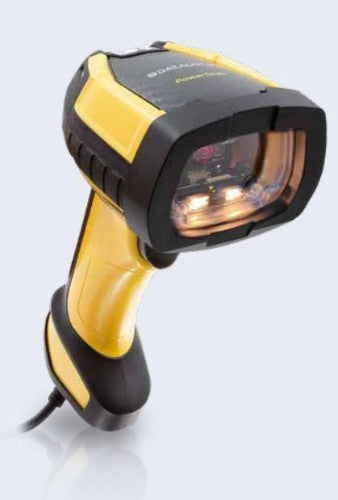

PowerScan PD9630-HP, High Performance, USB/RS-232 Multi-InterfaceUltra-rugged with new balanced ergonomics!
The PowerScan family of bar code readers are the ultimate industrial
handheld scanners designed and constructed to withstand the
toughest environmental conditions. The PowerScan PD9630 imagers
have an ultra-rugged design, an ergonomic shape with well-balanced
weight to reduce operator stress during daily activities and an intuitive
aiming system, allowing the highest first-pass reading rate while
reducing unnatural wrist movement.
Three optic options to fulfill any customer need
The PowerScan PD9630 area imagers are available in three different
optics, to satisfy any customer need. The Standard Range optic is
ideal for most of the applications requiring barcode reading at intuitive
distance; the High Performance optic adds the capability to decode
high density barcodes together with an increased depth of field on
standard 1D/2D codes; the Document Capture model is thought for
Wide Angle code reading and Document Capture applications.
The best feedback to the operator
The PD9630 area imagers also feature Datalogic’s exclusive 3 Green
Lights (3GL™) for superior good-read feedback together with a loud
beeper and vibration. The ‘Green Spot’ technology directly on the
code and dual Good Read LEDs increase visibility at any angle. All
models have multi-interface capabilities featuring the most popular
interfaces: RS-232, USB and offer an optional Ethernet for standard or
industrial uses.
Datalogic’s Motionix™ motion-sensing technology detects the natural
actions of the operator to automatically switch the scanner into the
desired scanning mode (handheld or presentation scanning).
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 128, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Yaw reading angle | -52 - 52° |
| Working distance | 20 cm |
| Wavelength | 630 nm |
| Tilt reading angle | 0 - 360° |
| Scanner type | 1D/2D |
| Pitch reading angle | -52 - 52° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
| Performance | |
| Protection features | Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Yellow |
| Buzzer | Yes |
| Print contrast | 15% |
| Vibration function | Yes |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Yellow |
| Power | |
| Power consumption | 280 mA |
| Power source type | RS-232, USB |
| Input voltage | 5 - 30 V |
| Weight & dimensions | |
| Width | 79 mm |
| Depth | 140 mm |
| Height | 198 mm |
| Weight | 318 g |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Dirt resistant, Drop proof, Dust resistant, Electrostatic Discharge (ESD) protection, Water resistant |
| LED indicators | Yes |
| International Protection (IP) code | IP65, IP67 |
| Product colour | Black, Yellow |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | REACH, RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
