(2) 10G SFP+ ports, (9) GbE RJ45 ports, 1U, 210.4 x 140.2 x 43.7 mm
Key Features
- (2) 10G SFP+ ports
- (9) GbE RJ45 ports
- Powered by an external AC/DC adapter (included)
- Compact, durable metal casing
- 1U rack or wall-mountable (kits included)
- Easy, Bluetooth-powered setup via the UISP Mobile app
- Pre-installed UISP application
Description

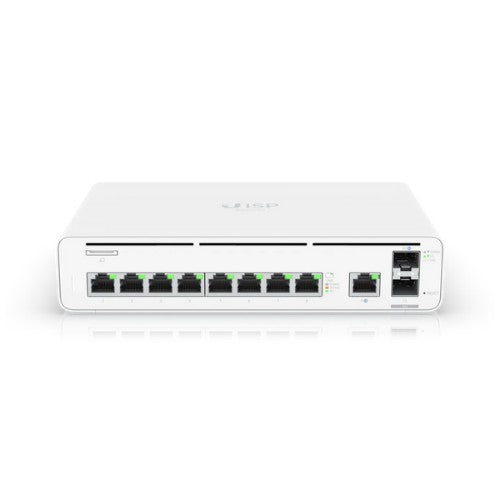

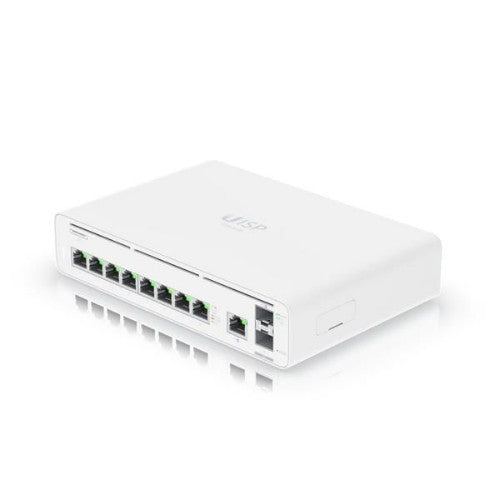

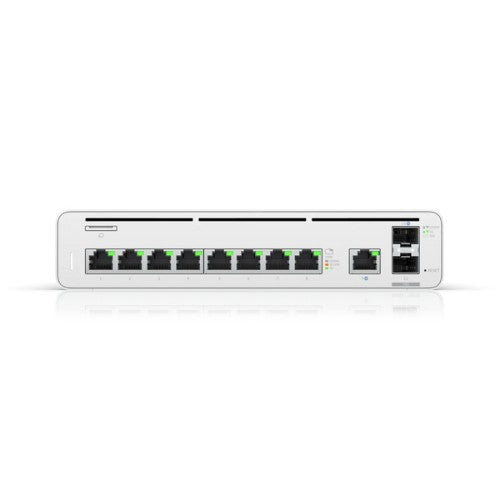

The UISP® Console is designed to support small to moderate UISP deployments with its built-in switch equipped with (8) GbE RJ45 LAN ports. The UISP Console also serves as a high-performance gateway with (1) 10G SFP+ LAN port and (2) WAN ports (10G SFP+ and GbE RJ45) that provide an ample connectivity range capable of supporting the most data-intensive deployments.
Specifications
| Design |
|---|
| LED indicators |
Yes |
| Certification |
CE, FCC, IC |
| Rack capacity |
1U |
| Product colour |
White |
| Enclosure material |
Metal |
| Performance |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1700 MHz |
| Number of processors installed |
1 |
| Internal memory type |
DDR4 |
| Internal memory |
4 MB |
| Flash memory |
16000 MB |
| Control display unit |
No |
| Processor model |
Cortex-A57 |
| Processor family |
ARM Cortex |
| SSD capacity |
128 GB |
| Certification |
CE, FCC, IC |
| Rack capacity |
1U |
| Product colour |
White |
| Enclosure material |
Metal |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
8 |
| Power |
|---|
| Input voltage |
24 - 28 V |
| Power consumption (max) |
30 W |
| Weight & dimensions |
|---|
| Weight |
1.45 kg |
| Width |
210.4 mm |
| Height |
43.7 mm |
| Depth |
140.2 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Technical details |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1700 MHz |
| Number of processors installed |
1 |
| Indication |
|---|
| LED indicators |
Yes |
| Memory |
|---|
| Internal memory type |
DDR4 |
| Internal memory |
4 MB |
| Flash memory |
16000 MB |
| Display |
|---|
| Control display unit |
No |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Features |
|---|
| Built-in processor |
Yes |
| Processor frequency |
1700 MHz |
| Number of processors installed |
1 |
