800-1800 RPM, PWM, RGB, 72 CFM, 20-36db, 2.1mmH2o
Description
Neon Lighting CPU Air Cooler
PWM RGB
Silent Fan
Automatic neon colors with 4-pin fan connectors. The maximum airflow can reach up to 72 CFM, providing efficient cooling performance for your CPU.

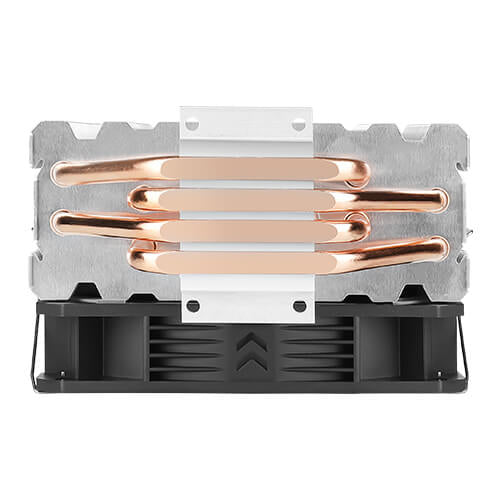

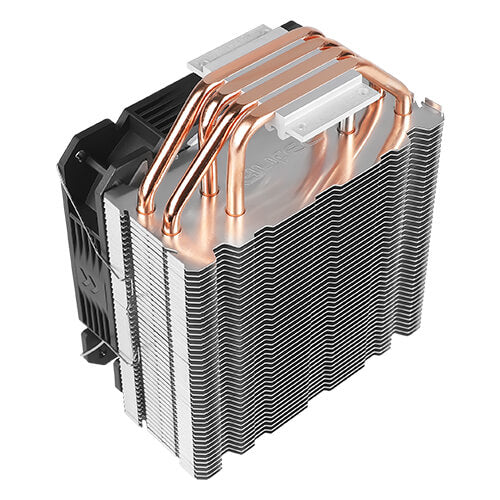

4 Direct-Touched
Copper Heat Pipes
The heat pipes can attach to the surface directly and enhance cooling.
Easy
Installation
The installation will be much easier with the metal fasten
Specifications
| Performance |
|---|
| Suitable location |
Chipset |
| Fan connector |
4-pin |
| Pulse-width modulation (PWM) support |
Yes |
| Rotational speed (min) |
800 RPM |
| Rotational speed (max) |
1800 RPM |
| Noise level (low speed) |
20 dB |
| Noise level (high speed) |
36 dB |
| Heat pipes diameter |
6 mm |
| Type |
Air cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Maximum airflow |
72 cfm |
| Maximum air pressure |
2.1 mmH2O |
| Quantity per pack |
1 pc(s) |
| Design |
|---|
| Fan connector |
4-pin |
| Material |
Aluminium |
| Illumination colour |
Multi |
| Product colour |
Black, Copper, Silver |
| Illumination LED |
Yes |
| Radiator material |
Aluminum |
| Technical details |
|---|
| Noise level (low speed) |
20 dB |
| Noise level (high speed) |
36 dB |
| Heat pipes diameter |
6 mm |
| Type |
Air cooler |
| Fan diameter |
12 cm |
| Supported processor sockets |
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Maximum airflow |
72 cfm |
| Maximum air pressure |
2.1 mmH2O |
| Material |
Aluminium |
| Fan connector |
4-pin |
| Illumination LED |
Yes |
| Ports & interfaces |
|---|
| Fan connector |
4-pin |
| Power |
|---|
| Rated voltage |
12 V |
| Rated current |
0.16 A |
| Colour |
|---|
| Product colour |
Black, Copper, Silver |
| Weight & dimensions |
|---|
| Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
| Heat pipes diameter |
6 mm |
| Width |
76 mm |
| Depth |
128 mm |
| Height |
155 mm |
| Indication |
|---|
| Illumination colour |
Multi |
| Other features |
|---|
| Harmonized System (HS) code |
84733080 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
