MeetingBoard 65"/MB65-A001 - LED-backlit LCD display - 4K - for interactive communication - Teams/Zoom/BYOD - smart whiteboard
Key Features
- All-in-one design, plug-and-play

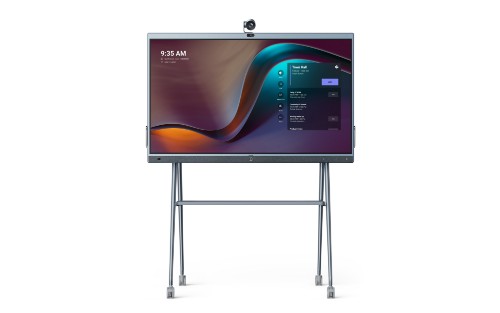

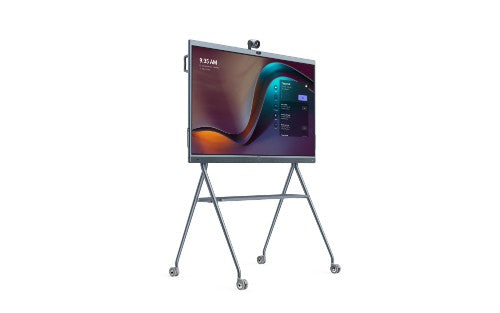

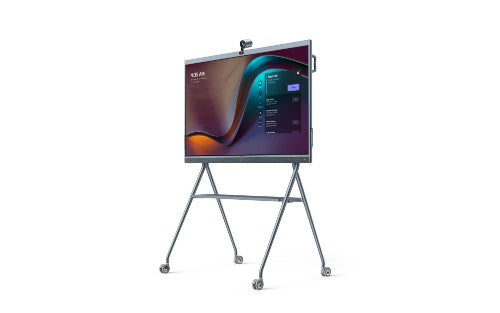

- Wall mount or with additioanl movable floor stand
- Integrated Intuitive
- Whiteboard
- Premium AI-powered View: Auto Framing, Speaker Tracking, Multi-focus Framing, Picture-in-picture, Smart Gallery (zoom)
- AI-Enhanced Noise Cancellation
- Support Teams/Zoom/BYOD
Description

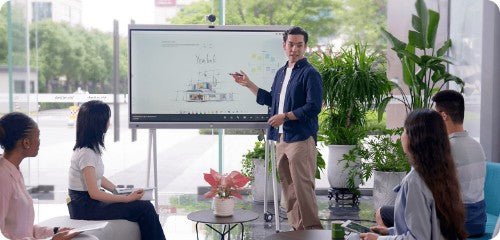

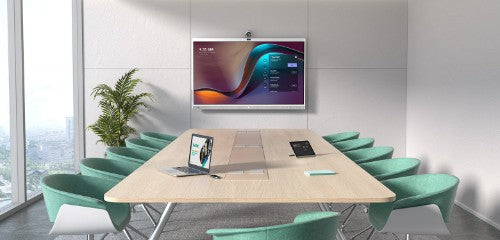

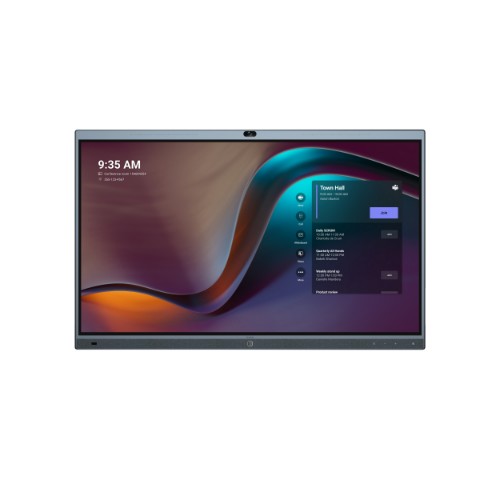

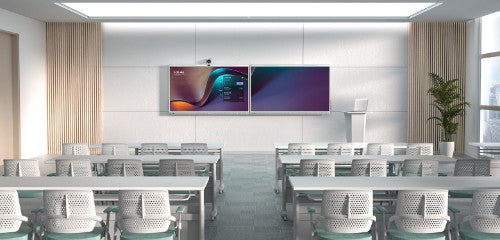

The 65-inch Yealink MeetingBoard is a versatile collaboration device suitable for various deployment needs, from open spaces to meeting rooms of different sizes. It offers an immersive audiovisual experience, featuring six speakers, a built-in 4K camera, a 4K touch display, and a 16-MEMS microphone array. Its expansive LED touchscreen display supports the demands of professional video conferencing, enabling seamless collaboration with Microsoft Teams and Zoom's native whiteboard for a digital paper writing experience.
Specifications
| Display |
|---|
| LED backlight |
Yes |
| Number of simultaneous touchpoints |
20 |
| LED backlighting type |
Direct-LED |
| Touchscreen |
Yes |
| Display technology |
LED |
| Display diagonal |
165.1 cm (65") |
| Display resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Contrast ratio (typical) |
1200:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Native aspect ratio |
16:9 |
| Anti-glare screen |
Yes |
| Maximum refresh rate |
60 Hz |
| Touchscreen technology |
Capacitive |
| Native refresh rate |
60 Hz |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| USB port |
Yes |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| DisplayPorts quantity |
0 |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
2 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| DVI port |
No |
| USB ports quantity |
3 |
| OPS module slot |
Yes |
| HDMI input ports quantity |
1 |
| HDMI output ports quantity |
1 |
| Audio |
|---|
| Number of built-in speakers |
6 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product design |
Interactive flat panel |
| Placement supported |
Indoor |
| Product colour |
Black |

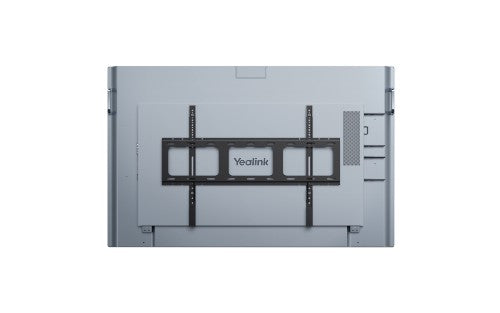

| Panel mounting interface |
600 x 400 mm |
| Certification |
FCC, REACH, ISO 9001, CCC, NOM |
| VESA mounting |
Yes |
| Anti-glare screen |
Yes |
| Fingerprint resistant |
Yes |
| Screen shape |
Flat |
| Performance |
|---|
| Purpose |
Corporate |
| PTZ control |
Yes |
| Number of microphones |
16 |
| Noise canceling |
Yes |
| Motion sensor |
Yes |
| Automatic gain control |
Yes |
| Audio beamforming |
Yes |
| Networking standards |
IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x |
| Security algorithms |
TLS, PEAP, EAP-MD5, 256-bit AES, EAP-TLS, EAP-TTLS, SRTP |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wi-Fi |
Yes |
| Power |
|---|
| Power consumption (typical) |
128 W |
| AC input voltage |
100 - 240 V |
| Input voltage |
100 - 240 V |
| Computer system |
|---|
| Computer system |
No |
| Operating system installed |
Android 10 |
| Internal storage capacity |
64 GB |
| Video formats supported |
H.264 |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Height (with stand) |
1870 mm |
| Depth (with stand) |
723 mm |
| Weight |
51 kg |
| Display width |
1490 mm |
| Display depth |
96 mm |
| Display height |
936 mm |
| Display weight |
51 kg |
| Packaging data |
|---|
| Package width |
1660 mm |
| Package depth |
280 mm |
| Package height |
1075 mm |
| Package weight |
65.7 kg |
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Manual |
Yes |
| Cables included |
AC, HDMI, LAN (RJ-45) |
| Stylus pen |
Yes |
| Number of stylus pens |
4 |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Manual |
Yes |
| Cables included |
AC, HDMI, LAN (RJ-45) |
| Stylus pen |
Yes |
| Number of stylus pens |
4 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-30 - 70 °C |
| Certificates |
|---|
| Certification |
FCC, REACH, ISO 9001, CCC, NOM |
| Technical details |
|---|
| VESA mounting |
Yes |
| USB connector type |
USB Type-A |
| Package type |
Box |
| Number of simultaneous touchpoints |
20 |
| Viewing angle |
178° |
| LED backlighting type |
Direct-LED |
| Power consumption |
14 W |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS |
| Thin Client |
|---|
| Operating system installed |
Android 10 |
| Internal storage capacity |
64 GB |
| Video formats supported |
H.264 |
| Other features |
|---|
| USB connector type |
USB Type-A |
| Package type |
Box |
| Number of simultaneous touchpoints |
20 |
| Viewing angle |
178° |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| RJ-45 ports quantity |
1 |
| Height (with stand) |
1870 mm |
| Display technology |
LED |
| Depth (with stand) |
723 mm |
| Cable lock slot |
Yes |
| Built-in microphone |
No |
| Built-in camera |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Quick start guide |
Yes |
| Aspect ratio |
16:9 |
| Manual |
Yes |
| Maximum refresh rate |
60 Hz |
| Stylus pen |
Yes |
| Number of stylus pens |
4 |
| OPS module slot |
Yes |
| Input voltage |
100 - 240 V |
| Camera resolution (numeric) |
8 MP |
| Diagonal field of view |
120° |
| Camera privacy shutter |
Yes |
