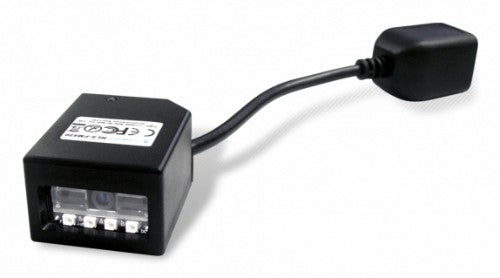

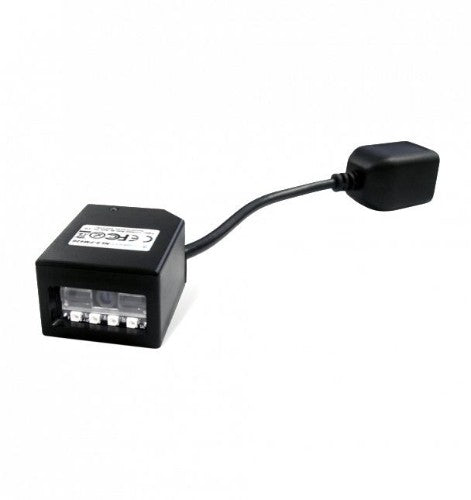

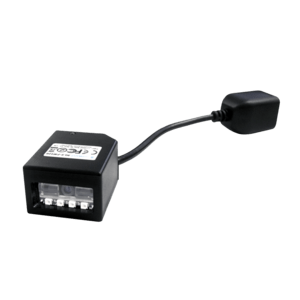

Description
1D, CCD, 628 nm, 2m USB
Designed for OEM applications, this high performance fixed CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, (Reverse) Vending Machines and many more.
Ease of integration.
Compact and easy to integrate design. The small form factor enables easy integration into various solutions. This 1D fixed barcode scanner has an IP54 rating making it dust & water resistant.
Advance Technology.
Includes core-technology, which is independently designed and manufactured by Newland Auto-ID. Technology includes the optical, CMOS, digitizer, decoder, image processing & embedded systems. The scanner supports all global standard 1D barcode symbologies. Its reading performance reaches and exceeds global standards. By using the accessories provided, the user can easily set up the scanner to their customer's environment.
Application scenarios.
Designed for OEM applications, this high performance fixed CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, (Reverse) Vending Machines and many more.
Description
It’s reading performance reaches and exceeds global standards.Designed for OEM applications, this high performance fixed CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, (Reverse) Vending Machines and many more.
Ease of integration.
Compact and easy to integrate design. The small form factor enables easy integration into various solutions. This 1D fixed barcode scanner has an IP54 rating making it dust & water resistant.
Advance Technology.
Includes core-technology, which is independently designed and manufactured by Newland Auto-ID. Technology includes the optical, CMOS, digitizer, decoder, image processing & embedded systems. The scanner supports all global standard 1D barcode symbologies. Its reading performance reaches and exceeds global standards. By using the accessories provided, the user can easily set up the scanner to their customer's environment.
Application scenarios.
Designed for OEM applications, this high performance fixed CCD scan engine can easily be integrated into various solutions such as kiosks, ticketing machines, (Reverse) Vending Machines and many more.
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 39 (ASCII), Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, Interleaved 2 of 5, UPC-A, UPC-E |
| Yaw reading angle | 60 - 60° |
| Wavelength | 628 nm |
| Tilt reading angle | -30 - 30° |
| Sensor type | CCD |
| Scanner type | 1D |
| Pitch reading angle | -65 - 65° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Trigger mode | Continuous, Manual |
| Horizontal field of view | 40° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Cable length | 2 m |
| Standard interfaces | USB |
| Performance | |
| Protection features | Dust resistant, Water resistant |
| LED indicators | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Buzzer | Yes |
| Print contrast | 30% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design | |
| Type | Fixed bar code reader |
| Protection features | Dust resistant, Water resistant |
| LED indicators | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Power | |
| Power source type | DC |
| Input voltage | 5 V |
| AC adapter output voltage | 100-240 V |
| Input current | 1.5 A |
| Weight & dimensions | |
| Width | 37 mm |
| Depth | 49 mm |
| Height | 26 mm |
| Weight | 70 g |
| Technical details | |
| Type | Fixed bar code reader |
| Protection features | Dust resistant, Water resistant |
| LED indicators | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Buzzer | Yes |
| Compliance certificates | Electromagnetic Compatibility (EMC), Federal Communications Commission (FCC), KC |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 100000 lx |
