Description

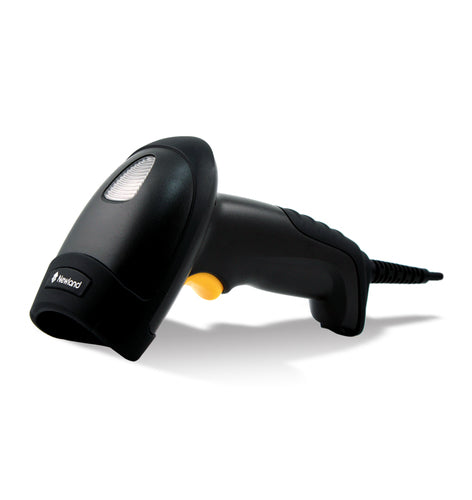

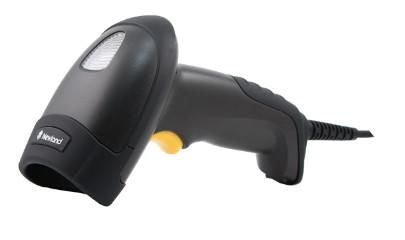

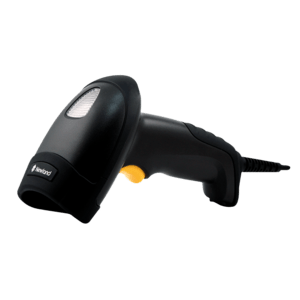

HR1550, 1D, Handheld, CCD 2500, Red LED (620nm), 300 scans/second, IP54, 1.5m Drop, USB, RS232, KIT Scanner + Cable USB coiled
Enables all day scanning comfort to protect productivity in scan-intensive applications.
The HR15 Wahoo corded handheld scanner presents a rugged and compact solution for use in supermarkets, shopping malls and warehouse environments.
Data Acquisition.
The HR15 Wahoo Corded handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. It supports common 1D barcodes and PDF417 and MicroPDF417 stacked 2D barcodes.
Lightweight ergonomic design.
This corded handscanner lies comfortably in your hand and enables all day scanning comfort in scan-intensive situations. This helps reduce fatigue and protects the workforce productivity.
Interface.
The HR15 Wahoo Corded supports standard RS-232 / USB / PS2 PC interfaces.
Durable Construction.
The HR15 Wahoo Corded was created to perform in harsh and demanding environments. With a sealing of IP54, this handheld scanner is protected against dust and moisture. With a drop resistance of 1.5m, it can withstand everyday drops and bumps.
Application scenarios.
With good performance, this rugged and compact scanner is suitable for applications in supermarkets, shopping malls, warehouse environment application and more.
Description
The HR15 Wahoo handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. This model supports standard RS-232 / USB / PS2 PC interface.Enables all day scanning comfort to protect productivity in scan-intensive applications.
The HR15 Wahoo corded handheld scanner presents a rugged and compact solution for use in supermarkets, shopping malls and warehouse environments.
Data Acquisition.
The HR15 Wahoo Corded handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. It supports common 1D barcodes and PDF417 and MicroPDF417 stacked 2D barcodes.
Lightweight ergonomic design.
This corded handscanner lies comfortably in your hand and enables all day scanning comfort in scan-intensive situations. This helps reduce fatigue and protects the workforce productivity.
Interface.
The HR15 Wahoo Corded supports standard RS-232 / USB / PS2 PC interfaces.
Durable Construction.
The HR15 Wahoo Corded was created to perform in harsh and demanding environments. With a sealing of IP54, this handheld scanner is protected against dust and moisture. With a drop resistance of 1.5m, it can withstand everyday drops and bumps.
Application scenarios.
With good performance, this rugged and compact scanner is suitable for applications in supermarkets, shopping malls, warehouse environment application and more.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, ISBN, Interleaved 2 of 5, PDF417, UPC-A, UPC-E |
| Working distance | 46.5 cm |
| Sensor type | CCD |
| Scanner type | 1D |
| Read rate (max) | 300 reads/s |
| Pitch reading angle | -55 - 55° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
| Performance | |
| Protection features | Bump resistant, Dust resistant, Moisture resistant |
| LED indicators | Notification |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Certification | FCC Part15 Class B, CE EMC Class B,RoHS, IEC62471,KC |
| Buzzer | Yes |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Bump resistant, Dust resistant, Moisture resistant |
| LED indicators | Notification |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Certification | FCC Part15 Class B, CE EMC Class B,RoHS, IEC62471,KC |
| Power | |
| Power consumption | 135 mA |
| Power source type | DC |
| Input voltage | 5 V |
| AC adapter output voltage | 100-240 V |
| Weight & dimensions | |
| Width | 113.5 mm |
| Depth | 73 mm |
| Height | 159 mm |
| Weight | 152 g |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Bump resistant, Dust resistant, Moisture resistant |
| LED indicators | Notification |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| International Protection (IP) code | IP54 |
| Product colour | Black |
| Certification | FCC Part15 Class B, CE EMC Class B,RoHS, IEC62471,KC |
| Buzzer | Yes |
| Packaging data | |
| Cables included | RS-232, USB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | RS-232, USB |
