Description

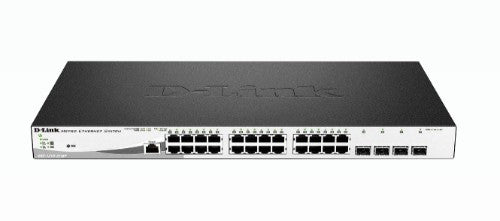

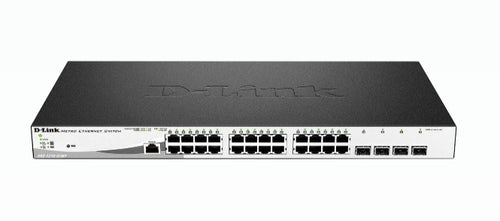

24x 10/100/1000BASE-T PoE RJ-45, 4x 100/1000 Mbps combo ports, 56 Gbps, 41.7 Mbps, 440x210x44mm
DGS-1210 switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, DGS- 1210 switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the PoE switch so that unnecessary power consumption can be saved during off hours. The DGS-1210 Series switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.
The D-Link Web Smart Switch series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC’s operating system. Furthermore, the web UI contains ten language options to make operations more straightforward. In the first installation, the SmartConsole Utility will automatically discover all D-Link Smart switches in the network, allowing administrators to assign IP addresses and the subnet mask quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. Important management commands, such as download firmware or configuration file, offer a sophisticated method of batch operations for multiple switches.
The D-link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of real-time video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic are at their highest levels. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.
Equipped with a complete lineup of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for adminstrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.
D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.
Description
The DGS-1210 Series is the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The series complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensure your network remains protected after the upgrade from IPv4 to IPv61. By offering multiple management options, the DGS-1210 series allows quick deployment, infrastructure expansion, and seamless function upgrades. Targeting small and mediumsized businesses, the DGS-1210 Web Smart Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership.DGS-1210 switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, DGS- 1210 switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the PoE switch so that unnecessary power consumption can be saved during off hours. The DGS-1210 Series switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.
The D-Link Web Smart Switch series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC’s operating system. Furthermore, the web UI contains ten language options to make operations more straightforward. In the first installation, the SmartConsole Utility will automatically discover all D-Link Smart switches in the network, allowing administrators to assign IP addresses and the subnet mask quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. Important management commands, such as download firmware or configuration file, offer a sophisticated method of batch operations for multiple switches.
The D-link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of real-time video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic are at their highest levels. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.
Equipped with a complete lineup of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for adminstrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.
D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Traffic classification | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925 |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Network | |
| IGMP snooping | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| Data transmission | |
| Number of VLANs | 4094 |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Jumbo frames | 9216 |
| Number of static routes | 32 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 41.7 Mpps |
| Optical fiber | |
| Fiber optic connector | SFP |
| Fiber ethernet cabling technology | 1000BASE-X |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Auto-negotiation | Yes |
| Noise level | 52.4 dB |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black, Grey |
| Noise level | 52.4 dB |
| Rack mounting | Yes |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Access Control List (ACL) rules | 256 |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS, SNMP, SSH |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Certificates | |
| Electromagnetic compatibility | FCC A, CE A, VCCI, C-Tick, BSMI, CCC |
| Certification | IEC61000-4-5, RoHS |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black, Grey |
| LED indicators | Activity, Fan fail, Link, Power, Speed |
| Electromagnetic compatibility | FCC A, CE A, VCCI, C-Tick, BSMI, CCC |
| Certification | IEC61000-4-5, RoHS |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Indication | |
| LED indicators | Activity, Fan fail, Link, Power, Speed |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 27.49 W |
| Power source | AC/DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 850.58 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 3.86 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
