Description
1D/2D, 1280x800 CMOS, LED, USB, ø65 mm x 100 mm, 374 g
A Medical Grade Device
With its advanced illumination system and ability to scan DPM barcodes, the NVF260 is perfect for healthcare applications. The special medical-grade coating can withstand sterilization with 100% alcohol solutions without any damage to the surface.
DPM Decoding.
With a new generation of industrial decoding, the NVF260 is excellent at reading DPM barcodes even on curved surfaces.
Advanced Illumination.

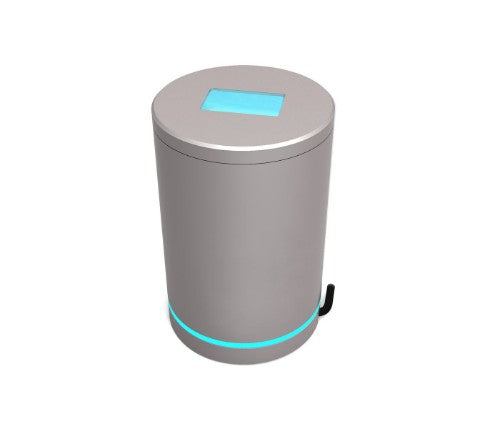

The NVF260's blue illumination ring helps to reduce bottlenecks in the scanning process by avoiding the reflection from materials with metal surfaces.
Impressive Image Sensor.
With a 1280x800 megapixel imager, the NVF260 can decode up to 3-millimetre barcodes.
Industrial Design.
Built with an IP64 housing, the NVF260 easily resists water and dust. The medical-grade housing is also able to be sterilized without alcohol damage.

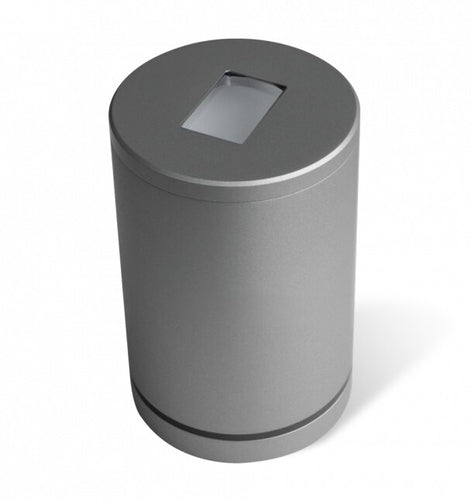

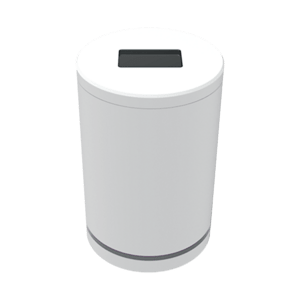

NFV260 2D CMOS Mega Pixel Medical scanner, DPM and HD scanner with direct USB cable
Key Features
- DPM Decoding
- Advanced Illumination
- Impressive Image Sensor
- Industrial Design
Description
Designed for healthcare applications, the NVF260 is perfect for tracking surgical instruments. The NVF260 provides excellent performance in reading DPM barcodes with a new generation of industrial decoding algorithms. Its' blue diffuse illumination helps to avoid reflection from metal surfaces.A Medical Grade Device
With its advanced illumination system and ability to scan DPM barcodes, the NVF260 is perfect for healthcare applications. The special medical-grade coating can withstand sterilization with 100% alcohol solutions without any damage to the surface.
DPM Decoding.
With a new generation of industrial decoding, the NVF260 is excellent at reading DPM barcodes even on curved surfaces.
Advanced Illumination.
The NVF260's blue illumination ring helps to reduce bottlenecks in the scanning process by avoiding the reflection from materials with metal surfaces.
Impressive Image Sensor.
With a 1280x800 megapixel imager, the NVF260 can decode up to 3-millimetre barcodes.
Industrial Design.
Built with an IP64 housing, the NVF260 easily resists water and dust. The medical-grade housing is also able to be sterilized without alcohol damage.
NFV260 2D CMOS Mega Pixel Medical scanner, DPM and HD scanner with direct USB cable
Specifications
| Scanning | |
|---|---|
| Type | Built-in bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1-128 (UCC/EAN-128), ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, MSI, Matrix 2 of 5, Plessey, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Data Matrix, QR Code |
| Yaw reading angle | 0 - 360° |
| Tilt reading angle | -40 - 40° |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Pitch reading angle | -40 - 40° |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| Protection features | Drop proof, Electrostatic Discharge (ESD) protection |
| International Protection (IP) code | IP64 |
| Product colour | Grey |
| Certification | FCC Part15 Class B, CE EMC Class B |
| Buzzer | Yes |
| Design | |
| Type | Built-in bar code reader |
| Protection features | Drop proof, Electrostatic Discharge (ESD) protection |
| International Protection (IP) code | IP64 |
| Product colour | Grey |
| Certification | FCC Part15 Class B, CE EMC Class B |
| Power | |
| Power consumption | 230 mA |
| Power source type | USB |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 65 mm |
| Depth | 65 mm |
| Height | 100 mm |
| Weight | 347 g |
| Technical details | |
| Type | Built-in bar code reader |
| Protection features | Drop proof, Electrostatic Discharge (ESD) protection |
| International Protection (IP) code | IP64 |
| Product colour | Grey |
| Certification | FCC Part15 Class B, CE EMC Class B |
| Buzzer | Yes |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Storage temperature (T-T) | 20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Cables included | USB |
