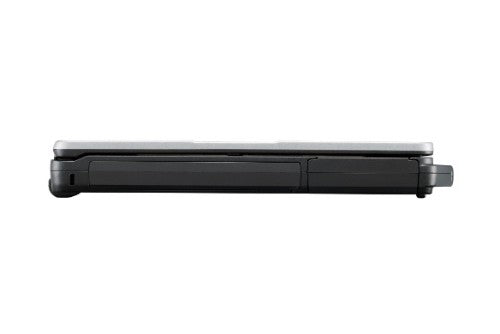

Toughbook 55 MK2, 14" IPS HD (1366 x 768), Intel Core i5-1145G7, Intel Iris Xe Graphics, 8GB DDR4-3200MHz, 256GB OPAL NVMe SSD, Intel Wi-Fi 6 AX201, Bluetooth v5.1, Windows 10 Pro
Description
The Panasonic TOUGHBOOK® 55 is a 14” semi-rugged laptop that features an innovative modular design and up to 38 hours of battery life with its optional 2nd battery. The modular design features six expansion areas allowing users to upgrade the memory, storage, keyboard and three different xPAK areas featuring a new barcode reader, additional I/O, optical drives, authentication readers and more. Backwards compatibility with the previous generation of docks protects customers’ investments while saving time and resources. Built with state of the art technology, the TOUGHBOOK 55 offers the latest Intel® 11th Gen processors, optional Intel Iris® Xe Graphics, tetra array microphone that provides unparalleled speech recognition accuracy, unmatched battery life, color-selectable backlit keyboard and a Night mode to reduce eye strain and help preserve night vision. Secure-core PC compliant - simplified security out-of-the box.
Specifications
| Design |
|---|
| Product type |
Laptop |
| Form factor |
Clamshell |
| Product colour |
Black |
| Rugged design |
Yes |
| Display |
|---|
| Panel type |
IPS |
| Touchscreen |
No |
| Display resolution |
1366 x 768 pixels |
| Display diagonal |
35.6 cm (14") |
| Processor |
|---|
| Processor generation |
11th gen Intel® Core™ i5 |
| Configurable TDP-down |
12 W |
| Configurable TDP-down frequency |
1.1 GHz |
| Processor cache type |
Smart Cache |
| Processor cache |
8 MB |
| Processor model |
i5-1145G7 |
| Processor boost frequency |
4.4 GHz |
| Processor cores |
4 |
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i5 |
| Configurable TDP-up frequency |
2.6 GHz |
| Configurable TDP-up |
28 W |
| Memory |
|---|
| Memory form factor |
SO-DIMM |
| Internal memory |
8 GB |
| Internal memory type |
DDR4-SDRAM |
| Memory clock speed |
3200 MHz |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
64 GB |
| Storage |
|---|
| SSD form factor |
M.2 |
| Storage media |
SSD |
| Optical drive type |
No |
| Number of SSDs installed |
1 |
| SSD capacity |
256 GB |
| SSD interface |
NVMe |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSDXC |
| Total storage capacity |
256 GB |
| NVMe |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| On-board graphics card model |
Intel Iris Xe Graphics |
| Discrete graphics card model |
Not available |
| On-board GPU manufacturer |
Intel |
| Audio |
|---|
| Built-in microphone |
Yes |
| Camera |
|---|
| Front camera |
Yes |
| Front camera resolution (numeric) |
2 MP |
| Privacy camera |
Yes |
| Privacy type |
Privacy shutter |
| Front camera HD type |
Full HD |
| Infrared (IR) camera |
Yes |
| Windows Hello |
Yes |
| Optical drive |
|---|
| Optical drive type |
No |
| Network |
|---|
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6 AX201 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Ethernet LAN |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.1 |
| WLAN controller manufacturer |
Intel |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Combo headphone/mic port |
Yes |
| Docking connector |
Yes |
| Keyboard |
|---|
| Pointing device |
Touchpad |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Software |
|---|
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Pro |
| Technical details |
|---|
| Form factor |
Clamshell |
| Product colour |
Black |
| Processor special features |
|---|
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Idle States |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Battery |
|---|
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery capacity |
6500 mAh |
| Power |
|---|
| AC adapter frequency |
50/60 Hz |
| AC adapter input voltage |
100 - 240 V |
| AC adapter output current |
7.05 A |
| AC adapter output voltage |
15.6 V |
| Security |
|---|
| Cable lock slot type |
Kensington |
| Trusted Platform Module (TPM) |
Yes |
| Cable lock slot |
Yes |
| Windows Hello |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-29 - 60 °C |
| Drop proof |
91 cm |
| Weight & dimensions |
|---|
| Width |
345 mm |
| Depth |
272 mm |
| Height |
32.8 mm |
| Other features |
|---|
| WLAN controller model |
Intel Wi-Fi 6 AX201 |
| On-board graphics card |
Yes |
