Description

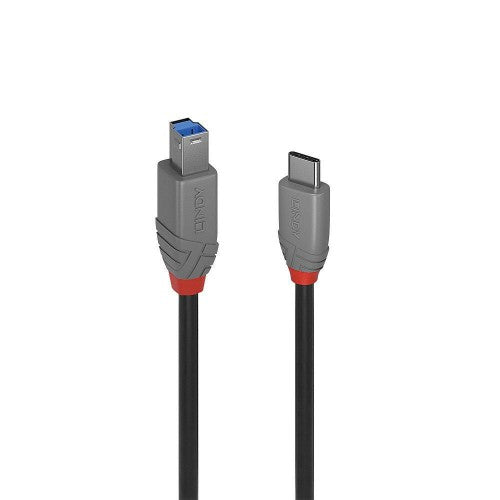

3m USB 3.2 Type C to B Cable, Anthra Line
They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Key Features
- Professional choice USB 3.2 Gen 1 Type C to B cable for commercial and high performance AV and IT installations
- SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)
- Robust PVC housing, gold plated contacts and nickel plated connectors
- Triple shielded cable, corrosion resistant tinned copper conductors
Description
The Anthra Line USB 3.2 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type C to B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.
Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 22/30 |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB C |
| Connector 2 | USB B |
| Cable length | 3 m |
| Connector contacts plating | Nickel |
| Maximum data transfer rate | 500 Mbit/s |
| Product colour | Black |
| Certification | RoHS, REACH, California Proposition 65, UL |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Tinned copper |
| Cable jacket material | Nylon/Polyvinyl Chloride (PVC) |
| Connector shielding | Yes |
| Connector shield material | Copper |
| Cable diameter | 4.3 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 4.3 mm |
| Bend radius (min) | 2.5 cm |
| Connector 1 dimensions (WxDxH) | 10.8 x 32 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 12.2 x 46 x 10 mm |
| Cable length | 3 m |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB C |
| Connector 2 | USB B |
| Connector contacts plating | Nickel |
| Data transmission | |
| Maximum data transfer rate | 500 Mbit/s |
| Technical details | |
| Product colour | Black |
| Certificates | |
| Certification | RoHS, REACH, California Proposition 65, UL |
| Other features | |
| Package type | Polybag |
| Product colour | Black |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
