Description

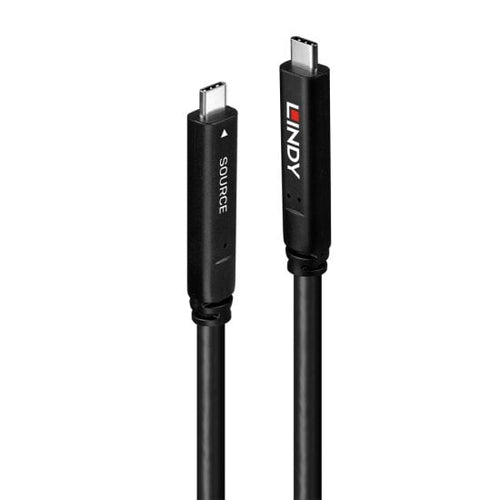

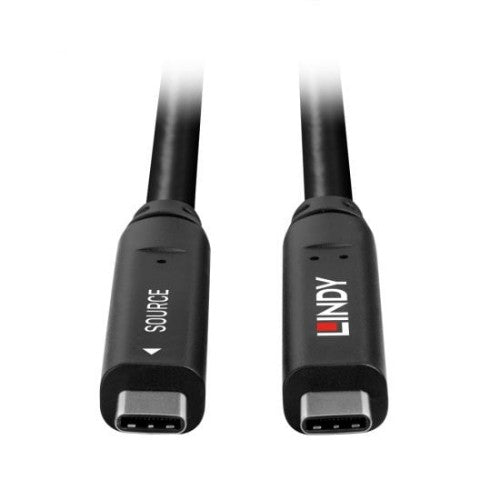

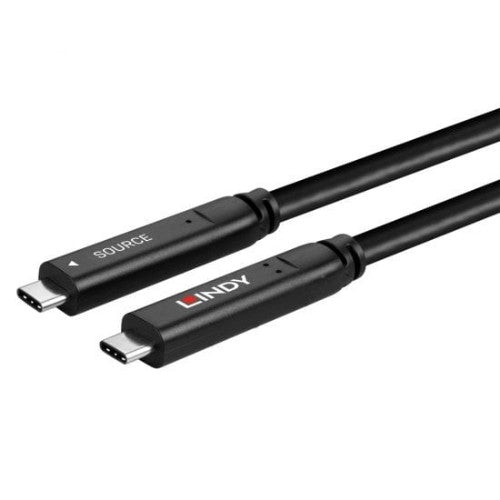

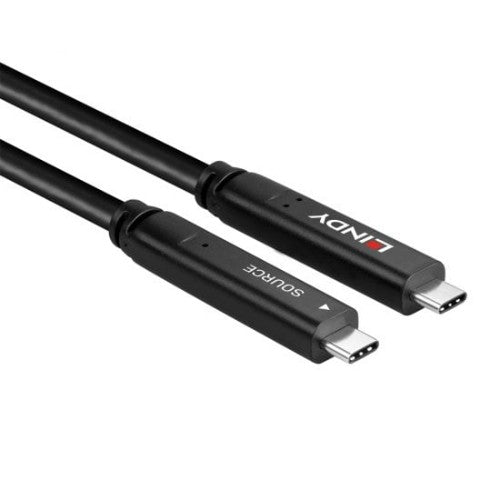

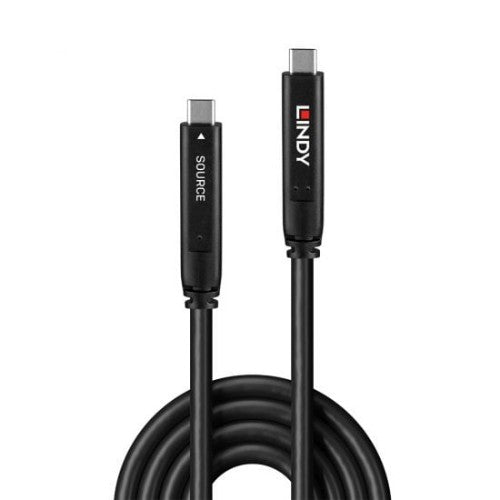

10m USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable
The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
Please Note:
When using resolutions above 3840x2160@30Hz, USB data transfer rates reduce to 5Gbps, and resolutions above 3840x2160@60Hz transfer rates reduce further to 480Mbps.
USB devices which only support DP signals over 4 lanes might not be compatible.
Displays must have set USB settings to USB 3.0 in order to receive video via Type C.
Key Features
- 10m USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable for data and video extension
- Data transfer rates up to 5Gbps
- Supports DisplayPort 1.4 Alternate Mode with video resolutions up to 4K 3840x2160@60Hz
- Supports Power Delivery up to 60W (20V 3A)
- 2 year warranty
Description
The Lindy USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 10m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss.
Please Note:
When using resolutions above 3840x2160@30Hz, USB data transfer rates reduce to 5Gbps, and resolutions above 3840x2160@60Hz transfer rates reduce further to 480Mbps.
USB devices which only support DP signals over 4 lanes might not be compatible.
Displays must have set USB settings to USB 3.0 in order to receive video via Type C.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Plug and Play | Yes |
| AWG wire size | 21 |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 10 m |
| Product colour | Black |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector shielding | Yes |
| Connector housing material | Plastic |
| Cable diameter | 6.5 mm |
| Weight | 760 g |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 6.5 mm |
| Cable length | 10 m |
| Weight | 760 g |
| Package width | 240 mm |
| Package depth | 240 mm |
| Package height | 65 mm |
| Package weight | 900 g |
| Package type | Box |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 240 mm |
| Package height | 65 mm |
| Package weight | 900 g |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Technical details | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, RoHS & REACH, CP65 |
| Other features | |
| Package type | Box |
| Product colour | Black |
| Cable type | Round cable |
| Operating temperature (T-T) | -10 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
