Description

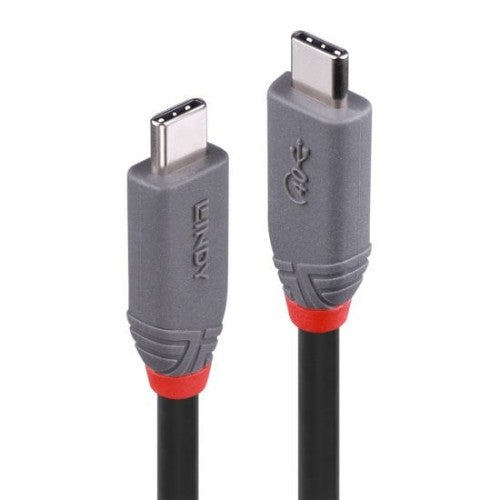

0.8m USB 4 Type C Cable, 40Gbps, Anthra Line
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Key Features
- Professional choice USB 4 Gen 3x2 Type C to C cable for commercial and high performance AV and IT installations
- Supports data transfer speeds up to 40Gbps (backwards compatible to USB 3.2 , USB 2.0 and Thunderbolt 3)
- Supports DisplayPort 2.0 Alternate Mode and USB Power Delivery 3.0 up to 100 Watt (20V 5A)
- Triple shielded coaxial cable, gold plated contacts and nickel plated connectors
Description
The Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| USB version | USB4 Gen 3x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 0.8 m |
| Connector contacts plating | Gold |
| Product colour | Black |
| Certification | RoHS, REACH, California Proposition, UL |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Copper |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Connector material | Nickel |
| Nominal attenuation | 0.5Mhz-15Ghz ≤ 11dB |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Bend radius (min) | 2.88 cm |
| Cable length | 0.8 m |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 40 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Ports & interfaces | |
| USB version | USB4 Gen 3x2 |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector contacts plating | Gold |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | RoHS, REACH, California Proposition, UL |
| Other features | |
| Package type | Polybag |
| Product colour | Black |
| Cable type | Round cable |
| Operating temperature (T-T) | -20 - 40 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
