Description

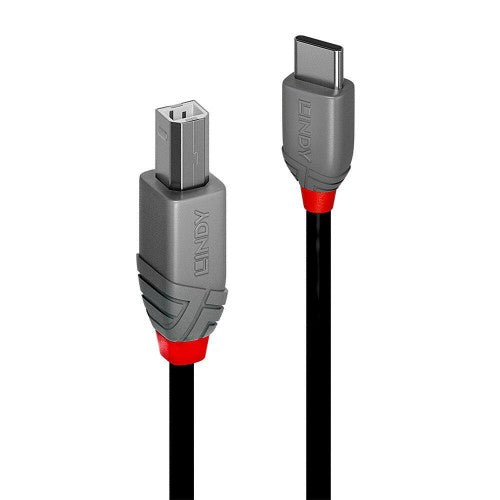

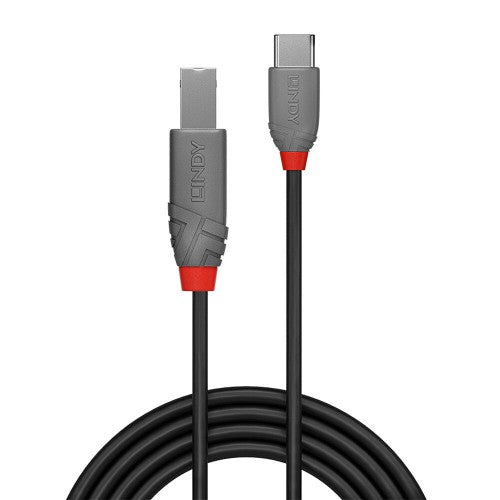

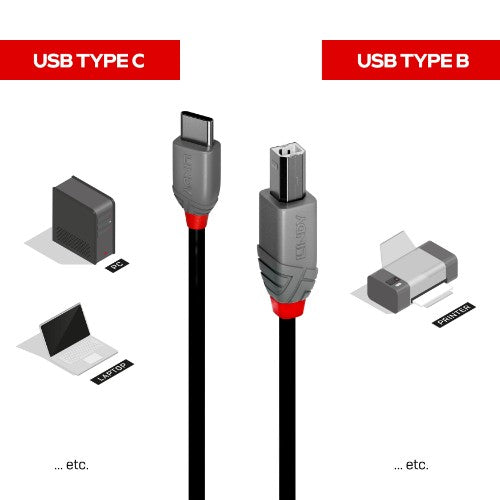

0.5m USB 2.0 Type C to B Cable, Anthra Line
They are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 2.0 Type C to B cables are available in the following length: 0.5m, 1m, 2m and 3m.
Key Features
- Professional choice USB 2.0 Type C to B cable for commercial and high performance AV and IT installations
- Supports data transfer speeds up to 480Mbps
- Robust PVC housing, nickel connectors and gold plated contacts
- Double shielded cable, corrosion resistant tinned copper conductors
- 10 year warranty
Description
The Anthra Line USB 2.0 Type C to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.They are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 2.0 Type C to B cables are available in the following length: 0.5m, 1m, 2m and 3m.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 26/28 |
| USB version | USB 2.0 |
| Connector 1 | USB C |
| Connector 2 | USB B |
| Cable length | 0.5 m |
| Connector contacts plating | Nickel |
| Maximum data transfer rate | 480 Mbit/s |
| Product colour | Black |
| Certification | RoHS, REACH, California Proposition, UL |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Tinned copper |
| Cable jacket material | Nylon/Polyvinyl Chloride (PVC) |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Nominal attenuation | 1 - 400MHz < 5.8dB |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable diameter | 4.4 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 4.4 mm |
| Cable length | 0.5 m |
| Bend radius (min) | 2.5 cm |
| Connector 1 dimensions (WxDxH) | 10.9 x 28.3 x 7.2 mm |
| Connector 2 dimensions (WxDxH) | 11.8 x 47 x 10.2 mm |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Ports & interfaces | |
| USB version | USB 2.0 |
| Connector 1 | USB C |
| Connector 2 | USB B |
| Connector contacts plating | Nickel |
| Data transmission | |
| Maximum data transfer rate | 480 Mbit/s |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | RoHS, REACH, California Proposition, UL |
| Other features | |
| Package type | Polybag |
| Product colour | Black |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
