Description

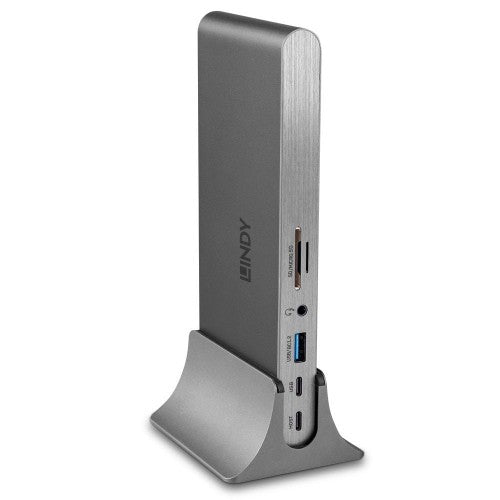

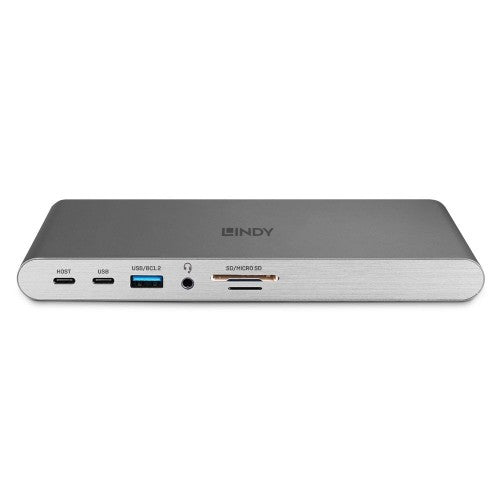

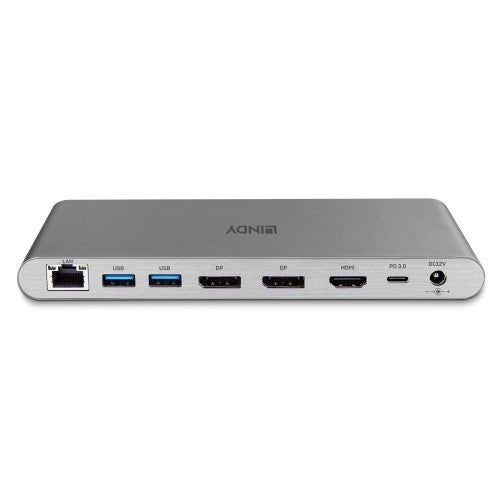

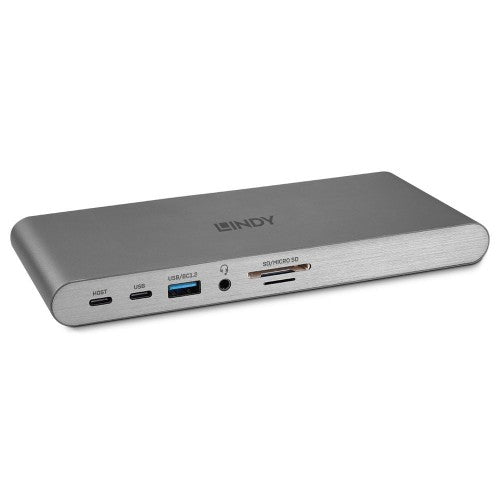

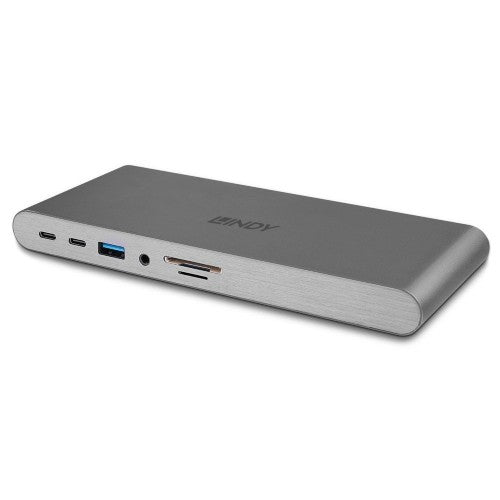

DST-Pro 5K XT, USB-C Laptop Docking Station with Triple Display (4K) or Single Display (5K) and 100W Pass-Through Charging
Extended Displays
When it comes to external display resolution, this docking station stands out from the crowd. With support for a single display resolution of 5k@60Hz (DisplayPort), you can connect your laptop with some of the industry's leading displays and monitors. There is also support for dual display (5K@60Hz + 4K@60Hz) and triple display (1 x 4K@60Hz, 2 x 4K@30Hz) setups. So, whether you need one, two or three displays, simply plug in your laptop and allow the DST-Pro 5K to provide Ultra HD resolutions through a single USB-C connection.
Added Connectivity
This docking station delivers great additional connectivity. SuperSpeed USB (5Gbps), Gigabit Ethernet, SD, microSD, HDMI, DisplayPort and a 3.5mm combo jack, are all featured. This allows for improved internet speeds, greater storage capacity and a comprehensive desktop experience.
Pass-through Charging
This docking station comes with a 24W PSU (Power Supply Unit). This is to ensure that there is enough power for the docking station to function without needing to take any power from your device's connected charger. Thanks to the integrated PD 3.0 port, you can plug your USB-C charger into the docking station and experience up to 100W pass-through charging (depending on the charger's capabilities). The USB-A port on the front of the dock also has support for Battery Charging 1.2 meaning you can charge mobile devices with 5V and up to 1.5A.
Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
Key Features
- Connects an HDMI and/or up to 2 DisplayPort displays, USB peripherals and power over a single cable
- Supports 5K 60Hz for a single DisplayPort display or 4K 60Hz for a single HDMI display
- Integrated 4 port USB SuperSpeed 5Gbps Hub (3 x Type A, 1 x Type C)
- USB Power Delivery capable up to 100W
- 2 year warranty
Description
The DST-Pro 5K is a feature packed docking station designed to deliver unrivalled video output. Housed in a robust aluminium body, this dock delivers great additional connectivity for your device. A space-saving stand is also included to help keep your workspace clutter-free.Extended Displays
When it comes to external display resolution, this docking station stands out from the crowd. With support for a single display resolution of 5k@60Hz (DisplayPort), you can connect your laptop with some of the industry's leading displays and monitors. There is also support for dual display (5K@60Hz + 4K@60Hz) and triple display (1 x 4K@60Hz, 2 x 4K@30Hz) setups. So, whether you need one, two or three displays, simply plug in your laptop and allow the DST-Pro 5K to provide Ultra HD resolutions through a single USB-C connection.
Added Connectivity
This docking station delivers great additional connectivity. SuperSpeed USB (5Gbps), Gigabit Ethernet, SD, microSD, HDMI, DisplayPort and a 3.5mm combo jack, are all featured. This allows for improved internet speeds, greater storage capacity and a comprehensive desktop experience.
Pass-through Charging
This docking station comes with a 24W PSU (Power Supply Unit). This is to ensure that there is enough power for the docking station to function without needing to take any power from your device's connected charger. Thanks to the integrated PD 3.0 port, you can plug your USB-C charger into the docking station and experience up to 100W pass-through charging (depending on the charger's capabilities). The USB-A port on the front of the dock also has support for Battery Charging 1.2 meaning you can charge mobile devices with 5V and up to 1.5A.
Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 0 |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| DisplayPort version | 1.4 |
| HDCP version | 2.2 |
| HDCP | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 7680 x 4320 pixels |
| Product colour | Silver |
| Card reader integrated | Yes |
| Plug and Play | Yes |
| Data transfer rate | 5 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Housing material | Aluminium |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Product colour | Silver |
| Plug and Play | Yes |
| Data transfer rate | 5 Gbit/s |
| Compliance certificates | CE, REACH, RoHS |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Power | |
| Power source type | DC |
| Power consumption (max) | 24 W |
| Output voltage | 20 V |
| Output current | 5 A |
| Power connector | USB Type-C |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 40 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Weight | 439 g |
| Width | 180 mm |
| Depth | 77 mm |
| Height | 18 mm |
| Package weight | 780 g |
| Package width | 200 mm |
| Package depth | 120 mm |
| Package height | 70 mm |
| Design | |
| Product colour | Silver |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package weight | 780 g |
| Package width | 200 mm |
| Package depth | 120 mm |
| Package height | 70 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | USB Type-C |
| Quantity per pack | 1 pc(s) |
