Description

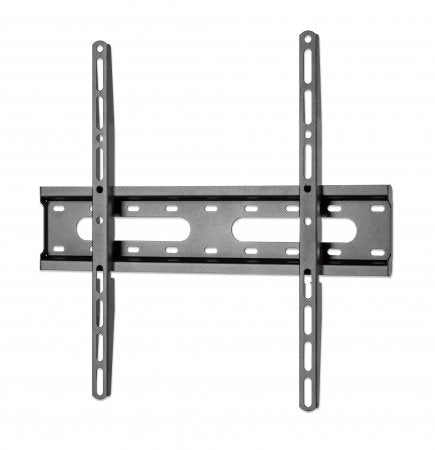

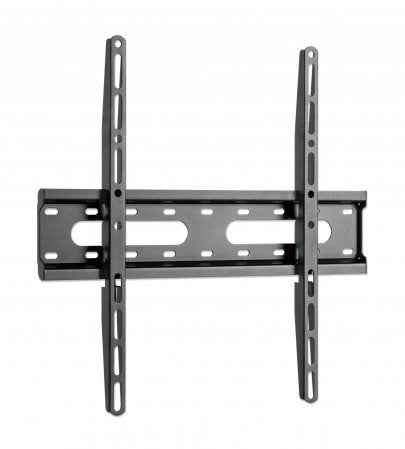

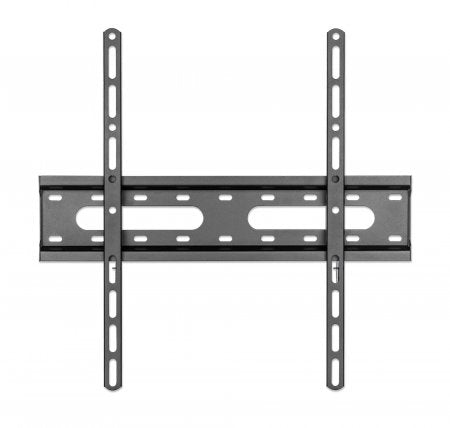

Wall Mount for TV & Monitors (Fixed Low Profile), For screens 32" to 55", VESA compatability: all between 75x75mm and 400x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 45kg, Black, Bracket

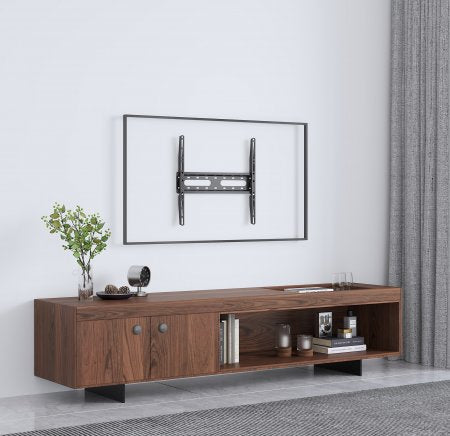

When viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile Fixed TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette. With this mount, your TV sits only 27 mm (1 in.) from the wall. Constructed of high-quality, powder-coated steel, it fits flat and curved LCD, LED or plasma TVs up to 55" and weighing up to 45 kg (100 lbs.). It offers VESA compliance up to 400x400, and it's great for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Key Features
- Supports one 32" to 55" TV up to 45 kg (100 lbs.)

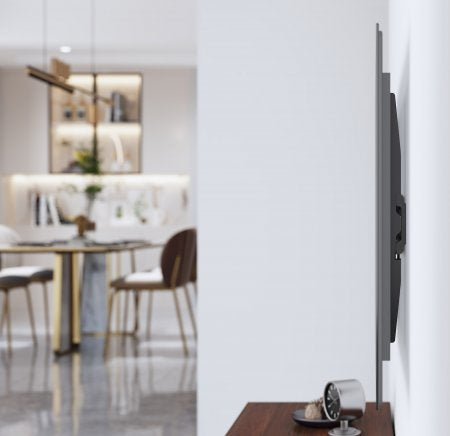

- Holds TV only 27 mm (1 in.) from wall
- Heavy-duty steel construction with powder coating
- Includes attachable bubble level
- Low-profile installation ideal for home, office and commercial applications
- Meets VESA standards: 75x75, 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400
Description
Ultra Slim TV Wall Mount for flush-as-possible TV installationsWhen viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile Fixed TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette. With this mount, your TV sits only 27 mm (1 in.) from the wall. Constructed of high-quality, powder-coated steel, it fits flat and curved LCD, LED or plasma TVs up to 55" and weighing up to 45 kg (100 lbs.). It offers VESA compliance up to 400x400, and it's great for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 81.3 cm (32") |
| Panel mounting interface | 75 x 75,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300 |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 400 x 400 mm |
| Maximum screen size | 139.7 cm (55") |
| Maximum weight capacity | 45 kg |
| Design | |
| Certification | RoHS |
| Housing material | Steel |
| Technical details | |
| Mounting type | Wall |
| Certificates | |
| Certification | RoHS |
| Weight & dimensions | |
| Width | 435 mm |
| Height | 27 mm |
| Weight | 1 kg |
| Depth (max) | 42 cm |
| Packaging data | |
| Package weight | 1.11 kg |
| Other features | |
| Mounting type | Wall |
