Description

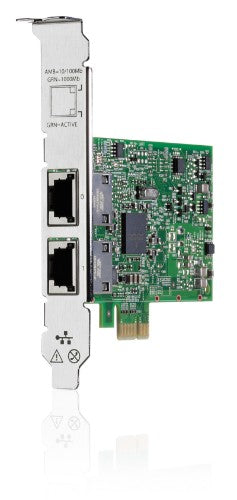

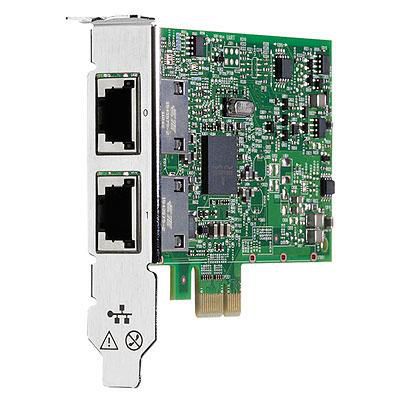

Ethernet 1Gb 2-port 332T Adapter, Refurbished
Supported advanced features include Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588 (Precision Time Protocol – PTP), and virtualization features such as VMware NetQueue and Microsoft Virtual Machine Queue (VMQ). Support for HPE Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.
Features
Single-chip, Dual-port, 1 Gb Ethernet Adapter Designed for Performance and Energy Savings
- An aggregate, full duplex transfer rate of 4 Gb/s per adapter improves response times and alleviates bottlenecks.
- Comprehensive stateless offloads optimize host efficiency and virtual machine density by offloading network processes from the host CPU.
- Virtualization support for VMware NetQueue and Microsoft VMQ helps meet the performance demands of consolidated virtual workloads.
- Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.
- Support for Energy Efficient Ethernet (EEE) reduces operating expenses.
Description
Need a cost effective 1GbE Solution for your HPE ProLiant Gen 7 or Gen 8 server? The HPE Ethernet 1Gb 2-port 332T Adapter is a dual-port, low-cost, low profile 1Gb adapter featuring a PCIe 2.0 compliant form factor designed for select HPE ProLiant Gen 8 and Gen 7 ML/DL/SL servers. It delivers full line-rate performance across all ports with low power consumption, providing Ethernet connectivity ideal for virtualization, security, server consolidation, and network segmentation.Supported advanced features include Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588 (Precision Time Protocol – PTP), and virtualization features such as VMware NetQueue and Microsoft Virtual Machine Queue (VMQ). Support for HPE Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.
Features
Single-chip, Dual-port, 1 Gb Ethernet Adapter Designed for Performance and Energy Savings
- An aggregate, full duplex transfer rate of 4 Gb/s per adapter improves response times and alleviates bottlenecks.
- Comprehensive stateless offloads optimize host efficiency and virtual machine density by offloading network processes from the host CPU.
- Virtualization support for VMware NetQueue and Microsoft VMQ helps meet the performance demands of consolidated virtual workloads.
- Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores.
- Support for Energy Efficient Ethernet (EEE) reduces operating expenses.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Network | |
| Chipset | Broadcom NetXtreme BCM5720 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Maximum operating distance | 100 m |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2000 Mbit/s |
| Technical details | |
| PCI Card form factor | Full-height (low-profile) |
| Compliance certificates | RoHS |
| Design | |
| Chipset | Broadcom NetXtreme BCM5720 |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Power | |
| Power consumption (typical) | 2.2 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 55.9 mm |
| Depth | 111.8 mm |
| Other features | |
| Chipset | Broadcom NetXtreme BCM5720 |
