CMOS, 1/2.9, WDR, 0.18 lux, 1920x1080, IP42, IK08
Key Features
- Built-in cybersecurity features; Compact, discreet design; Great image quality in 2 MP; Support for analytics with deep learning; WDR and Lightfinder
Description

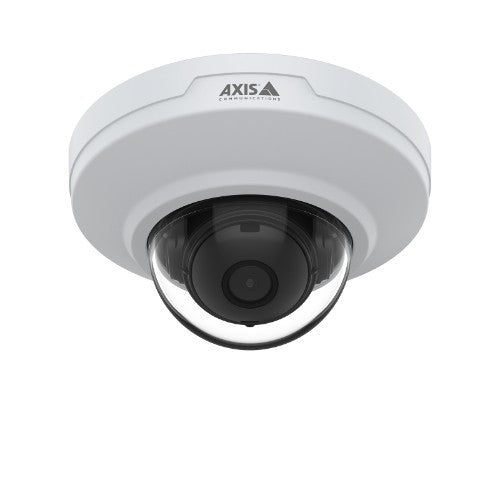

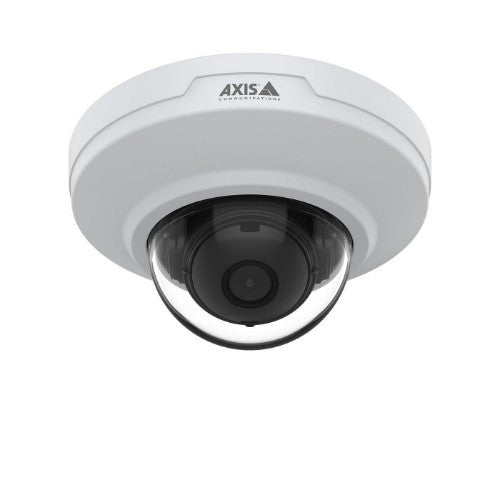

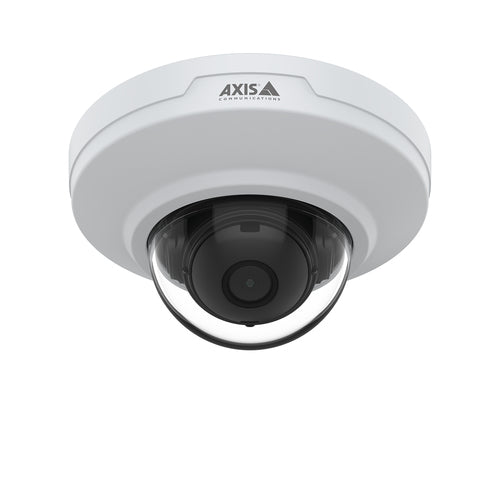

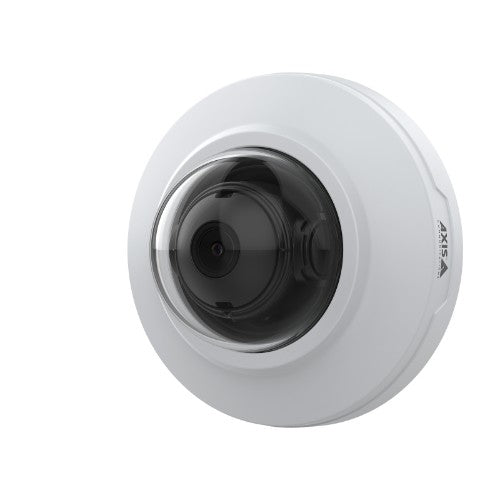

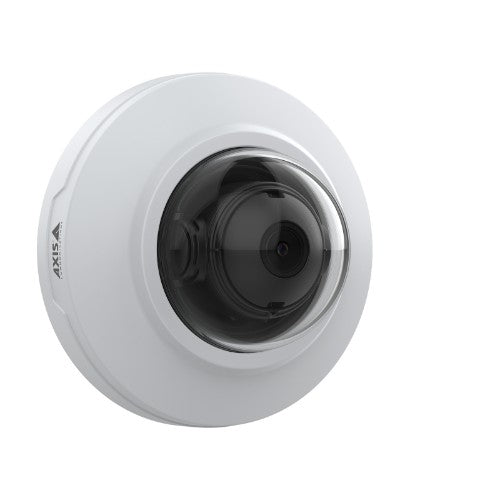

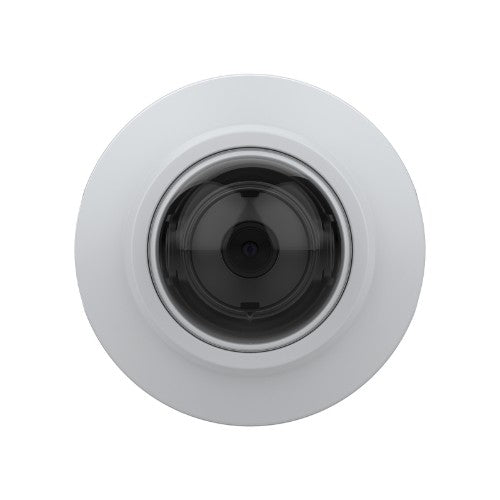

This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there’s both dark and light areas in the scene. With Lightfinder, it delivers sharp color images even in low light. A deep learning processing unit enables intelligent analytics based on deep learning on the edge. And AXIS Object Analytics offers detection and classification of different types of objects – all tailored to your specific needs. Furthermore, this compact, easy-to-install, vandal-resistant camera comes factory focused so there’s no manual focusing required.
Specifications
| Performance |
|---|
| Type |
IP security camera |
| Connectivity technology |
Wired |
| Placement supported |
Indoor |
| Wide Dynamic Range (WDR) |
Yes |
| Day/night mode |
Yes |
| Design |
|---|
| IK code |
IK08 |
| Form factor |
Dome |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| International Protection (IP) code |
IP42 |
| Camera |
|---|
| Lens viewing angle, horizontal |
102° |
| Lens viewing angle, vertical |
55° |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Optical sensor size |
25.4 / 2.9 mm (1 / 2.9") |
| Lens system |
|---|
| Fixed focal length |
3.1 mm |
| Night vision |
|---|
| Night vision |
Yes |
| Video |
|---|
| Video compression formats |
H.264H, H.264M, H.265 |
| Maximum resolution |
1920 x 1080 pixels |
| Video streaming |
Yes |
| Total megapixels |
2 MP |
| Audio |
|---|
| Audio system full duplex |
Yes |
| Network |
|---|
| Bluetooth |
No |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired |
| Security |
|---|
| Motion sensor |
Yes |
| Power |
|---|
| Power source type |
PoE |
| Power consumption (max) |
4.2 W |
| Power consumption (typical) |
3.6 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Height |
56 mm |
| Diameter |
10.1 cm |
| Weight |
150 g |
| Packaging content |
|---|
| Number of cameras |
1 |
| Technical details |
|---|
| Doesn't contain |
BFR, PVC |
| Other features |
|---|
| Video compression formats |
H.264H, H.264M, H.265 |
