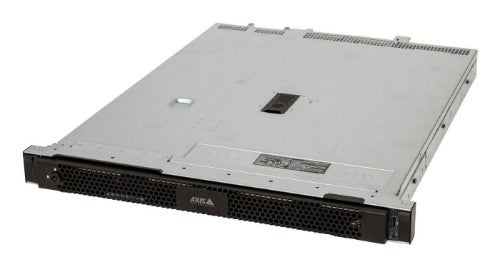

Rack Recording server, 32 TB, 512 Mbit/s
Key Features
- 32 AXIS Camera Station licenses included; Available in 2 variants: 16 TB and 32 TB; Extensive support and 5-year warranty; Flexible storage options including RAID; Scalable and powerful solution
Description
Featuring powerful components, this secure, scalable recording server offers high performance and support for powerful applications and features. It includes AXIS Camera Station licenses and multiple RAID configurations for flexible storage and multiple redundancy configuration. And, a Trusted Platform Module (FIPS 140-2 level 2 certified) ensures secure storage of all cryptographic keys and certificates. Available in two variants with a choice of storage, it comes preloaded with preconfigured software. Plus, all supported products are available in one price list for a one-stop-shop experience. Furthermore, it offers services such as Keep Your Hard Drive, Next Business Day Onsite Support, and a 5-year warranty.
Specifications
| Storage |
|---|
| Total installed storage capacity |
32 TB |
| Installed storage drive type |
HDD |
| Supported storage drive types |
HDD |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 6, 10 |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel Xeon E |
| Memory |
|---|
| Internal memory |
32 TB |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| USB port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Serial ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| Hard drive |
|---|
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 6, 10 |
| Design |
|---|
| Product colour |
Grey |
| Chassis type |
Rack (1U) |
| Technical details |
|---|
| Type |
Storage server |
| Backup function |
No |
| Product colour |
Grey |
| Chassis type |
Rack (1U) |
| Performance |
|---|
| Type |
Storage server |
| Backup function |
No |
| Operating system installed |
Windows 10 IoT Core |
| Software |
|---|
| Operating system installed |
Windows 10 IoT Core |
| Power |
|---|
| Power consumption (max) |
158 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
127 W |
| Weight & dimensions |
|---|
| Width |
599 mm |
| Depth |
482 mm |
| Height |
43 mm |
| Weight |
12.9 kg |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
10 - 35 °C |
| Operating relative humidity (H-H) |
8 - 80% |
