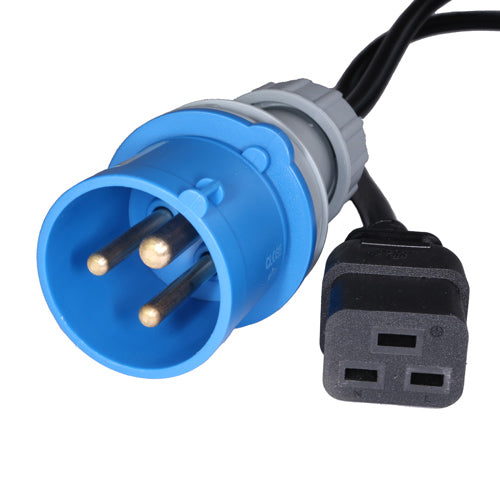

2m, IEC 309/C19, Male/Female, Black
Key Features
- 16 Amp Commando (3 Pin)
- 2m
- Black
- 1.5mm Sq Conductors
- PVC Sheath
Description
The 16A (Commando) - C19 PVC heavy duty cables are commonly used to provide a 240v supply directly to an uninterruptable power supply (UPS).
Specifications
| Ports & interfaces |
|---|
| Connector contacts plating |
Nickel |
| Connector 2 |
C19 coupler |
| Connector 1 |
IEC 309 |
| Cable length |
2 m |
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Conductor material |
Copper |
| Cable type |
H05VV-F |
| Number of cable cores |
3 |
| Core size |
1.5 mm² |
| Jacket material |
Polyvinyl chloride (PVC) |
| Connector contacts plating |
Nickel |
| Connector 2 |
C19 coupler |
| Connector 1 |
IEC 309 |
| Cable length |
2 m |
| Connector 1 standard |
IEC 60309 |
| Connector 2 standard |
IEC 60320-1 |
| Connector 1 lockable |
No |
| Connector 2 lockable |
No |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Product colour |
Black |
| International Protection (IP) code |
IP44 |
| Power |
|---|
| Connector 1 current |
16 A |
| Colour |
|---|
| Product colour |
Black |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Jacket material |
Polyvinyl chloride (PVC) |
