Description

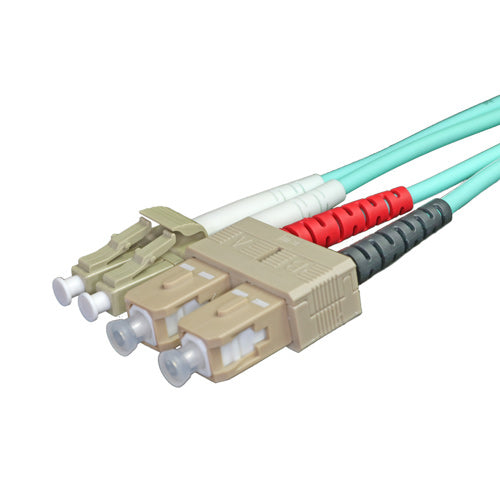

2m OM3 50/125 LC-SC Duplex Aqua LSOH Fibre Patch Lead
All assemblies are fully tested during manufacturing and are supplied with test results.
OM3 Multimode patch leads are supplied with a strain relief boot and 3.00mm Aqua LSOH cable jacket as standard.
Non-stocked configurations (length, colour, connectors and cable type) can be manufactured to meet specific requirements - PLEASE CONTACT SALES FOR MORE INFORMATION
Key Features
- OM3 (50/125) Duplex Fibre Lead
- LC-SC High-Quality Connectors
- Aqua Blue LSOH Outer Sheath
- 3.0mm Duplex Cable
Description
Our LC-SC OM3 Multimode patch leads are used particularly in 1 Gb/s, 10 Gb/s and short distance, high bandwidth applications.All assemblies are fully tested during manufacturing and are supplied with test results.
OM3 Multimode patch leads are supplied with a strain relief boot and 3.00mm Aqua LSOH cable jacket as standard.
Non-stocked configurations (length, colour, connectors and cable type) can be manufactured to meet specific requirements - PLEASE CONTACT SALES FOR MORE INFORMATION
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | SC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Features | |
| Fibre optic type | OM3 |
| Connector gender | Male/Male |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | SC |
| Cable length | 2 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Product colour | Aqua colour |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Weight & dimensions | |
| Cable length | 2 m |
| Cable diameter | 3 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
