Description

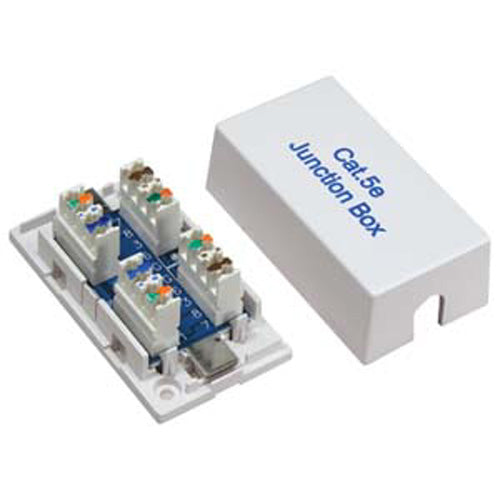

Cat5e IDC Punchdown Connection Box
It is a cost-effective and simple option if you need to extend a cable that is too short or if do not wish to run a new cable altogether.
Can be secured to a wall or similar flat surface with screws and is compatible with both 110 and the Krone style punch down tools.
Key Features
- Cat5e
- 568A/B Wiring code
- Suitable for 22-26 AWG Solid or Stranded cable
- Protective Cover
Description
The Cablenet Cat5e UTP IDC Junction box is perfect for joining two Cat5e UTP cables to each other without the use of couplers and connectors.It is a cost-effective and simple option if you need to extend a cable that is too short or if do not wish to run a new cable altogether.
Can be secured to a wall or similar flat surface with screws and is compatible with both 110 and the Krone style punch down tools.
Specifications
| Technical details | |
|---|---|
| Product colour | White |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Design | |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Product colour | White |
| Performance | |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Cable shielding | U/UTP (UTP) |
| Product colour | White |
| Weight & dimensions | |
| Width | 33.6 mm |
| Height | 23.5 mm |
| Depth | 61.6 mm |
