Description

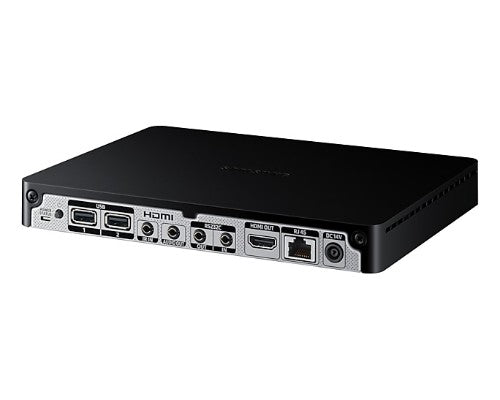

UHD Signage Player Box
Samsung’s Signage Player Box produces high-quality, UHD content across screens, with minimal operational burden. Backed by the powerful Tizen operating system, this versatility allows the box to deliver a smooth, centralized server-to-display exchange, free of bulky and expensive external hardware
Fully-Integrated Performance Management
UHD Signage Player Box provides flexibility with a centralized management platform, offering detailed performance updates, allowing users to make critical display adjustments anytime, anywhere. Along with customizable apps through SSSP 6, users have a more flexible and convenient experience.
Intuitive All-in-One Operations
The UHD Signage Player Box combines information processing and content management tools into a single platform, for added operational simplicity. Weighing just 0.6 kg, even with embedded MagicINFO S Player 6 and SSSP 6, the compact design of the box makes it an ideal solution.
Key Features
- Seamless UHD Content Delivery
- Intuitive All-in-One Operations
- Fully-Integrated Performance Management
Description
Seamless UHD Content DeliverySamsung’s Signage Player Box produces high-quality, UHD content across screens, with minimal operational burden. Backed by the powerful Tizen operating system, this versatility allows the box to deliver a smooth, centralized server-to-display exchange, free of bulky and expensive external hardware
Fully-Integrated Performance Management
UHD Signage Player Box provides flexibility with a centralized management platform, offering detailed performance updates, allowing users to make critical display adjustments anytime, anywhere. Along with customizable apps through SSSP 6, users have a more flexible and convenient experience.
Intuitive All-in-One Operations
The UHD Signage Player Box combines information processing and content management tools into a single platform, for added operational simplicity. Weighing just 0.6 kg, even with embedded MagicINFO S Player 6 and SSSP 6, the compact design of the box makes it an ideal solution.
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Video formats supported | AVC, AVS+, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Image formats supported | JPEG, PNG |
| Audio formats supported | AC3 |
| Display | |
| Built-in display | No |
| Processor | |
| Processor cores | 4 |
| Processor architecture | Cortex-A72 |
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| Storage | |
| Built-in storage media | Yes |
| Storage media type | eMMC |
| Total storage capacity | 8 GB |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Memory | |
| Internal memory | 2500 MB |
| Internal memory type | LPDDR4 |
| Video | |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |

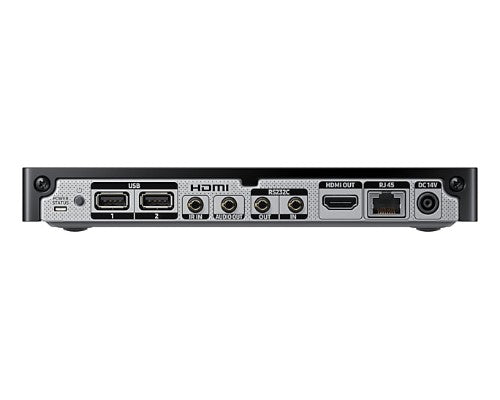

| Ports & interfaces | |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Audio (L/R) out | 0 |
| HDCP | Yes |
| Digital audio optical out | 0 |
| Digital audio coaxial out | 0 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Composite video out | 0 |
| Component video (YPbPr/YCbCr) out | 0 |
| USB 2.0 ports quantity | 2 |
| RS-232C | Yes |
| Network | |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Software | |
| Operating system installed | Tizen |
| Operating system version | 4.0 |
| Ergonomics | |
| LED indicators | Yes |
| Product colour | Black |
| Power | |
| Power consumption (typical) | 21 W |
| Weight & dimensions | |
| Width | 206.4 mm |
| Depth | 165.6 mm |
| Height | 29.9 mm |
| Weight | 600 g |
| Package width | 379 mm |
| Package height | 80 mm |
| Package depth | 249 mm |
| Package weight | 1.5 kg |
| Packaging data | |
| Package width | 379 mm |
| Package height | 80 mm |
| Package depth | 249 mm |
| Package weight | 1.5 kg |
| Packaging content | |
| Remote control included | Yes |
| Cables included | AC, HDMI |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Design | |
| Product colour | Black |
| Hard drive | |
| Built-in storage media | Yes |
| Storage media type | eMMC |
| Total storage capacity | 8 GB |
| File formats | |
| Video formats supported | AVC, AVS+, H.263, H.264, HEVC, MPEG1, MPEG2, MPEG4, VC-1, VP8, VP9 |
| Image formats supported | JPEG, PNG |
| Audio formats supported | AC3 |
| Technical details | |
| Product colour | Black |
| HDCP | Yes |
| LED indicators | Yes |
| RS-232C | Yes |
