Description

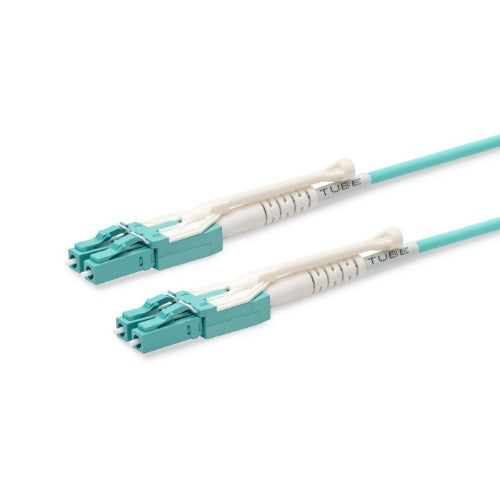

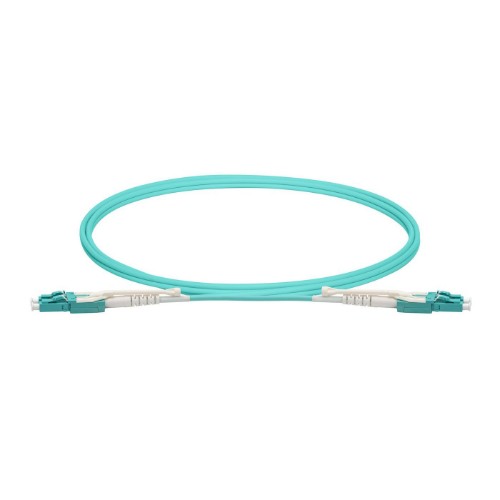

Fiber patch cords LC Uniboot to LC Uniboot duplex OM3 10m 3.0mm LSZH (Grade C)
Another special feature of the Uniboot cable is the option to switch polarities, simply remove the top cover and you can swap the connectors to change the polarity, no need to swap to another cable with Uniboot.
This cable lives up to the OM3 fibre standard to connect to high speed and legacy networks like 10/40/100 gigabit. This cable standard is ideal for for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc.
The cable is made of LSZH material to live up to Telecordia, EIA TIA or IEC standards.
Key Features
- UniBoot to minimize insertionloss
- Easy to handle
- LSZH (Low Smoke Zero Halogen) and flame retardant
- Pre tested with test report
- Reverse Polarity—with a few simple steps, the connectors polarity of the LC
- Uniboot fiber patch cables can be reversed without need of connector re-termination.
- Quick Release Latch—the latch of LC Uniboot fiber patch cable allows for the quick and easy release of this connector from the adapter panel, which makes great sense in the growing trend of high density applications.
Description
This Uniboot cable comes with a lot of great features to take your networking setup to the next level, Uniboot cables comes with both the fibre leads coated in a single jacket, meaning there is more room for airflow in the rack. This also means the insertion loss is low.Another special feature of the Uniboot cable is the option to switch polarities, simply remove the top cover and you can swap the connectors to change the polarity, no need to swap to another cable with Uniboot.
This cable lives up to the OM3 fibre standard to connect to high speed and legacy networks like 10/40/100 gigabit. This cable standard is ideal for for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc.
The cable is made of LSZH material to live up to Telecordia, EIA TIA or IEC standards.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 10 m |
| Full duplex | Yes |
| Cladding diameter | 150 µm |
| Insertion loss | 0.14 dB |
| Sustainability compliance | Yes |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Features | |
| Fibre optic type | OM3 |
| Return loss | 38.42 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 10 m |
| Full duplex | Yes |
| Cladding diameter | 150 µm |
| Insertion loss | 0.14 dB |
| Certification | Rohs |
| Country of origin | China |
| Ethernet interface type | 10 Gigabit Ethernet |
| Wavelengths supported | 850 nm |
| Product colour | Blue |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector polish type | UPC |
| Plug and Play | Yes |
| Certificates | |
| Certification | Rohs |
| Weight & dimensions | |
| Cable length | 10 m |
| Cable diameter | 3 mm |
| Weight | 46 g |
| Package weight | 47 g |
| Packaging data | |
| Package weight | 47 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
