Description
Silent Wings Pro 4 140mm PWM, 2400RPM, 36.8dB, FDB, 97.41cfm, 165.5m3/h
For the highest performance, optimized fan blades, especially for heat sinks designed radiator corners and a speed switch with 3 selectable speed options, Silent Wings Pro 4 140mm PWM is the most progressive, performant, and versatile fan by be quiet!
Key Features
- Optimized fan blades for the highest performance on radiators and heat sinks

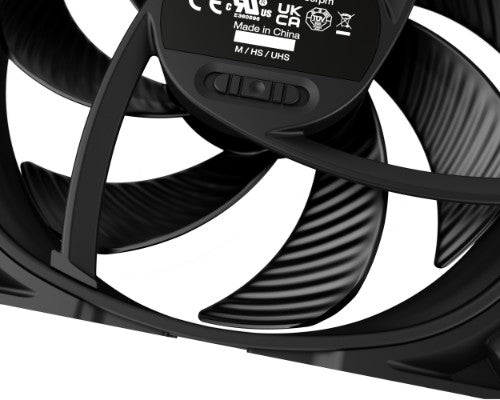

- Speed switch allows changing maximum PWM speed between medium-speed, high-speed and ultra-high-speed (up to 2400 rpm)
- Small tip clearance and a fan frame with a funnel-shaped air outlet for extremely high air pressure
- Virtually inaudible operation at regular speed
- 6-pole fan motor for less vibration and power consumption
- Fluid-dynamic bearing enables very smooth operation
- Individual and easy mounting systems for use as a case fan or with a radiator
- Super-long life-span of up to 300,000h

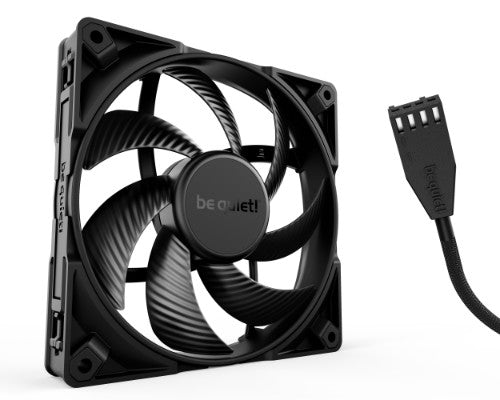

- Valuable sleeved PWM cable and easy to install PWM connector
- Elegant look with high-grade fan sticker in an all-black design
Description
Legendary silence, epic performance and featuresFor the highest performance, optimized fan blades, especially for heat sinks designed radiator corners and a speed switch with 3 selectable speed options, Silent Wings Pro 4 140mm PWM is the most progressive, performant, and versatile fan by be quiet!
Specifications
| Performance | |
|---|---|
| Suitable location | Computer case |
| Fan connector | 4-pin |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (max) | 2400 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level (high speed) | 36.8 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 97.41 cfm |
| Maximum air pressure | 3.64 mmH2O |
| Airflow | 165.5 m³/h |
| Mean time between failures (MTBF) | 300000 h |
| Quantity per pack | 1 pc(s) |
| Design | |
| Fan connector | 4-pin |
| Product colour | Black |
| Certification | CE / ROHS / RU / UKCA / TÜV / WEEE |
| Cable length | 0.5 m |
| Technical details | |
| Noise level (high speed) | 36.8 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 97.41 cfm |
| Maximum air pressure | 3.64 mmH2O |
| Airflow | 165.5 m³/h |
| Cable length | 0.5 m |
| Fan connector | 4-pin |
| Ports & interfaces | |
| Fan connector | 4-pin |
| Power | |
| Rated voltage | 12 V |
| Voltage | 7 - 13.2 V |
| Rated current | 0.5 A |
| Power consumption (typical) | 6 W |
| Maximum current | 0.5 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |

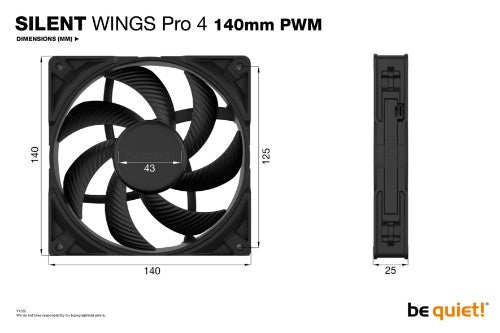

| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Package depth | 206.5 mm |
| Package width | 156 mm |
| Package height | 31 mm |
| Width | 140 mm |
| Package weight | 448 g |
| Depth | 140 mm |
| Height | 25 mm |
| Weight | 258 g |
| Cable length | 0.5 m |
| Endurance | |
| Mean time between failures (MTBF) | 300000 h |
| Packaging data | |
| Package depth | 206.5 mm |
| Package width | 156 mm |
| Package height | 31 mm |
| Package weight | 448 g |
| Certificates | |
| Certification | CE / ROHS / RU / UKCA / TÜV / WEEE |

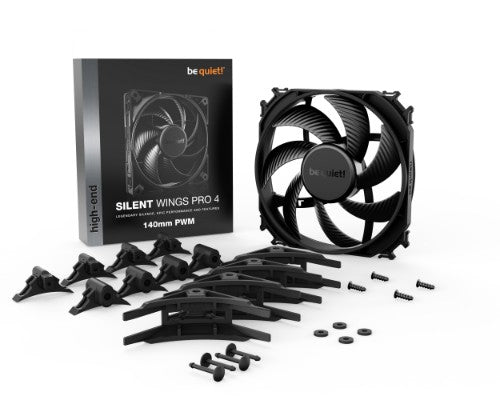

| Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Number of clips | 4 |
| Other features | |
| Country of origin | Germany |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Shipping (inner) case width | 31.7 cm |
| Shipping (inner) case length | 46.3 cm |
| Shipping (inner) case height | 38.8 cm |
| Shipping (inner) case gross weight | 15.5 kg |
| Products per shipping (inner) case | 32 pc(s) |
| Harmonized System (HS) code | 84733080 |
