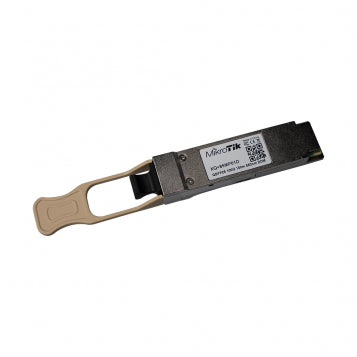

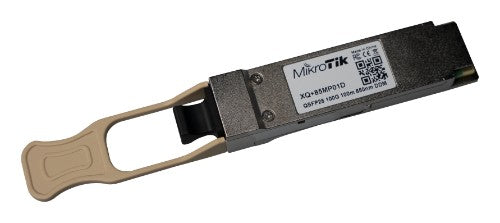

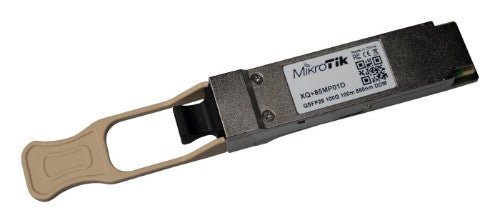

QSFP+/QSFP28, 1 x 12 MTP/MPO, 40G / 100G, Black
Description
Add this QSFP module for distances up to 100 meters to your CCR2216, CRS504 or CRS518 setups and enjoy real speed and ultimate reliability. This optical module offers four independent full-duplex channels with up to 25 Gbps per channel bandwidth and an aggregate bandwidth of 100 Gbps. The module has built-in digital diagnostic functions such as optical power monitoring.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Fiber optic connector |
MTP/MPO |
| Maximum transfer distance |
100 m |
| Wavelength |
850 nm |
| Duplex system |
Full |
| Maximum data transfer rate |
100000 Mbit/s |
| Interface type |
QSFP28 |
| Multi-mode fiber (MMF) supported |
Yes |
| Country of origin |
China |
| Product colour |
Black |
| Compatible products |
CCR2216, CRS504, CRS518 |
| Brand compatibility |
MikroTik |
| Features |
|---|
| Product colour |
Black |
| Compatible products |
CCR2216, CRS504, CRS518 |
| Brand compatibility |
MikroTik |
| Country of origin |
China |
| Certification |
FCC, CE |
| Certificates |
|---|
| Certification |
FCC, CE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
MTP/MPO |
| Maximum data transfer rate |
100000 Mbit/s |
| Interface type |
QSFP28 |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Maximum transfer distance |
100 m |
| Wavelength |
850 nm |
| Duplex system |
Full |
| Compatible products |
CCR2216, CRS504, CRS518 |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Country of origin |
China |
