Midspan, 100-240V, 90 W
Key Features
- -40 °C to 65 °C (-40 °F to 149 °F); 100 to 240 V AC input; IEEE 802.3af/at/bt and High PoE; Outdoor-ready, IP66/67- and NEMA TS2; Railway compliant EN 50121-4 and IEC 62236-4
Description

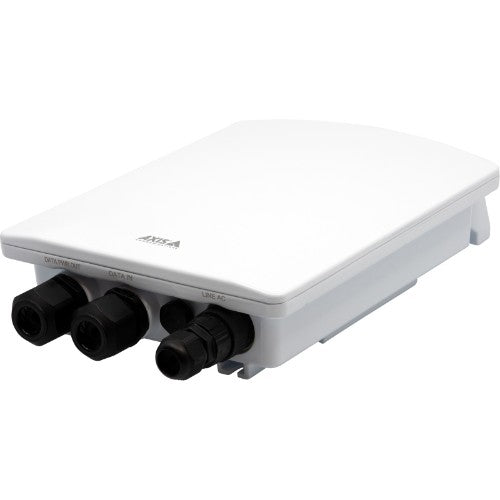

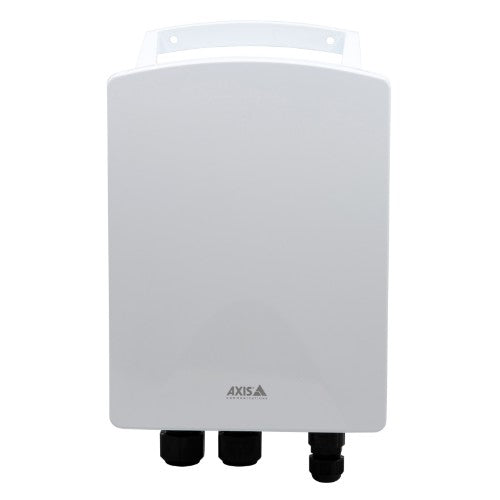

AXIS TU8002-E is an outdoor-ready midspan with IP66/67 and NEMA TS2 rating. It has an extended temperature range from -40 °C up to 65 °C (-40 °F to 149 °F) at certain output power. The midspan offers surge protection up to 6kV for the AC port. Thanks to the IP66/IP67-rated RJ45 connectors, there is no need to open the outdoor midspan, just connect the mains cable and the network video product. The 90 W midspan is compatible with IEEE 802.3af/at/bt and High PoE supported devices.
Specifications
| Features |
|---|
| Brand compatibility |
Axis |
| Type |
Midspan |
| Placement supported |
Universal |
| Product colour |
White |
| International Protection (IP) code |
IP67 |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Rated power |
90 W |
| Technical details |
|---|
| Type |
Midspan |
| Placement supported |
Universal |
| International Protection (IP) code |
IP67 |
| Colour |
|---|
| Product colour |
White |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 65 °C |
