Description
HDMI, Micro USB to USB Type-C, 4K120Hz, 8K30Hz
If you have a PC or any other device that lacks the new USB Type-C 8K30Hz or 4K120Hz specifications, the Club3D CAC-1336 will be the simple way to connect your HDMI™ source device to your new USB Type-C 4K120Hz or 8K30Hz display(provided your source supports these resolutions).

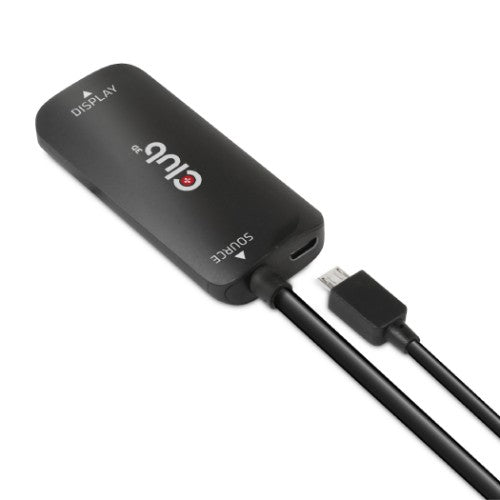

The Adapter is powered thru a Micro USB port(5V/1.5A). An USB Type-A to Micro USB M/M 1m / 3.28 ft is supplied in the box.
Note: This adapter will only work on USB Type-C Displays that are self powered !
Please use one of our Club 3D certified Extension/Adapter cables to connect to your devices. For optimal usages of this adapter we highly recommend you to use the CAC-1576 or CAC-1571.
In case you need additional assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at support@club-3d.com and it will be our pleasure to assist you.
Key Features
- Compliant with USB DP Alt Mode Specifications up to 3840x2160/120Hz or 7680x4320/30Hz
- Compliant with HDMI™ Specifications up to 3840x2160/120Hz or 7680x4320/30Hz
- Support Max. resolution/refresh rates up to 4K120Hz or 8K30Hz
- Adapter is separatly powered thru a Micro USB Female port 7.5Watt (5V/1.5A)

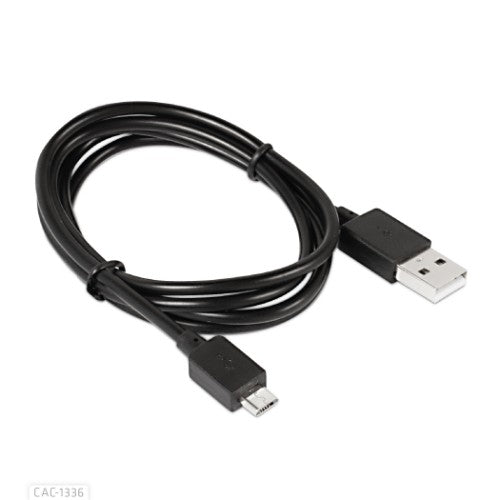

- USB Type-A to Micro USB M/M 1m / 3.28 ft cable is supplied in the box
Description
The Club 3D CAC-1336 is the perfect solution to connect to any USB Type-C 8K30Hz or 4K120Hz ready displays from a HDMI™ source which does supports these resolutions/specifications.If you have a PC or any other device that lacks the new USB Type-C 8K30Hz or 4K120Hz specifications, the Club3D CAC-1336 will be the simple way to connect your HDMI™ source device to your new USB Type-C 4K120Hz or 8K30Hz display(provided your source supports these resolutions).
The Adapter is powered thru a Micro USB port(5V/1.5A). An USB Type-A to Micro USB M/M 1m / 3.28 ft is supplied in the box.
Note: This adapter will only work on USB Type-C Displays that are self powered !
Please use one of our Club 3D certified Extension/Adapter cables to connect to your devices. For optimal usages of this adapter we highly recommend you to use the CAC-1576 or CAC-1571.
In case you need additional assistance to choose the correct cable, please visit our website www.club-3d.com or feel free to mail us at support@club-3d.com and it will be our pleasure to assist you.
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Cable length | 1 m |
| Connector 1 | HDMI + USB |
| Connector 2 | USB Type-C |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Mac operating systems supported | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 30 Hz |
| Cable type | Round cable |
| Refresh rate at maximum resolution | 120 Hz |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Other features | |
| Width | 72 mm |
| Height | 12 mm |
| Depth | 30 mm |
| Packaging composition | |
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 45 g |
| Weight & dimensions | |
| Width | 72 mm |
| Height | 12 mm |
| Depth | 30 mm |
| Weight | 28 g |
| Package width | 145 mm |
| Package depth | 145 mm |
| Package height | 45 mm |
| Package weight | 99 g |
| Connector 1 dimensions (WxDxH) | 37 x 7 x 15 mm |
| Connector 2 dimensions (WxDxH) | 28 x 6 x 10 mm |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 145 mm |
| Package height | 45 mm |
| Package type | Box |
| Package weight | 99 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Technical details | |
| Harmonized System (HS) code | 8544 4290 |
| Plastic packaging weight | 5 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
