Description
2 Port Displayport DualView 60 Hz 4K@60fp, Multiplatform support
- Use two monitors, a mouse and a keyboard to operate 2 computers with dual display
- Supports a maximum UHD resolution of 4K / 60 Hz
- USB ports for mouse and keyboard
- Audio connections for microphone/speaker, supports Dolby True HD and DTS HD Master Audio
- Integrated USB hub with USB A port for additional peripheral equipment
- Switching between the PCs via switch on the KVM switch or hot key on the keyboard
- LED status and functional displays on the front side
- The KVM switch is supplied with power via the USB connection through a connected computer
- Real Plug and Play - no software or driver installation required (BIOS hardware connection)
- Sturdy metal housing

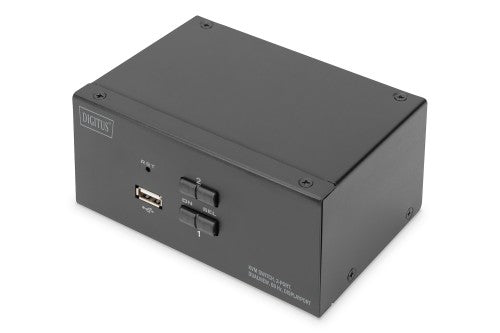

With the DIGITUS® 2-Port KVM Switch for dual displays, you can operate two 4k-compatible PCs using a single USB keyboard and mouse combination. By pressing a button or hot key, you can switch comfortably between the two PCs and are spared the trouble of replugging all cables. Output on up to two monitors is provided via two DisplayPort® outputs on the rear side. You can also switch between the audio signals for the microphone and speaker. In addition, a USB port is included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. The connected peripheral devices are each assigned to the active PC. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing.
Key Features
- UHD resolution: 4K / 60 Hz (3840 x 2160p) / Subsampling: YUV 4:4:4

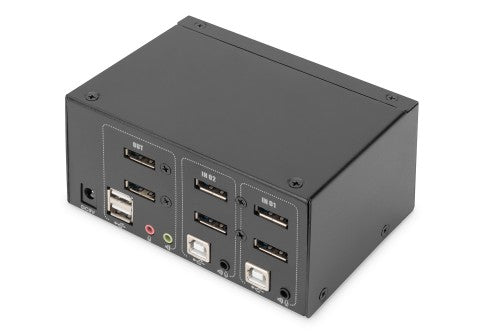

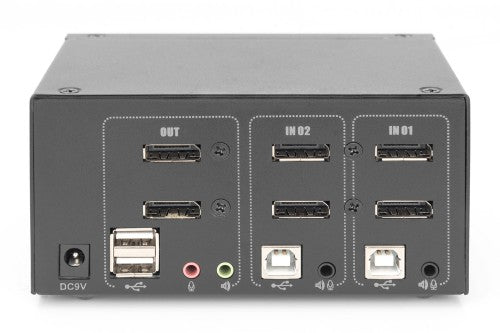

- Inputs: 4 x DP® inputs (2x2), 2 x USB B, 2 x Audio combo socket 3.5 mm jack (microphone, speaker)
- Outputs (console): 2 x DP®, 2 x USB A (mouse, keyboard), 2 x Stereo audio 3.5 m jack (microphone, speaker)
- Additional connection on the front side: 1 x USB A for additional peripheral equipment such as printers or USB sticks
- USB specifications: USB 2.0 compliant (full speed)
- Supported audio formats: Dolby True HD, DTS HD Master Audio
- Switching between the PCs: Switch on the front side or hot keys

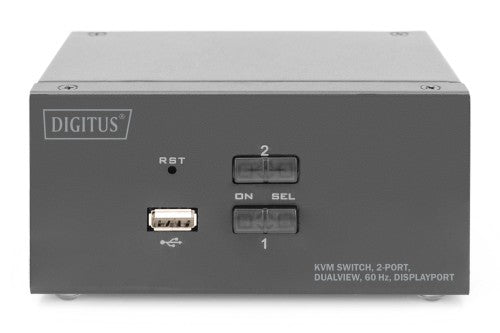

- Status LED on front side shows current configuration
- The device is platform-independent, suitable for all operating systems
- Operating temperature: 0 °C to 80 °C
- Storage temperature: -20 °C to +60 °C
- Operating humidity: 0% - 80% RH (non-condensing)
- Case material: Metal
- Power supply device: USB power supply or optional 9 V DC power adapter (300 mA, 5.5x2.1 mm plug)
- Dimensions: 13.2 x 9.2 x 6.6 cm (WxDxH)
- Weight: 580 g
- Power Spec: AC 100-240V
- Power Consmption: 2.7W
- DC plug Size: 5.5*2.1mm
Description
Operate 2 PCs with dual display using a USB keyboard and mouse combination – switch between two computers by pressing a button- Use two monitors, a mouse and a keyboard to operate 2 computers with dual display
- Supports a maximum UHD resolution of 4K / 60 Hz
- USB ports for mouse and keyboard
- Audio connections for microphone/speaker, supports Dolby True HD and DTS HD Master Audio
- Integrated USB hub with USB A port for additional peripheral equipment
- Switching between the PCs via switch on the KVM switch or hot key on the keyboard
- LED status and functional displays on the front side
- The KVM switch is supplied with power via the USB connection through a connected computer
- Real Plug and Play - no software or driver installation required (BIOS hardware connection)
- Sturdy metal housing
With the DIGITUS® 2-Port KVM Switch for dual displays, you can operate two 4k-compatible PCs using a single USB keyboard and mouse combination. By pressing a button or hot key, you can switch comfortably between the two PCs and are spared the trouble of replugging all cables. Output on up to two monitors is provided via two DisplayPort® outputs on the rear side. You can also switch between the audio signals for the microphone and speaker. In addition, a USB port is included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. The connected peripheral devices are each assigned to the active PC. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing.
Specifications
| Ports & interfaces | |
|---|---|
| Console ports | DisplayPort, USB A |
| USB connector type | USB Type-A |
| DisplayPorts quantity | 6 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| DC-in jack | Yes |
| USB 2.0 Type-B ports quantity | 2 |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Status |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Status |
| Housing material | Metal |
| Country of origin | China |
| Display | |
| Built-in display | No |
| Power | |
| Power source | DC |
| Input voltage | 9 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Features | |
| Country of origin | China |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 80 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 92 mm |
| Height | 66 mm |
| Weight | 580 g |
| Package width | 210 mm |
| Package depth | 210 mm |
| Package height | 120 mm |
| Package weight | 1.82 kg |
| Packaging data | |
| Package width | 210 mm |
| Package depth | 210 mm |
| Package height | 120 mm |
| Package weight | 1.82 kg |
| Packaging content | |
| Cables included | DisplayPort, KVM |
| Manual | Yes |
| Logistics data | |
| Country of origin | China |
