Description

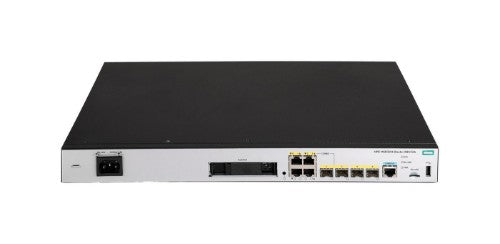

Networking Comware Router AC MSR3016
Makes administration easier with HPE Networking Intelligent Management Center (IMC) Software.
Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.
Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
Satisfies medium to large branches with advanced hardware architecture and high port density.
Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Deploy advanced features with no additional licensing.
Delivers an open standards approach to your network infrastructure.
With advanced hardware architecture and FPBA modules, you get reliable, high-performance functionality with multi-core processors.
What is new supporting point:
Additional features such as ADVPN and hierarchical QoS.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
High-density voice modules and channelized POS access to cover.
Reasons To Buy
Reduces Complexity and Simplifies Your Network
The HPE Networking Comware Router Series MSR3000 simplifies your network through integrated routing, switching, security, and voice, and combines the flexibility of modular upgrades to deliver high-performance medium-to-large branch routing.Makes administration easier with HPE Networking Intelligent Management Center (IMC) Software.
Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.
Enhances Time to Service and Branch Performance
The HPE Networking Comware Router Series MSR3000 offers high performance routing with up to 13 Mpps forwarding and 14.3 Gbps of IPSec encryption throughput to meet bandwidth requirements of branch traffic.Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
Satisfies medium to large branches with advanced hardware architecture and high port density.
Increases Your Return on Investment
The HPE Networking Comware Router Series MSR3000 is a modular platform with a wide range of connectivity options that enables the right design for your needs.Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
Deploy advanced features with no additional licensing.
Boosts Agility and Resiliency
TheHPE Networking Comware Router Series MSR3000 provides Open Application Platform module that supports HPE Alliance One applications such as WAN acceleration and Microsoft Skype for Business (Lync).Delivers an open standards approach to your network infrastructure.
With advanced hardware architecture and FPBA modules, you get reliable, high-performance functionality with multi-core processors.
Description
The HPE Networking Comware Router Series MSR3000 feature a modular design that delivers unmatched application services for medium to large branch offices. These routers offer Gigabit switching, provide an enhanced PCI bus, ship with the Comware v7 OS, provide a full-featured resilient routing platform including IPv6 and MPLS, offer up to 13 Mpps forwarding capacity and 14.3 Gb/s of IPSec VPN encrypted throughput to ensure high performance with concurrent services. With the Open Application Platform module, the HPE Networking Comware Router Series MSR3000 offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches. The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly adapt to changing business requirements while delivering integrated concurrent services on a single, easy-to-manage platform.What is new supporting point:
Additional features such as ADVPN and hierarchical QoS.
New Serial, GbE and Gig-T SIC modules increase configuration flexibility.
Enhances security with built-in IPS and stateful firewall, with optional HPE IPS filter subscription.
High-density voice modules and channelized POS access to cover.
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Network | |
| MAC address table | 500000 entries |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Forwarding rate | 2.2 Mpps |
| Multicast support | Yes |
| VLAN support | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Memory | |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Performance | |
| Internal memory type | DDR3 |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Heat dissipation | 127 BTU/h |
| WAN connection | |
| SFP WAN | Yes |
| Ethernet WAN | Yes |
| 3G/4G USB modem compatibility | Yes |
| Mobile network | |
| 3G standards | HSPA, WCDMA |
| 4G standard | LTE |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| Smart Interface Card (SIC) slots quantity | 4 |
| Combo SFP ports quantity | 2 |
| WAN ports quantity | 4 |
| SFP module slots quantity | 2 |
| Protocols | |
| Routing protocols | BGP4, OSPF, RIP-2, RIPng, VRRP |
| Management protocols | SNMPv1, SNMPv2, SNMPv3 |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Technical details | |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Product colour | Black |
| Heat dissipation | 127 BTU/h |
| Security | |
| MAC address table | 500000 entries |
| Authentication method | TACACS+, RADIUS |
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES |
| Access Control List (ACL) | Yes |
| Features | |
| Internal memory type | DDR3 |
| Flash memory | 512 MB |
| Internal memory | 2048 MB |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Heat dissipation | 127 BTU/h |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Rack capacity | 1U |
| Power | |
| Power source type | AC |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 100 W |
| Power consumption (max) | 100 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 5000 m |
| Weight & dimensions | |
| Width | 43 mm |
| Depth | 439 mm |
| Height | 361 mm |
| Weight | 4.5 kg |
