Description

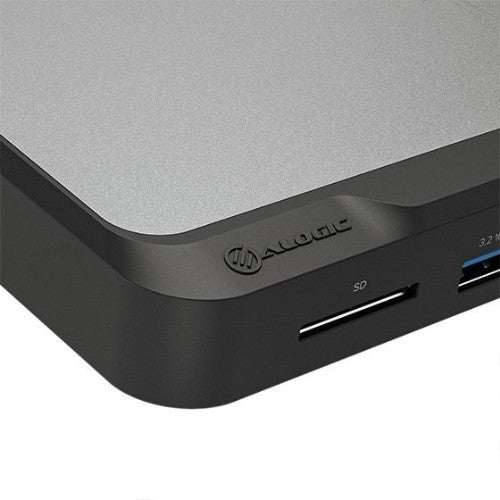

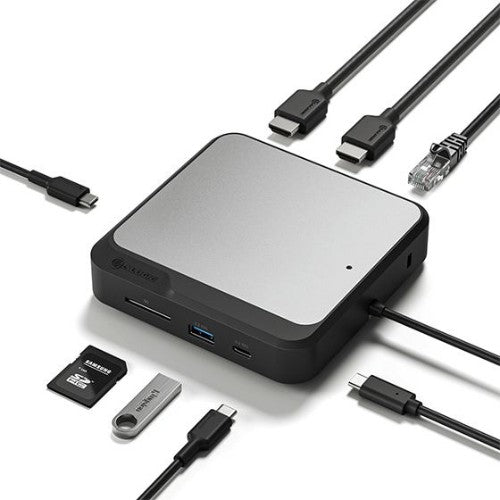

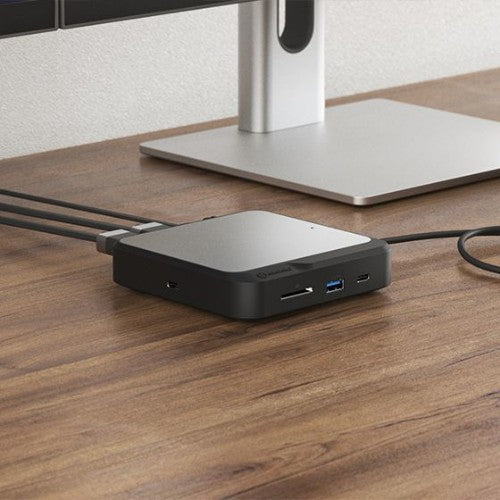

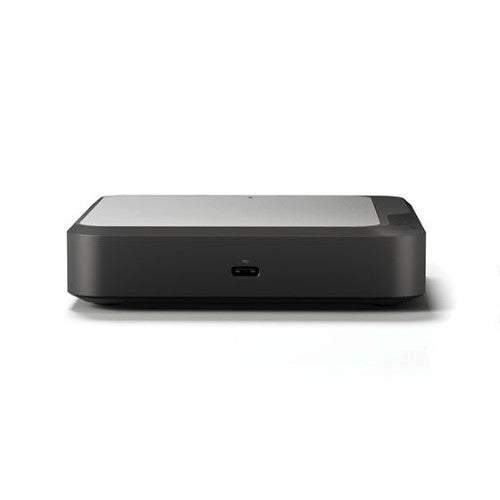

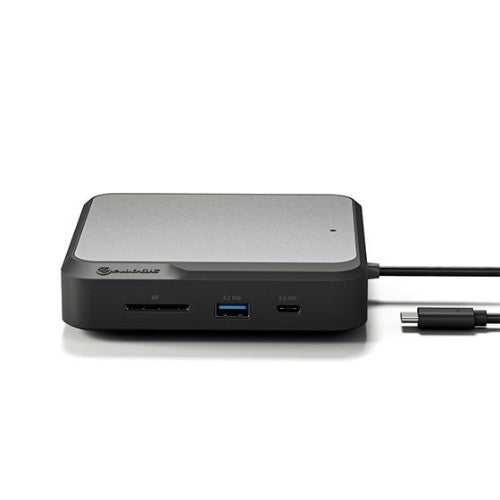

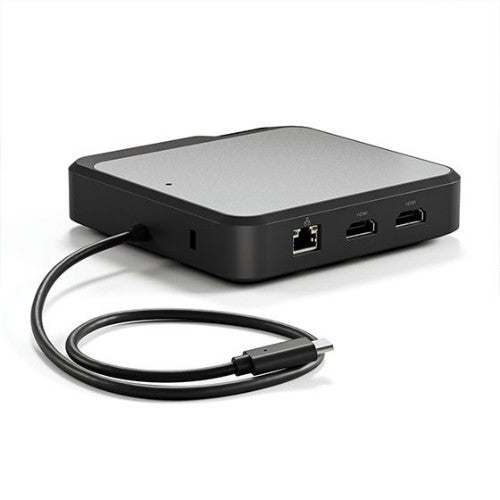

Dual 4K Universal Compact Docking Station – CH2 – HDMI Edition
ALOGIC’s Dual 4K Universal Compact Docking Station’s twin HDMI outputs enable you to connect two external displays at resolutions up to 4K.
The dock’s inbuilt DisplayLink technology ensures you experience the highest-possible screen resolutions for your computer monitor, regardless of your computer model, or whether you connect to USB-A or USB-C ports.
When you expand your screen real estate with the CH2, you have better oversight of your work. This oversight can improve your efficiency and productivity.
Comprehensive Connectivity for Your Desk
The CH2’s comprehensive suite of high-performing ports supports the versatile connectivity needs of homes, schools, and businesses. The dock’s USB-A [3.2 Gen 2, 10Gbps] and USB-C ports [3.2 Gen 2, 10Gbps] keep essential USB accessories such as external drives, scanners, keyboards, and mice humming.
Connect your laptop to the CH2 for up to 100W pass-through charging [when the CH2 is connected to an external power adapter], and connect to the Internet with Gigabit Ethernet when security and stability are paramount. The CH2 also features an SD 4.0/UHS-II Card Reader, so you can rapidly transfer your bulky multimedia libraries to and from the dock.
Passthrough Charging While You Work
The compact CH2 is built to fast-charge your laptop with up to 100W power delivery while you run multiple displays, USB accessories, and Ethernet, all over a single USB-C cable*. All you need to do is plug your laptop in when it’s time to get to work, and unplug when it’s time to take your laptop on the road.
*When connected to a host computer with USB-C ports that support USB Power Delivery, the CH2 will connect peripherals and charge the laptop over a single USB-C cable. USB-A enabled laptops can be charged from the dock using the ALOGIC DCAP-SPL USB-C Data + Power Splitter (available separately).
When you need your laptop for mobile work, the CH2 docks can also operate by connecting directly with your computer’s USB port [without an external power supply]. However, factor in that the docks’ USB-C ports are inactive in the absence of a power adapter connection, due to power constraints.
Key Features
- Supports two 4K displays
- Universally compatible with USB-C and USB-A laptops
- Comprehensive connectivity for key peripherals
- 100W power passthrough
- Gigabit Ethernet
- Lock slots to secure shared working environments
Description
Connect up to Two 4K DisplaysALOGIC’s Dual 4K Universal Compact Docking Station’s twin HDMI outputs enable you to connect two external displays at resolutions up to 4K.
The dock’s inbuilt DisplayLink technology ensures you experience the highest-possible screen resolutions for your computer monitor, regardless of your computer model, or whether you connect to USB-A or USB-C ports.
When you expand your screen real estate with the CH2, you have better oversight of your work. This oversight can improve your efficiency and productivity.
Comprehensive Connectivity for Your Desk
The CH2’s comprehensive suite of high-performing ports supports the versatile connectivity needs of homes, schools, and businesses. The dock’s USB-A [3.2 Gen 2, 10Gbps] and USB-C ports [3.2 Gen 2, 10Gbps] keep essential USB accessories such as external drives, scanners, keyboards, and mice humming.
Connect your laptop to the CH2 for up to 100W pass-through charging [when the CH2 is connected to an external power adapter], and connect to the Internet with Gigabit Ethernet when security and stability are paramount. The CH2 also features an SD 4.0/UHS-II Card Reader, so you can rapidly transfer your bulky multimedia libraries to and from the dock.
Passthrough Charging While You Work
The compact CH2 is built to fast-charge your laptop with up to 100W power delivery while you run multiple displays, USB accessories, and Ethernet, all over a single USB-C cable*. All you need to do is plug your laptop in when it’s time to get to work, and unplug when it’s time to take your laptop on the road.
*When connected to a host computer with USB-C ports that support USB Power Delivery, the CH2 will connect peripherals and charge the laptop over a single USB-C cable. USB-A enabled laptops can be charged from the dock using the ALOGIC DCAP-SPL USB-C Data + Power Splitter (available separately).
When you need your laptop for mobile work, the CH2 docks can also operate by connecting directly with your computer’s USB port [without an external power supply]. However, factor in that the docks’ USB-C ports are inactive in the absence of a power adapter connection, due to power constraints.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Microphone in | No |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 2 |
| Product colour | Black, Grey |
| Card reader integrated | Yes |
| Plug and Play | Yes |
| Data transfer rate | 10 Gbit/s |
| Compatible memory cards | SD |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Technical details | |
| Product colour | Black, Grey |
| Plug and Play | Yes |
| Data transfer rate | 10 Gbit/s |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Power | |
| Power source type | USB |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
| Weight & dimensions | |
| Weight | 320 g |
| Width | 120 mm |
| Depth | 120 mm |
| Height | 26 mm |
| Design | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black, Grey |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Interface adapters included | USB Type-C male - USB Type-A female |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
