i-tec USB 3.0 USB-C/Thunderbolt 3x Display Metal Nano Dock with LAN + Power Delivery 100 W

USB 3.0 USB-C/Thunderbolt 3x Display Metal Nano Dock with LAN + Power Delivery 100 W

Key Features

• High-performance travel docking station for up to three monitors simultaneously
• Dock is compatible with almost any current laptop (connects via USB 3.0, USB-C, USB4 or Thunderbolt™ 3/4 ports)
• HDMI 1 port supports high resolution up to 4K
• Native VGA port support for older displays or projectors
• 5x USB ports (1x USB-C, 1x USB 3.2 and 3x USB 2.0) allow you to easily connect your USB devices and peripherals
• SD/microSD slots for easy transfer of data from memory cards
• GLAN Ethernet supports network speeds of 10/100/1000 Mbps, providing a robust and high-speed internet connection

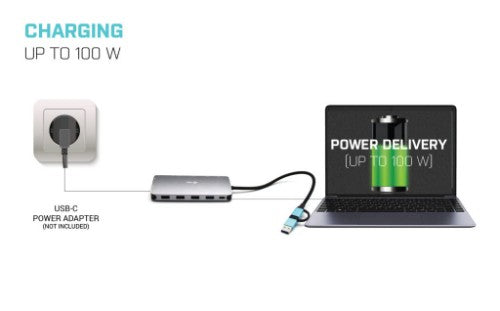

• The docking station supports up to 100W of power to a connected laptop or tablet

Description

A powerful yet small and portable docking station that supports up to three external monitors. The dock can be used with virtually any laptop as it supports connection to all common ports: USB 3.0, USB-C, USB4 and Thunderbolt” 3/4, while supporting all common current operating systems. However, connection to three monitors will only be possible with a laptop with a Thunderbolt 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode). The 5 USB ports, reliable and fast connection to the corporate network thanks to the integrated LAN port and native VGA support all make this docking station the ideal companion for professionals who are often on the road and need to connect even to older monitors and projectors. Of course, it supports charging your laptop or tablet (up to 100W). - Connect up to 3 external monitors* - Power delivery: up to 100 W - There are 2 HDMI* ports and one VGA port - 1x USB 3.2, 1x USB-C and 3x USB 2.0 allow you to easily connect your USB devices and - Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds - SD and microSD slots for easy data transfer from memory cards - Supports Windows 10/11, macOS, Android, Linux and ChromeOS *HDMI 1 port will only work when connected to a laptop with Thunderbolt 3/4, USB4, or USB-C port that supports video transfer (called USB-C DP Alt mode) If the dock is connected via USB 3.0, charging of laptops and tablets is not supported

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	2
VGA (D-Sub) ports quantity	1
Microphone in	No
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery up to	100 W
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Performance
Number of displays supported	3
Product colour	Silver
Card reader integrated	Yes
LED indicators	Yes
Data transfer rate	5 Gbit/s
Compatible memory cards	MicroSD (TransFlash), SD
Maximum refresh rate	60 Hz
Technical details
Product colour	Silver
Data transfer rate	5 Gbit/s
Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Power
Power source type	USB
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Other operating systems supported	Android
Indication
LED indicators	Yes
Weight & dimensions
Weight	122 g
Width	127 mm
Depth	60 mm
Height	18 mm
Package weight	140 g
Package width	190 mm
Package depth	98 mm
Package height	23 mm
Design
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Silver
LED indicators	Yes
Packaging data
Package weight	140 g
Package width	190 mm
Package depth	98 mm
Package height	23 mm

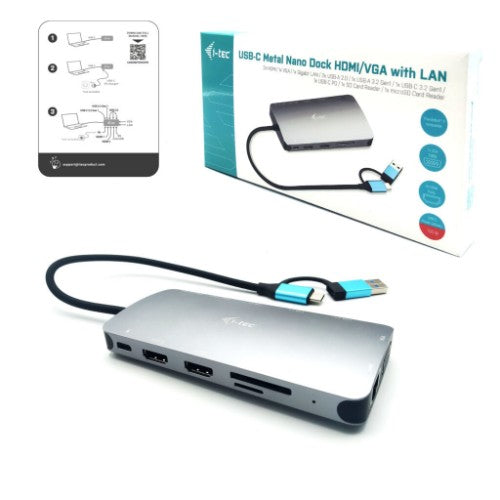

Packaging content
Quick start guide	Yes
