Pop-Out Flat Screen Wall Mount with Micro-Adjustment (VESA 200)
Key Features

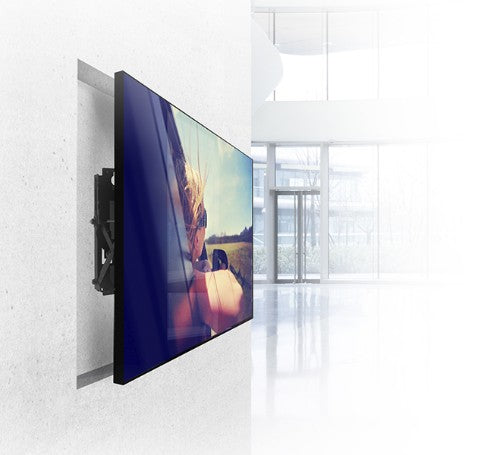

- Perfect solution for mounting screens into a recessed wall
- Can also be used to create videowall installations

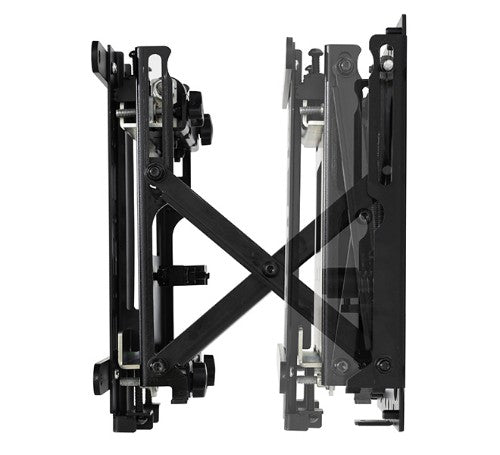

- Push to open / push to close system provides quick and easy service access

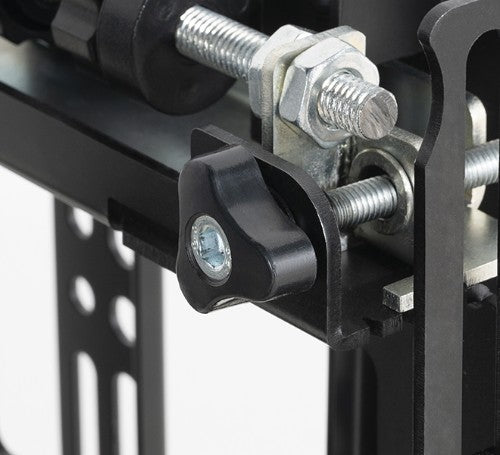

- Micro-adjustment of +/-6mm at each corner for seamless display alignment
- Suitable for landscape or portrait screen mounting

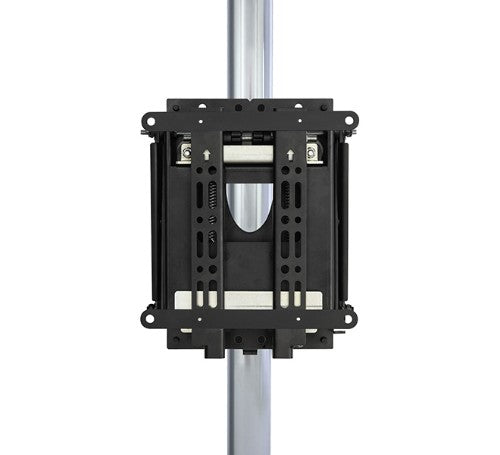

- Suitable for both wall or pole mounting
- Keyhole mounting for quick and easy installation
- Levelling screws allow adjustment of screen height
- Integrated locking mechanism prevents accidental pop-out of mount
- Integrated cable management
- 'Hook-on' installation with all mounting hardware included
Description

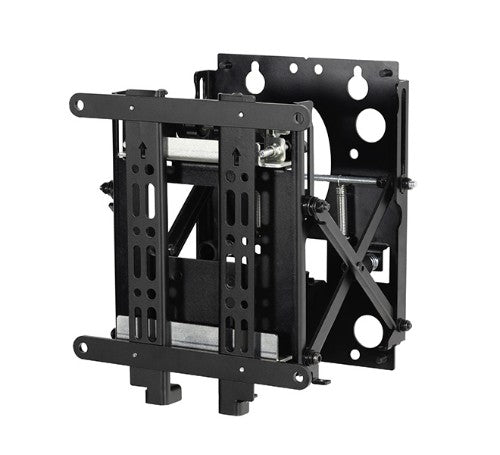

The BT8309 is designed to install small to medium screens into recessed walls. The pop-out mechanism allows for a flush to the wall installation while still allowing access to the rear of the screen for easy installation and service access. Tool-less micro-adjustment is included on each corner to allow screens to perfectly align to the recess and additional screens in a videowall installation. BT8309 also allows screens to be mounted in landscape or portrait orientation and is compatible with B-Tech's professional pole and collar system for pole-mounted installs.
Specifications
| Mounting |
|---|
| Panel mounting interface |
75 x 75,200 x 200 mm |
| Number of displays supported |
1 |
| Mounting type |
Wall |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
200 x 200 mm |
| Distance to the wall (max) |
7.3 cm |
| Maximum weight capacity |
25 kg |
| Maximum screen size |
106.7 cm (42") |
| Extension arm (max) |
19.1 cm |
| Ergonomics |
|---|
| Height adjustment |
Yes |
| Height adjustment range |
0 - 12 mm |
| Height adjustment type |
Manual |
| Design |
|---|
| Product colour |
Black |
| Technical details |
|---|
| Mounting type |
Wall |
| Distance to the wall (max) |
7.3 cm |
| Product colour |
Black |
| Logistics data |
|---|
| Products per master (outer) case |
4 pc(s) |
| Harmonized System (HS) code |
83024200 |
| Other features |
|---|
| Mounting type |
Wall |
