Description
SYSTEM X - Adjustable Height and Depth Rail Mounting Bracket
The BT8390-WFK6 is an adjustable wall bracket designed for the installation of dvLED video walls. As part of the System X Range, it is compatible with B-Tech's range of horizontal mounting rails and features both height and depth adjustment to give full, precise control over the install across every axis, no matter how uneven the wall surface is. Keyhole fixing points make installation quick and easy and the bracket is also compatible for mounting onto vertical columns and poles, meaning it can be used in floor stand applications as well as for wall mounted installations.
Key Features
- Designed to mount BT8390 horizontal rails and BT8393 vertical columns to walls and poles

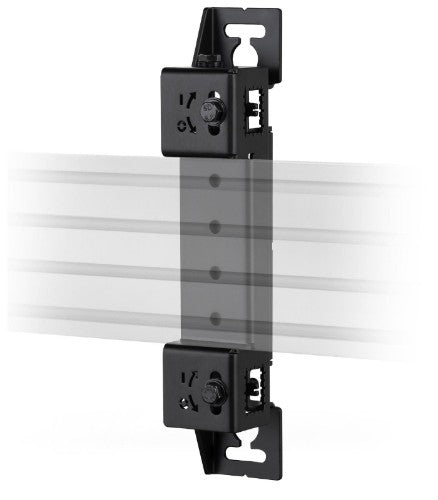

- Mounts the BT8390 horizontal rail just 37mm from the wall with a +/-10mm adjustable depth to ensure a flat to the wall installation

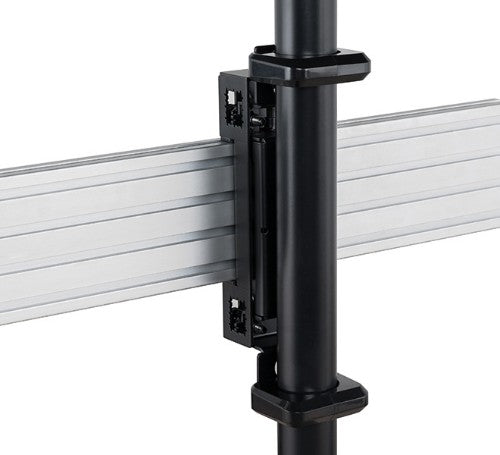

- BT8390-WFK6 can also be pole mounted using B-Tech accessory collars

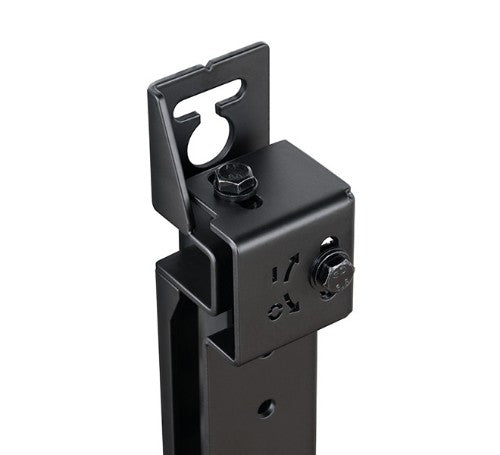

- Keyhole mounting for easy installation
- Micro-Adjustment of the height of the mounting rail with the supplied Hex Key allow for precision alignment

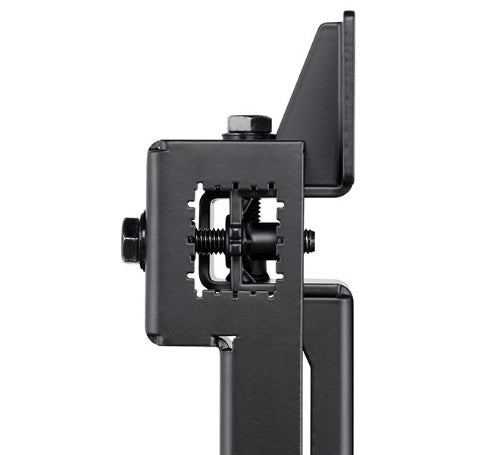

- Easy adjustment of the depth of the rails with a 13mm spanner ideal for counteracting uneven walls
- Integrated adjustment guides for straightforward alignment
- All mounting hardware included
Description
Ideal for uneven wallsThe BT8390-WFK6 is an adjustable wall bracket designed for the installation of dvLED video walls. As part of the System X Range, it is compatible with B-Tech's range of horizontal mounting rails and features both height and depth adjustment to give full, precise control over the install across every axis, no matter how uneven the wall surface is. Keyhole fixing points make installation quick and easy and the bracket is also compatible for mounting onto vertical columns and poles, meaning it can be used in floor stand applications as well as for wall mounted installations.
Specifications
| Mounting | |
|---|---|
| Product type | Rail module |
| Maximum weight capacity | 50 kg |
| Compatibility | BT8390, BT8393 |
| Product colour | Black |
| Certification | TUV |
| Features | |
| Product type | Rail module |
| Maximum weight capacity | 50 kg |
| Compatibility | BT8390, BT8393 |
| Product colour | Black |
| Certification | TUV |
| Housing material | Metal |
| Technical details | |
| Manual | Yes |
| Compatibility | BT8390, BT8393 |
| Product colour | Black |
| Certification | TUV |
| Maximum weight capacity | 50 kg |
| Compliance certificates | cTUVus |
| Weight & dimensions | |
| Width | 56 mm |
| Height | 310 mm |
| Depth | 59 mm |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Screws included | Yes |
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Certification | TUV |
| Compliance certificates | cTUVus |
| Logistics data | |
| Harmonized System (HS) code | 83024200 |
