Description
HDMI IP Video Extender, Receiver Unit for DS-55517
- Extends Full HD AV signals over CAT-6 cable to unlimited distances via the existing network infrastructure or using commercially available network switches
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 6, 6A, 7, 8 network cables
- IR interface enables remote control of the input source from the output screen
- HDCP 1.3
- Video bandwidth: 1.65 Gbps
Expand the HDMI IP Extender Set (DS-55517) with additional receiver units to display your AV content on multiple monitors at the same time. The set extends Full HD AV signals up to 120 m via a CAT6 network cable (point-to-point connection). In addition, you can use network switches and the individual receiver units (DS-55518) to distribute your video content to up to 253 displays via the existing network (IP connection) and extend it to an unlimited distance.
Key Features
- Use additional receiver units and your existing network infrastructure to display video content on up to 253 screens (IP connection)
- Extends Full HD AV signals over CAT-6 cable to unlimited distances via the existing network infrastructure or using commercially available network switches
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 6, CAT 6A, CAT 7, CAT 8 network cables
- IR interface enables remote control of the input source from the output screen
- HDCP 1.3
- Video bandwidth: 1.65 Gbps

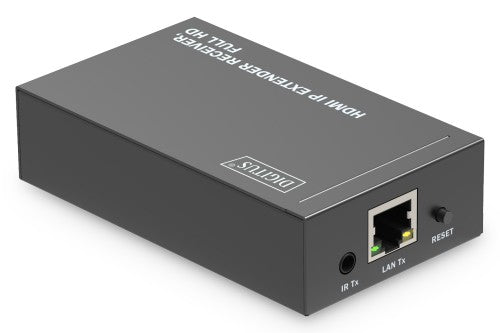

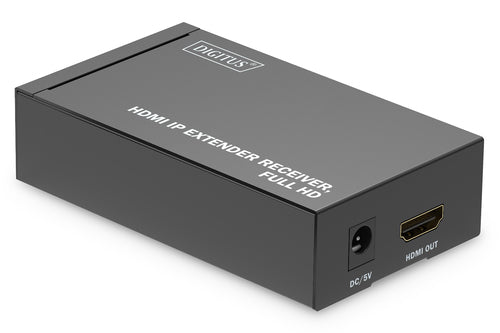

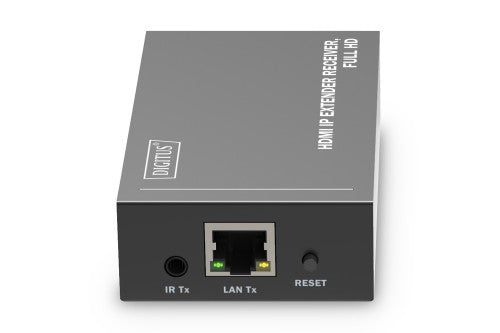

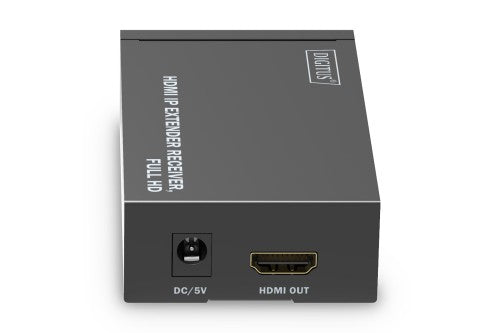

- Receiver unit connections:
- 1x HDMI output (4K/30Hz) - Output device connection
- 1x RJ45 input - CAT transmission cable connection
- 1x IR input - IR receiver connection
- 1x power supply input (DC 5V/2A) - external power supply connection
- Suitable for wall mounting
- Operating temperature: 0-50°
- Power consumption: 8W
- Compression: H.265
- Housing: Metal
- Dimensions (1 unit): L 10 x W 5.9 x H 2.5 cm
- Weight (1 unit): 165 g
- Color: black
Description
Use additional receiver units and your existing network infrastructure/network switches to display video content on up to 253 screens (IP connection)- Extends Full HD AV signals over CAT-6 cable to unlimited distances via the existing network infrastructure or using commercially available network switches
- Supports resolutions of up to 1080p/60Hz, Full HD
- Supports CAT 6, 6A, 7, 8 network cables
- IR interface enables remote control of the input source from the output screen
- HDCP 1.3
- Video bandwidth: 1.65 Gbps
Expand the HDMI IP Extender Set (DS-55517) with additional receiver units to display your AV content on multiple monitors at the same time. The set extends Full HD AV signals up to 120 m via a CAT6 network cable (point-to-point connection). In addition, you can use network switches and the individual receiver units (DS-55518) to distribute your video content to up to 253 displays via the existing network (IP connection) and extend it to an unlimited distance.
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Wall mountable | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6, Cat6a, Cat7, Cat8 |
| Maximum transfer distance | 120 m |
| Supported video modes | 1080p |
| LED indicators | Yes |
| Cable length | 1.5 m |
| Bandwidth | 1.65 Gbit/s |
| Product colour | Black |
| HDCP version | 1.3 |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Wall mountable | Yes |
| Maximum refresh rate | 60 Hz |
| Type | AV receiver |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6, Cat6a, Cat7, Cat8 |
| Maximum transfer distance | 120 m |
| Supported video modes | 1080p |
| Cable length | 1.5 m |
| Bandwidth | 1.65 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Country of origin | China |
| Package volume | 1653 cm³ |
| Ports & interfaces | |
| Remote (IR) input | 1 |
| RJ-45 input ports | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Power over Ethernet (PoE) | No |
| Input current | 2 A |
| Power consumption (typical) | 8 W |
| Operating voltage | 5 V |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Width | 59 mm |
| Package depth | 190 mm |
| Height | 25 mm |
| Depth | 100 mm |
| Package width | 145 mm |
| Package height | 60 mm |
| Weight | 165 g |
| Package weight | 425 g |
| Packaging data | |
| Package depth | 190 mm |
| Package width | 145 mm |
| Package height | 60 mm |
| Package weight | 425 g |
| Packaging content | |
| Mounting kit | Yes |
| Cables included | IR |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
