Description

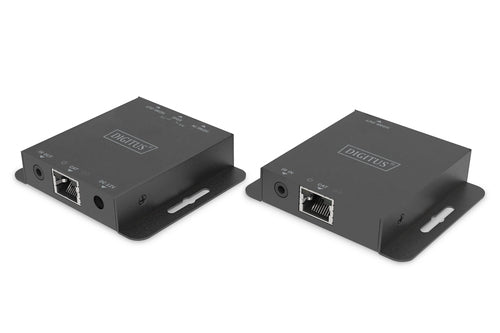

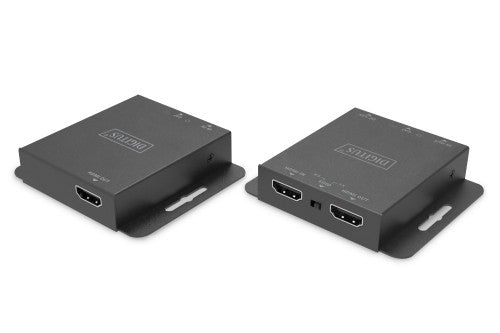

HDMI Extender Set, 4K/30Hz 70 m, PoC, IR
- Extends HDMI AV signals to a distance of up to 70 m
- Supports resolutions of up to 4K/30 Hz, 4:4:4
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- PoC (Power over Cable) - only the transmitter requires an external power supply unit
- HDMI loop-out / output - connection of a local monitor to the source device
- EDID copy function of the output screen on the receiver or on the HDMI loop out
- HDMI 1.4, HDCP 1.4, DVI 1.0
- IR interface enables remote control of the input source from the output screen
- Video bandwidth: 10.2 Gbps
The HDMI extender set extends Full HD AV signals to a distance of up to 70 m, 4K/30Hz signals can be extended to a distance of up to 40 m via a CAT6 (or higher) network cable. The transmitter unit has an HDMI loop out for connecting a local monitor. Thanks to PoC (Power over Cable), only the transmitter needs to be supplied with power. IR transmission allows the signal source to be controlled conveniently by remote control from the receiver (output screen). The scope of services also includes an EDID copy function of the output screen on the receiver or on the HDMI loop out, which can be selected using a switch.
Key Features
- Extends HDMI AV signals to a distance of up to 70 m
- Supports resolutions of up to 4K/30 Hz, 4:4:4
- Supports CAT 6, CAT 6A, CAT 7, CAT 8 network cables
- PoC (Power over Cable) - only the transmitter requires an external power supply unit
- HDMI loop-out / output - connection of a local monitor to the source device
- EDID copy function of the output screen on the receiver or on the HDMI loop out
- HDMI 1.4, HDCP 1.4, DVI 1.0
- IR transmission (unidirectional)
- Video bandwidth: 10.2 Gbps

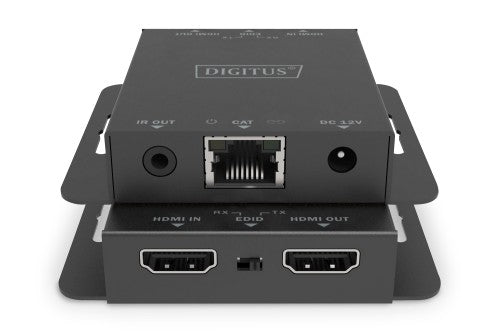

- Transmitter unit connections:
- 1x HDMI input (4K/30Hz) - Signal source connection
- 1x HDMI loop-out / output - connection of local monitor (source device)
- 1x RJ45 output - CAT transmission cable connection
- 1x IR output - Connection of IR transmitter
- 1x power supply input (DC 12V/1A) - external power supply connection
- 1x EDID switch

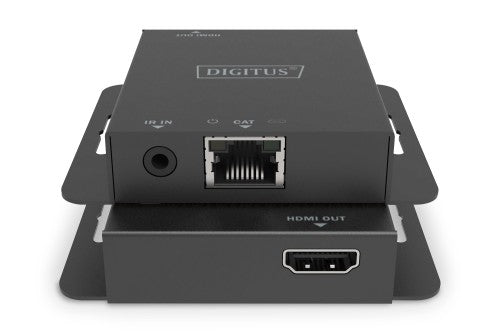

- Receiver unit connections:
- 1x HDMI output (4K/30Hz) - Output device connection
- 1x RJ45 input - CAT transmission cable connection
- 1x IR input - IR receiver connection
- Suitable for wall mounting
- ESD protection
- Operating temperature: 0-40°
- Power consumption: transmitter approx. 1.86 W, receiver approx. 0.87 W
- Compression: CSC (Color Space Compression)
- Housing: Metal
- Dimensions (1 unit): L 7.9 x W 6.9 x H 1.65 cm
- Weight (1 unit): 130 g
- Color: black
Description
Extends Full HD AV signals to a distance of up to 70 m, 4K/30Hz signals can be extended to a distance of up to 40 m via a CAT6 (or higher) network cable- Extends HDMI AV signals to a distance of up to 70 m
- Supports resolutions of up to 4K/30 Hz, 4:4:4
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- PoC (Power over Cable) - only the transmitter requires an external power supply unit
- HDMI loop-out / output - connection of a local monitor to the source device
- EDID copy function of the output screen on the receiver or on the HDMI loop out
- HDMI 1.4, HDCP 1.4, DVI 1.0
- IR interface enables remote control of the input source from the output screen
- Video bandwidth: 10.2 Gbps
The HDMI extender set extends Full HD AV signals to a distance of up to 70 m, 4K/30Hz signals can be extended to a distance of up to 40 m via a CAT6 (or higher) network cable. The transmitter unit has an HDMI loop out for connecting a local monitor. Thanks to PoC (Power over Cable), only the transmitter needs to be supplied with power. IR transmission allows the signal source to be controlled conveniently by remote control from the receiver (output screen). The scope of services also includes an EDID copy function of the output screen on the receiver or on the HDMI loop out, which can be selected using a switch.
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Wall mountable | Yes |
| Maximum refresh rate | 30 Hz |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6, Cat6a, Cat7, Cat8 |
| Maximum transfer distance | 70 m |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| Extended display identification data (EDID) | Yes |
| Electrostatic Discharge (ESD) protection | Yes |
| HDCP version | 1.4 |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Wall mountable | Yes |
| Maximum refresh rate | 30 Hz |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6, Cat6a, Cat7, Cat8 |
| Maximum transfer distance | 70 m |
| Bandwidth | 10.2 Gbit/s |
| Product colour | Black |
| Connectivity technology | Wired |
| Country of origin | China |
| Quantity per pack | 1 pc(s) |
| Package volume | 1695 cm³ |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 2 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (transmitter) (max) | 1.86 W |
| Power consumption (receiver) (max) | 0.87 W |
| Power consumption (transmitter) (max) | 1000 mA |
| Power consumption (receiver) (max) | 1000 mA |
| Operating voltage (transmitter) | 12 V |
| Operating voltage (receiver) | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Receiver weight | 130 g |
| Transmitter weight | 130 g |
| Transmitter dimensions (WxDxH) | 69 x 79 x 16.5 mm |
| Receiver dimensions (WxDxH) | 69 x 79 x 16.5 mm |
| Package depth | 113 mm |
| Package width | 200 mm |
| Package height | 75 mm |
| Package weight | 550 g |
| Packaging data | |
| Package depth | 113 mm |
| Package width | 200 mm |
| Package height | 75 mm |
| Package weight | 550 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | IR |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 365 mm |
| Master (outer) case gross weight | 16.5 kg |
| Master (outer) case volume | 61320 cm³ |
| Products per master (outer) case | 30 pc(s) |
| UK Trade Tariff code | 85176200 |
