Description

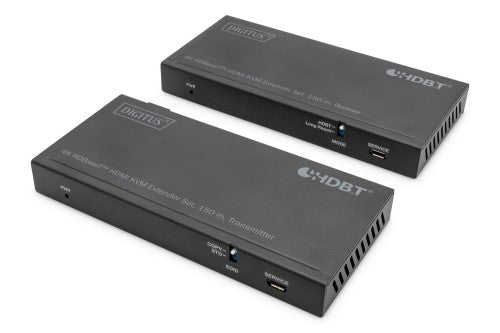

HDBaseT KVM Extender Set, 150 m 4K/60Hz, USB 2.0, PoC, IR, black
- Supports HDBaseT™ 2.0 via CAT6A/7/8 cable up to 100m
- Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
- Transmission distance - UHD (4K/60Hz): 120 m (max.)
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- 2x USB 2.0 ports on the receiver for connecting e.g. webcam, data carrier, touch panel and mouse & keyboard.
- Touch display support / Touch panel back control
- PoC (Power over Cable) - only one unit requires an external power supply unit
- EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
- Bi-directional IR signal transmission
The HDBaseT™ 2.0 HDMI KVM Extender Set enables uncompressed and high-resolution AV signal transmission over long distances via a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit needs to be powered with an external power supply unit. The receiver unit has two USB 2.0 ports for connecting e.g. webcam, data carrier and mouse & keyboard. Touch displays are also supported; thanks to the touch panel back control, the signal source can also be controlled using finger gestures. Bi-directional IR transmission is also part of the scope of services.
Key Features
- Supports HDBaseT™ 2.0 via CAT6A/7/8 cable up to 100m
- Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
- Transmission distance - UHD (4K/60Hz): 120 m (max.)
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- HDMI 2.0b / HDCP 2.2
- USB 2.0
- 2x USB 2.0 ports on the receiver for connecting e.g. webcam, data carrier and mouse & keyboard.
- Touch display support / Touch panel back control
- HDR, HDR10, HDR10+, DolbyVision, HLG
- PoC (Power over Cable) - only one unit requires an external power supply unit
- EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
- Bi-directional IR signal transmission

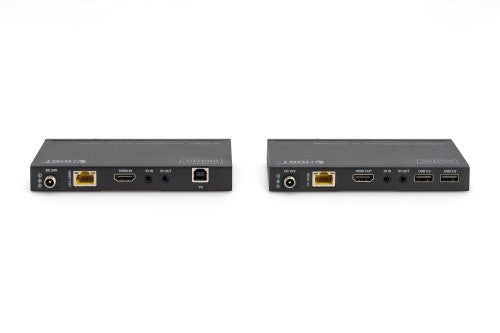

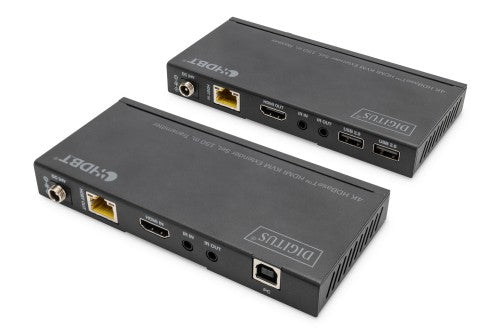

- Transmitter unit connections:
- 1x HDMI input (4K/60Hz) - Signal source connection
- 1x RJ45 (HDBaseT™) output - CAT transmission cable connection
- 1x IR input for receiving remote control signals
- 1x IR output to control the source device
- 1x USB-B (2.0) - PC connection (signal source) for using the KVM function
- 1x power supply input (DC 24V/1A), screw connector - external power supply connection
- 1x Micro USB input - Service/FW update
- 1x EDID switch
- Receiver unit connections:
- 1x HDMI output (4K/60Hz) - Output device connection
- 1x RJ45 input - CAT transmission cable connection
- 2x USB-A (2.0) - connection of e.g. webcam, data carrier, touch panel and mouse & keyboard
- Suitable for wall mounting
- ESD protection
- Operating temperature: 0-40°
- Power consumption: approx. 13.2W
- Housing: Metal
- Dimensions (1 unit): L 6.5 x W 14 x H 1.8 cm
- Weight: Transmitter 245 g / Receiver 249 g
- Color: black
Description
The HDBaseT™ 2.0 Extender Set enables uncompressed and high-resolution AV signal transmission over long distances and offers KVM functionality (mouse & keyboard connection)- Supports HDBaseT™ 2.0 via CAT6A/7/8 cable up to 100m
- Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
- Transmission distance - UHD (4K/60Hz): 120 m (max.)
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- 2x USB 2.0 ports on the receiver for connecting e.g. webcam, data carrier, touch panel and mouse & keyboard.
- Touch display support / Touch panel back control
- PoC (Power over Cable) - only one unit requires an external power supply unit
- EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
- Bi-directional IR signal transmission
The HDBaseT™ 2.0 HDMI KVM Extender Set enables uncompressed and high-resolution AV signal transmission over long distances via a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit needs to be powered with an external power supply unit. The receiver unit has two USB 2.0 ports for connecting e.g. webcam, data carrier and mouse & keyboard. Touch displays are also supported; thanks to the touch panel back control, the signal source can also be controlled using finger gestures. Bi-directional IR transmission is also part of the scope of services.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat6a, Cat7, Cat8 |
| Product colour | Black |
| Material | Metal |
| Country of origin | China |
| Easy to install | Yes |
| USB 2.0 ports quantity | 5 |
| USB data transfer rates | 480 Mbit/s |
| Maximum refresh rate | 60 Hz |
| Transmitter | |
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| Number of displays supported | 1 |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 5 |
| USB data transfer rates | 480 Mbit/s |
| USB port type | USB Type-A |
| RJ-45 ports quantity | 2 |
| HDMI version | 2.0b |
| Power | |
| AC adapter output voltage | 24 V |
| AC adapter output current | 1 A |
| Power consumption (transmitter) (max) | 13.2 W |
| Weight & dimensions | |
| Transmitter width | 14 cm |
| Transmitter depth | 6.5 cm |
| Transmitter height | 1.8 cm |
| Transmitter weight | 245 g |
| Receiver width | 14 cm |
| Receiver depth | 6.5 cm |
| Receiver height | 1.8 cm |
| Receiver weight | 249 g |
| Package width | 245 mm |
| Package depth | 185 mm |
| Package height | 75 mm |
| Package weight | 1.09 kg |
| Packaging data | |
| Package width | 245 mm |
| Package depth | 185 mm |
| Package height | 75 mm |
| Package weight | 1.09 kg |
| AC adapter included | Yes |
| Cables included | IR, USB |
| Manual | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | IR, USB |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Maximum resolution | 3840 x 2160 pixels |
| Package volume | 3399.38 cm³ |
| Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85176200 |
