Description

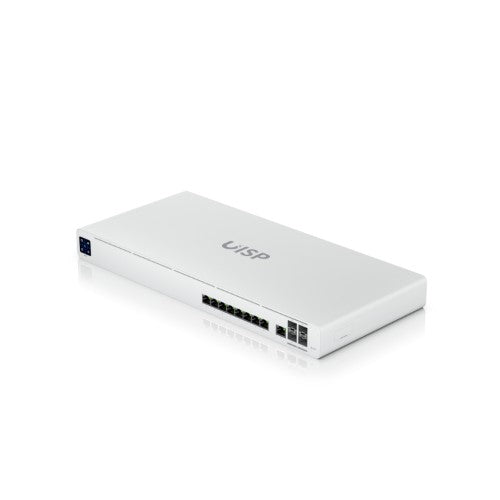

UISP Router Pro, 9x GbE RJ-45, 1x WAN, 4x 10G SFP+, Bluetooth, 1.3" touchscreen LCM display, SGCC steel, polycarbonate/ABS
Key Features
- (9) GbE RJ45 ports
- (4) 10G SFP+ ports
- Integrated Layer 2 switch
- Up to 9,500 Mbps NAT throughput
- Traffic shaping functionality and automated customer suspension
- Firewall and OSPF routing
- Additional Power TransPort input for DC redundancy
Description
10 GbE router designed for ISP applications.Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Network | |
| Network address translation (NAT) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Throughput | 9.5 Gbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Memory | |
| Internal memory | 4096 MB |
| Performance | |
| Storage media | eMMC |
| Internal storage capacity | 16 GB |
| Internal memory type | DDR4 |
| Internal memory | 4096 MB |
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| Processor model | ARM Cortex-A57 |
| WAN connection | |
| SFP WAN | No |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Traffic shaping | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 8 |
| SFP+ module slots quantity | 4 |
| WAN ports quantity | 1 |
| Technical details | |
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| LED indicators | Activity, Link, Speed |
| Product colour | Stainless steel |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Security | |
| Network address translation (NAT) | Yes |
| Firewall | Yes |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Packaging content | |
| AC adapter included | Yes |
| Features | |
| Storage media | eMMC |
| Internal storage capacity | 16 GB |
| Internal memory type | DDR4 |
| Internal memory | 4096 MB |
| Built-in processor | Yes |
| Processor frequency | 1700 MHz |
| Processor manufacturer | ARM |
| Processor model | ARM Cortex-A57 |
| Design | |
| Housing material | Polycarbonate (PC), Steel, ABS |
| LED indicators | Activity, Link, Speed |
| Product colour | Stainless steel |
| Built-in display | Yes |
| Display type | LCM |
| Display diagonal | 3.3 cm (1.3") |
| Power | |
| Power source type | AC, DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply | 60 W |
| Input current | 1.5 A |
| Power consumption (max) | 50 W |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 200 mm |
| Height | 43.7 mm |
| Weight | 3.3 kg |
| Packaging data | |
| AC adapter included | Yes |
