Description

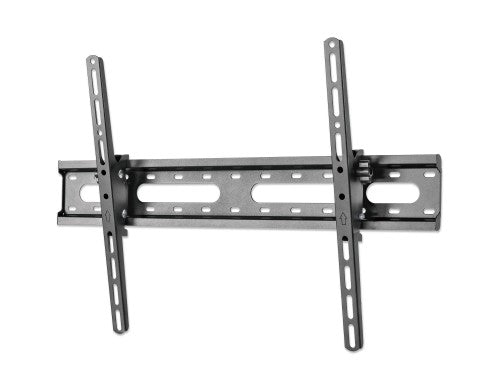

Wall Mount for TV & Monitors (Tiltable), For screens 37" to 65", VESA compatability: all between 200x200mm and 600x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 45kg, Black, Bracket
The Manhattan Tilting TV Wall Mount safely holds your TV and offers a tool-free -12 to 12° tilt adjustment with the turn of a knob for optimized views. Constructed of high-quality, powder-coated steel, it fits flat and curved LCD, LED or plasma TVs up to 70"" and weighing up to 45 kg (100 lbs.). This TV mount offers VESA compliance up to 600x400, and it's great for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Key Features
- Supports one 37"" to 70"" TV up to 45 kg (100 lbs.)

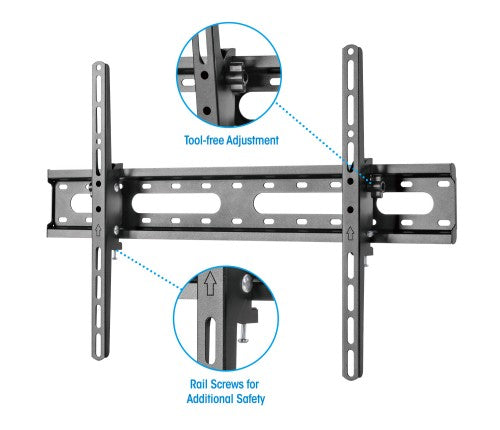

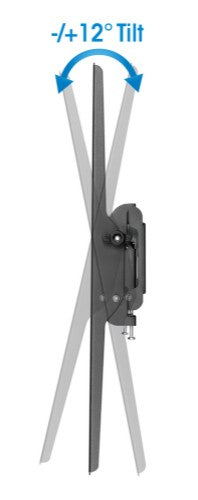

- Optimized views with -12 to 12° tilt and tool-free adjustment
- Holds TV only 53 mm (2 in.) from wall
- Heavy-duty steel construction with powder coating
- Includes attachable bubble level
- Rail screws to hold the TV in place for an additional layer of safety
- Meets VESA standards 200x200 to 600x400 e.g. 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400
Description
TV Tilting Wall Mount - an adjustable mounting bracket that puts displays in the right perspective and avoids annoying glareThe Manhattan Tilting TV Wall Mount safely holds your TV and offers a tool-free -12 to 12° tilt adjustment with the turn of a knob for optimized views. Constructed of high-quality, powder-coated steel, it fits flat and curved LCD, LED or plasma TVs up to 70"" and weighing up to 45 kg (100 lbs.). This TV mount offers VESA compliance up to 600x400, and it's great for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 94 cm (37") |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400 |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 177.8 cm (70") |
| Maximum weight capacity | 45 kg |
| Ergonomics | |
| Tilt angle range | -12 - 12° |
| Tilt adjustment | Yes |
| Technical details | |
| Number of displays supported | 1 |
| Product colour | Black |
| Mounting type | Wall |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Packaging content | |
| Mounting kit | Yes |
| Manual | Yes |
| Packaging content | Tilting TV Wall Mount Attachable bubble level Installation hardware with instructions |
| Weight & dimensions | |
| Width | 663 mm |
| Height | 53 mm |
| Weight | 1.45 kg |
| Depth (max) | 42 cm |
| Packaging data | |
| Package width | 105 mm |
| Package depth | 650 mm |
| Package height | 50 mm |
| Package type | Box |
| Package weight | 1.62 kg |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 230 mm |
| Master (outer) case length | 670 mm |
| Master (outer) case height | 285 mm |
| Master (outer) case gross weight | 17.7 kg |
| Products per master (outer) case | 10 pc(s) |
| Other features | |
| Mounting type | Wall |
