Description

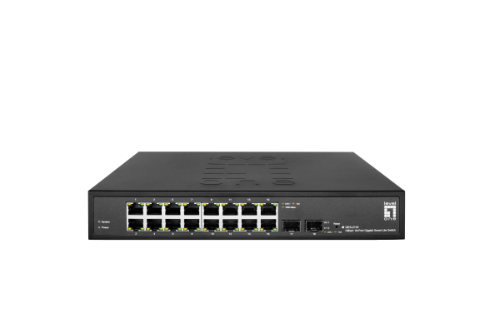

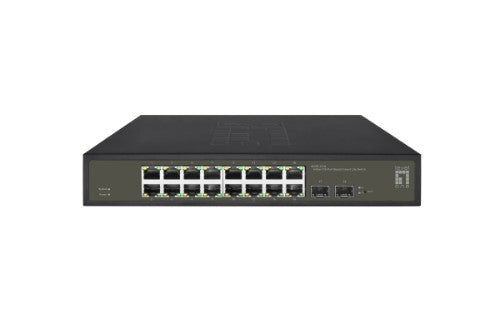

Hilbert 18-Port Gigabit Smart Lite Switch, 16 x Gigabit RJ45, 2 x Gigabit SFP
The LevelOne GES-2118 provides high HW performance and environment flexibility for Enterprises. GES-2118 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
Description
The LevelOne GES-2118 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2118 delivers 16 (10M/100M/1G) RJ45 ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.The LevelOne GES-2118 provides high HW performance and environment flexibility for Enterprises. GES-2118 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Network | |
| IGMP snooping | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| 10G support | No |
| Virtual LAN features | Tagged VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Virtual LAN features | Tagged VLAN |
| Data transmission | |
| Number of VLANs | 32 |
| Jumbo frames | 9000 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 36 Gbit/s |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 4.1 MB |
| Mean time between failures (MTBF) | 43800 h |
| Flash memory | 2 MB |
| Fanless | Yes |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 43800 h |
| Rack mounting | Yes |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet height (air) | 182.4 cm |
| Master (outer) cases per pallet (air) | 12 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Security | |
| IGMP snooping | Yes |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | UKCA, FCC Class A |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Flash memory | 2 MB |
| Design | |
| Country of origin | China |
| Product colour | Black |
| LED indicators | Activity, Link, Power |
| Certification | UKCA, FCC Class A |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Activity, Link, Power |
| Power | |
| Power consumption (max) | 15 W |
| Surge protection voltage | 8 kV |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Surge protection | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 51.18 BTU/h |
| Weight & dimensions | |
| Width | 271 mm |
| Depth | 181.5 mm |
| Height | 44.5 mm |
| Weight | 1.08 kg |
| Packaging data | |
| Package type | Box |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Package width | 350 mm |
| Package depth | 267 mm |
| Package height | 89 mm |
| Package weight | 1.68 kg |
| Cables included | AC |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 560 mm |
| Master (outer) case gross weight | 17.8 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case net weight | 1 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Other features | |
| Country of origin | China |
