Description

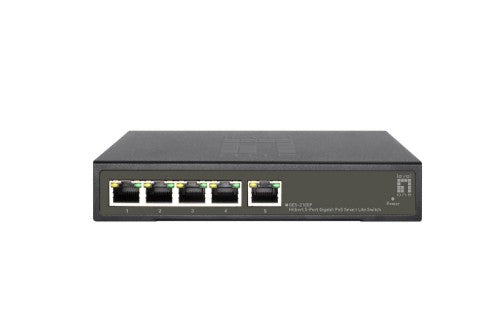

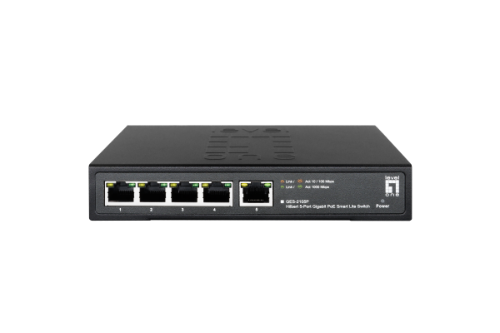

Hilbert 5-Port Gigabit PoE Smart Lite Switch, 802.3at/af PoE, 4 PoE Outputs, 60W PoE Power Budget
The LevelOne GES-2105P provides high HW performance and environment flexibility for Enterprises. GES-2105P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
Description
The LevelOne GES-2105P Hilbert gigabit PoE smart lite switch is a next-generation Ethernet Switch offering powerful better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via copper connections. GES-2105P delivers 5 (10M/100M/1G) RJ45 with 4 PoE+ (Support 802.3at/af, and total up to 60W) ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.The LevelOne GES-2105P provides high HW performance and environment flexibility for Enterprises. GES-2105P is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| IGMP snooping | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Virtual LAN features | Tagged VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Virtual LAN features | Tagged VLAN |
| Data transmission | |
| Number of VLANs | 32 |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Number of queues | 4 |
| Jumbo frames support | Yes |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Auto-negotiation | Yes |
| Mean time between failures (MTBF) | 43800 h |
| Flash memory | 2 MB |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 43800 h |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet height (air) | 158.4 cm |
| Master (outer) cases per pallet (air) | 18 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Security | |
| IGMP snooping | Yes |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | UKCA, FCC Class A |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Flash memory | 2 MB |
| Design | |
| Country of origin | China |
| Product colour | Black |
| LED indicators | Yes |
| Certification | UKCA, FCC Class A |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 65 W |
| Power supply included | Yes |
| Surge protection voltage | 8 kV |
| Input voltage | 54 V |
| Input current | 1.2 A |
| Surge protection | Yes |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 23.88 BTU/h |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 95 mm |
| Height | 29 mm |
| Weight | 400 g |
| Packaging data | |
| AC adapter included | Yes |
| Package type | Box |
| Quick start guide | Yes |
| Package width | 310 mm |
| Package depth | 230 mm |
| Package height | 65 mm |
| Package weight | 920 g |
| Cables included | AC |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Master (outer) case width | 350 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 480 mm |
| Master (outer) case gross weight | 9.8 kg |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case net weight | 600 g |
| Other features | |
| Input voltage | 54 V |
| Country of origin | China |
| Packaging content | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC |
