43" - 85", max. 68 kg, max. 863 x 450 mm, +/- 10° Tilt, Black
Key Features
- Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included

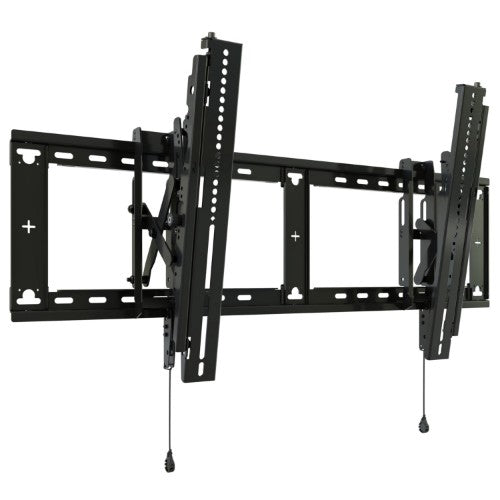

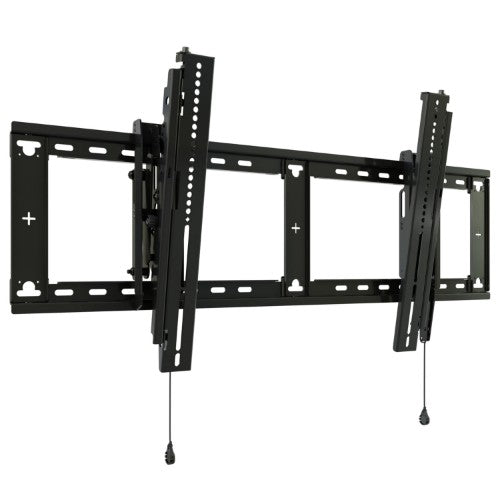

- Display can be tilted 10° forward or back to set the optimal viewing angle – especially useful for large screens
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 863 x 450 mm
- Rigid wall plate supports up to 150 lbs (68 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent locking option to secure the screen in place with padlock or steel cable (not included)
- UL and TUV safety standards approved
Description

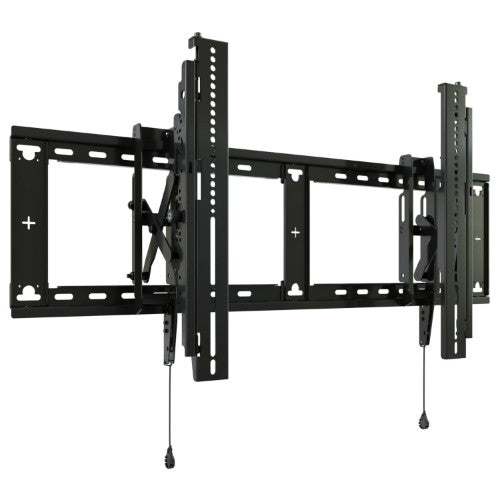

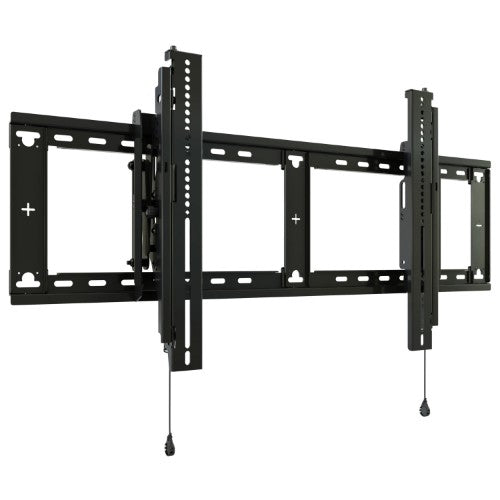

The Fit series RLXT3 is a large extending tilt display wall mount for 43” to 85” typical display sizes and supports mounting patterns up to 863 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 150 lbs (68 kg), minimum 2.67” (68 mm) depth up to 6” (152 mm) when fully extended away from the wall, 10° forward and back tilt, and UL and TUV safety standard approvals.
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
109.2 cm (43") |
| Number of displays supported |
1 |
| Maximum VESA mount |
863 x 450 mm |
| Maximum screen size |
2.16 m (85") |
| Maximum weight capacity |
68 kg |
| Ergonomics |
|---|
| Height adjustment |
Yes |
| Tilt angle range |
-10 - 10° |
| Height adjustment type |
Manual |
| Tilt adjustment |
Yes |
| Technical details |
|---|
| Number of displays supported |
1 |
| Product colour |
Black |
| Mounting type |
Wall |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
965 mm |
| Height |
487 mm |
| Depth (min) |
6.8 cm |
| Depth (max) |
6.8 cm |
| Packaging data |
|---|
| Package weight |
9.6 kg |
| Quantity per pack |
1 pair(s) |
| Other features |
|---|
| Mounting type |
Wall |
